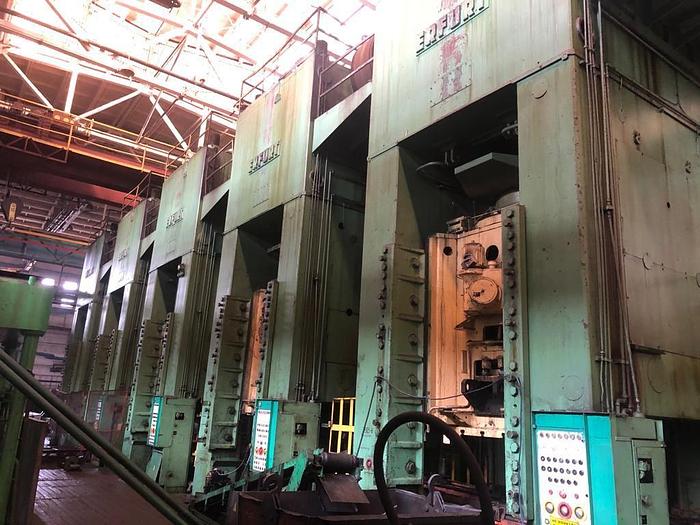

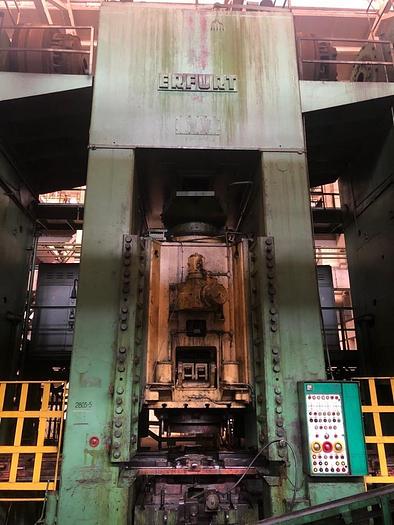

1250 tons Press Trimming WMW Erfurt PKZI1250/1600

Capacity : 1250 tons,

Slide stroke : 500 mm,

Number of stroke : 14,

Slide adjustment : 315 mm,

Shut height : 1250 mm

Distance between columns : 1600 mm,

Drawing depth : 200 mm,

Thickness of the sub-stamp plate : 280 mm,

Main Dimensions :

Table size : 1600 x 1800 mm,

Ram size : 1530 x 1800 mm,

Hole in the table : 1100 x 1100 mm,

Ejector cushion stroke : 200 mm,

Ejector stroke : 200 mm,

Electric motor power for press drive : 125 kW

Adjustment motor : 7.5 kW

Overall dimensions : 5850 x 3100 x 8950

Total weight : 195 tons

With Hydraulic Overload System

Quantity no.: 5 pcs.
