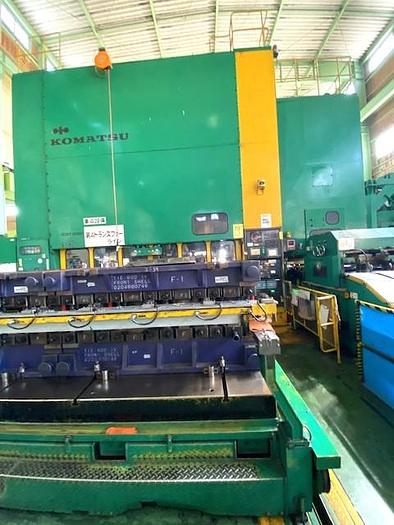

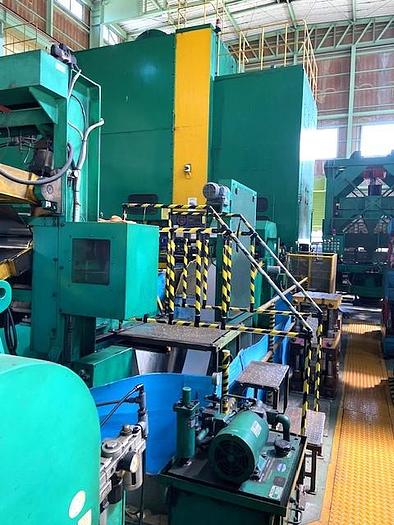

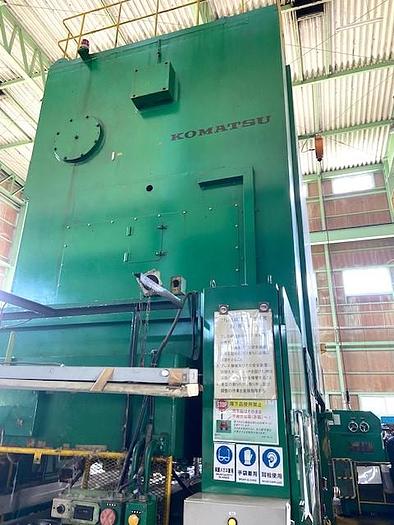

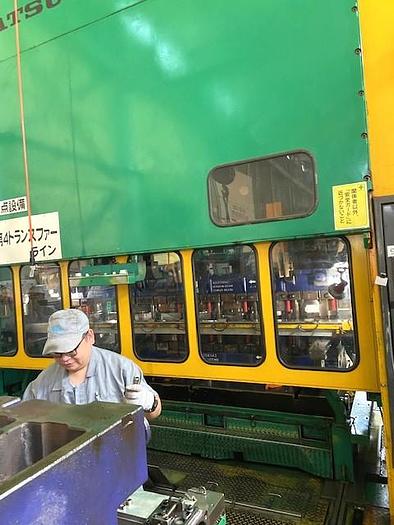

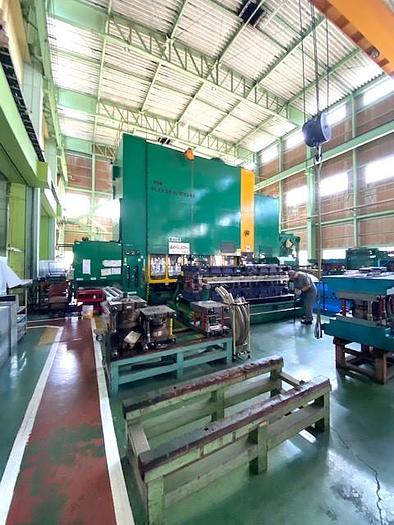

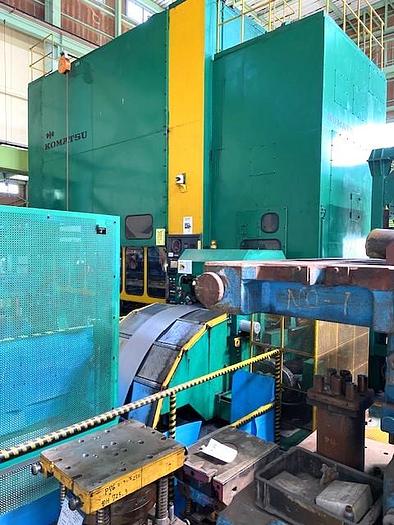

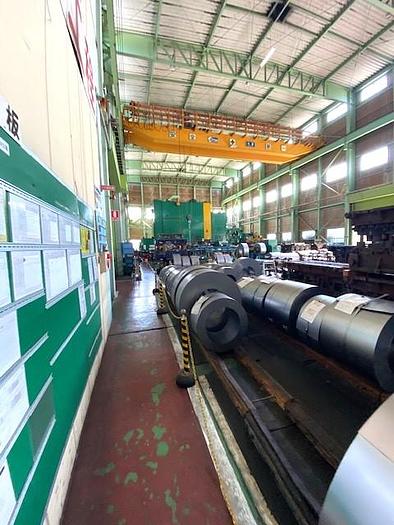

800 tons Transfer Press Line Komatsu

800 ton Komatsu Transfer Press, together with a Blanking Press and Uncoiler Leveller Feeder Unit

Capacity : 800 tons,

Stages : 8,

Stroke : 600 mm,

Stoke per min. : 11 - 22,

Bolster : 3600 x 1400 mm,

Slide : 3600 x 1400 mm,

Die Height : 950 mm,

Slide Adjust : 150 mm,

Feed Stroke : 450 mm,

Clamp Stroke : 150 mm,

List Stroke : 100 mm,

Feed Bar Width : 600 mm,

Die Cushion No 1 - 8,

Capacity : 10 tons,

Stroke : 170 mm,

Pad : 350 mm,

Slide Knockout

Capacity : 5 tons,

Stroke : 170 mm,

Blanking Press

Make : Komatsu

Capacity : 150 tons,

Stoke per min. : 11 - 20,

Die Height : 370 mm,

Slide Adjust : 100 mm,

Bolster : 1300 x 1100 mm,

Slide : 1300 x 1100 mm

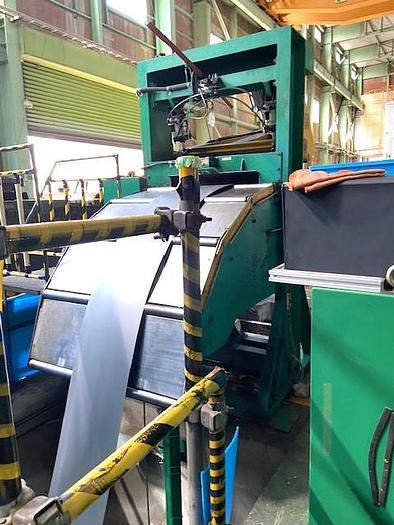

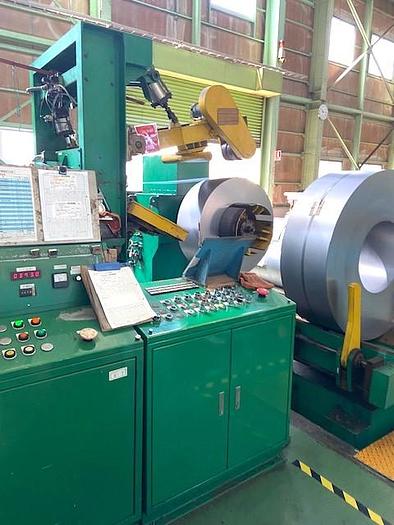

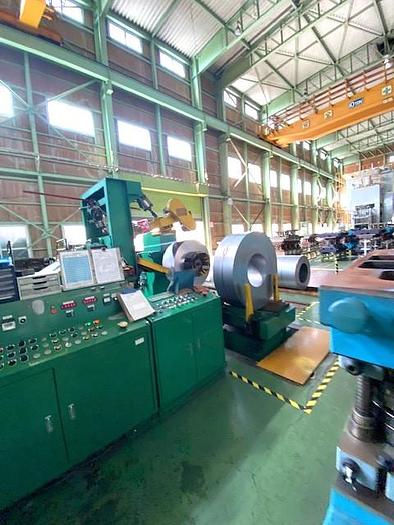

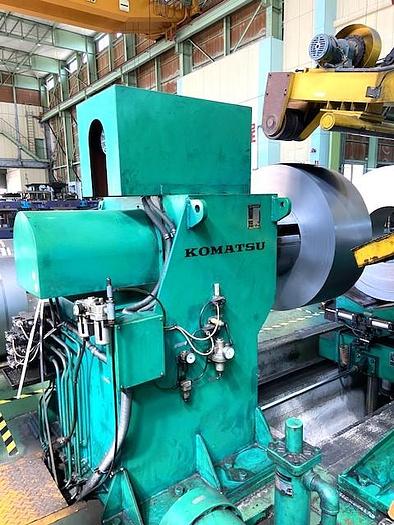

Uncoiler Leveller Feeder

Make : Sonoruka,

Coil Weight : 4000 kgs,

Coil Diameter : 1200 mm,

Coil Diameter (Internal) : 508 mm,

Material Thickness : 0.6 - 3.2 mm,

Material Width : 200 - 720 mm.
