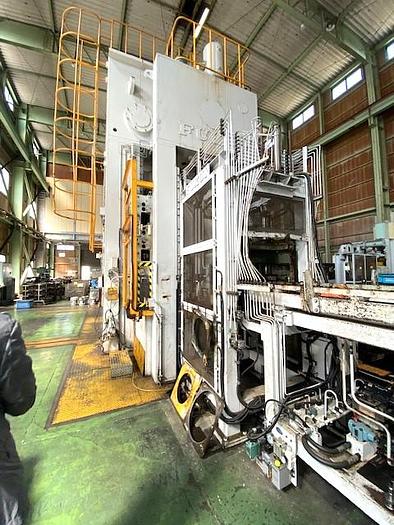

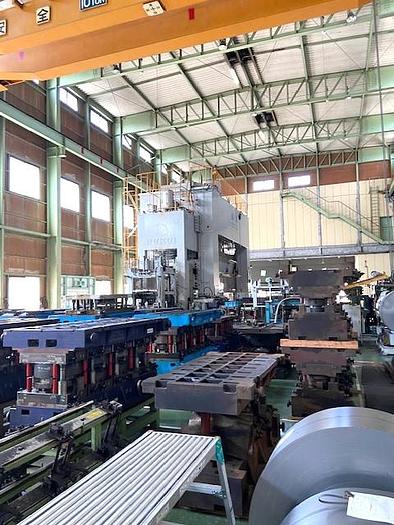

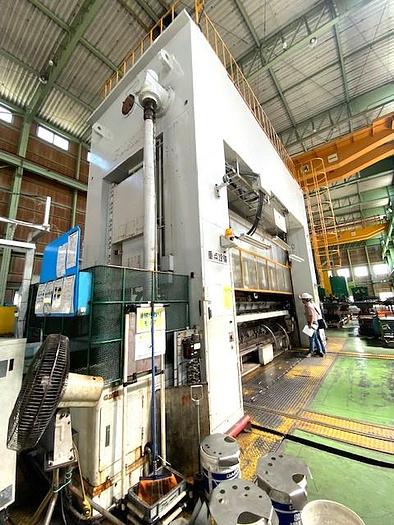

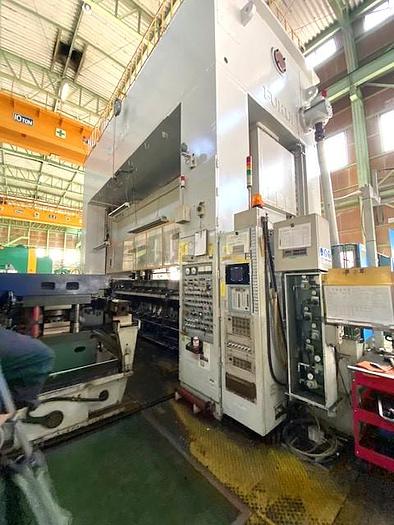

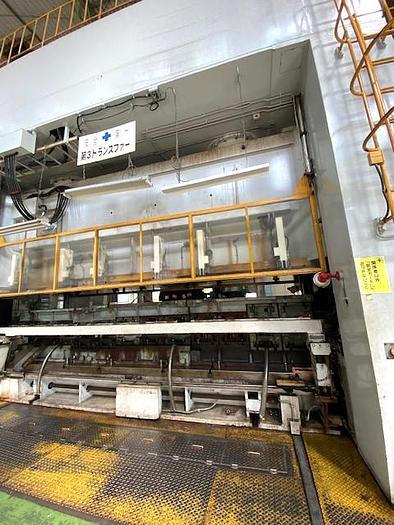

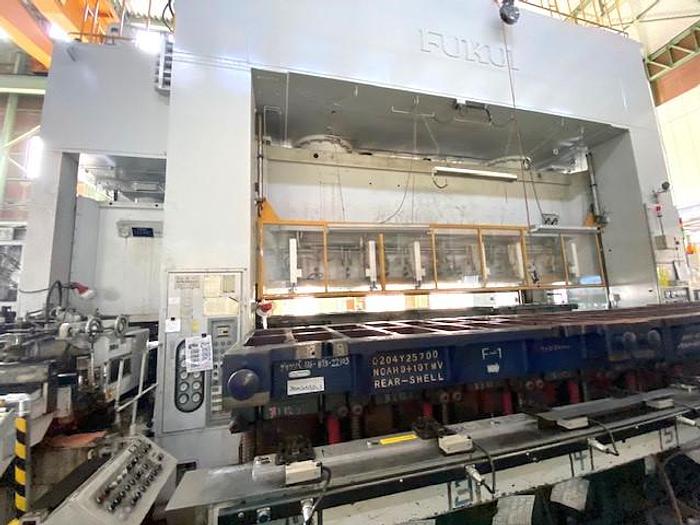

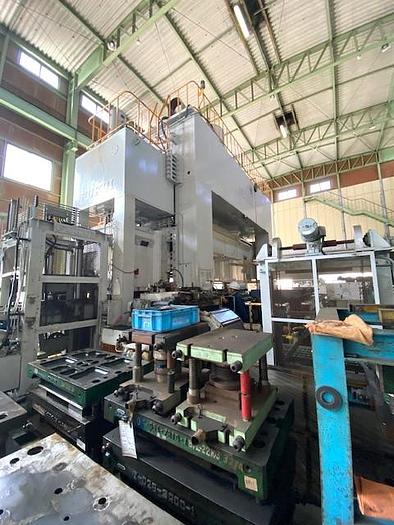

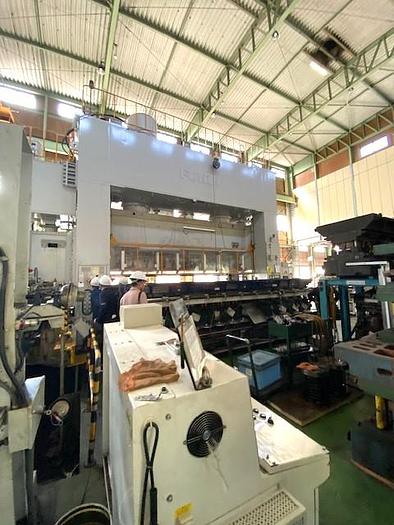

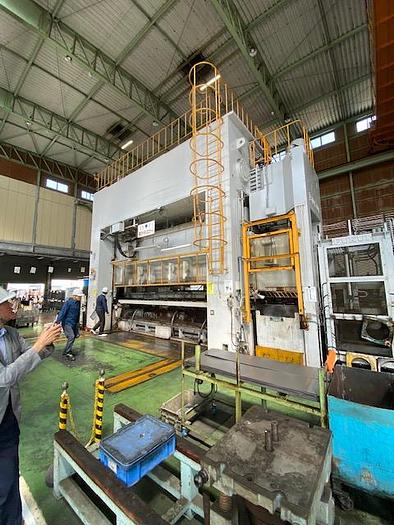

800 tons Transfer Press Line Fukui
Specifications
| Manufacturer | Fukui |
| Condition | Used |
| Stock Number | MA2755 |
| Item condition | Good condition |
| Capacity tons | 800 |
Description
800 ton Fukui Transfer Press, together with a Blanking Press and Uncoiler Leveller Feeder Unit
Capacity : 800 tons,
Stations : 12,
Stroke : 600 mm,
Stoke per min. : 10 - 25,
Bolster : 5400 x 1200 mm,
Slide : 5400 x 1200 mm,
Die Height : 950 mm,
Slide Adjust : 50 mm,
Feed Stroke : 450 mm,
Clamp Stroke : 180 mm,
List Stroke : 100 mm,
Feed Bar Width : 500 - 700 mm,
Die Cushion No 1 - 12,
1 & 2 : 10 ton,
3, 4, 5, 7 : 20 ton,
6, 8 - 12 : 5 ton,
Stroke : 170 mm,
Pad : 350 mm.
Blanking Press
Make : Fukui
Capacity : 150 tons,
Stoke per min. : 10 - 25,
Die Height : 320 mm,
Slide Adjust : 50 mm,
Bolster : 1200 x 1000 mm,
Slide : 1200 x 1000 mm
Uncoiler Leveller Feeder
Make : Fukui,
Material Thickness : 0.8 - 2.3 mm,
Material Width : 200 - 610 mm,
Coil Weight : 3000 kgs,
Coil Diameter : 1200 mm,
Coil Diameter (Internal) : 508 mm,
Feed Stroke : 10 - 450 mm,
Stoke per min. : 10 - 25.
