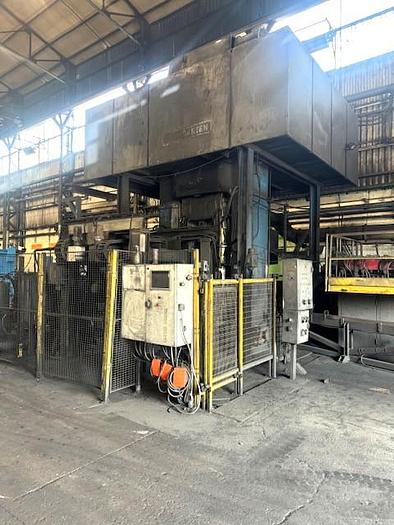

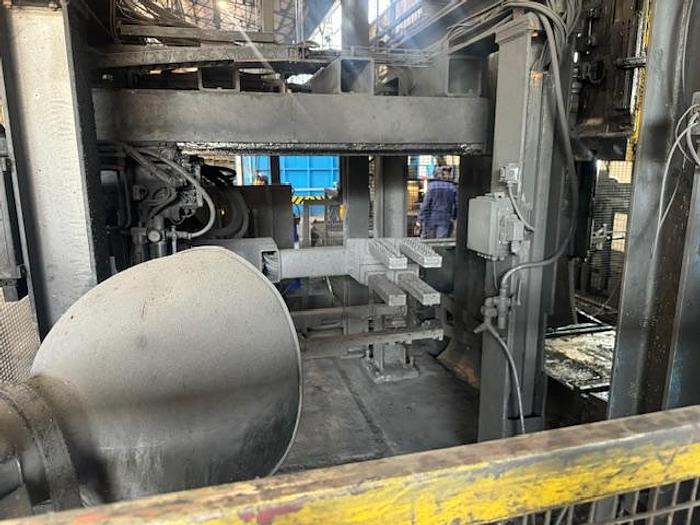

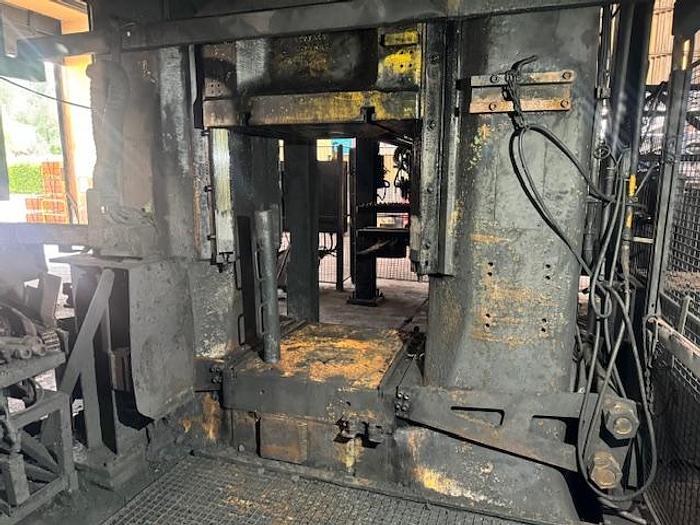

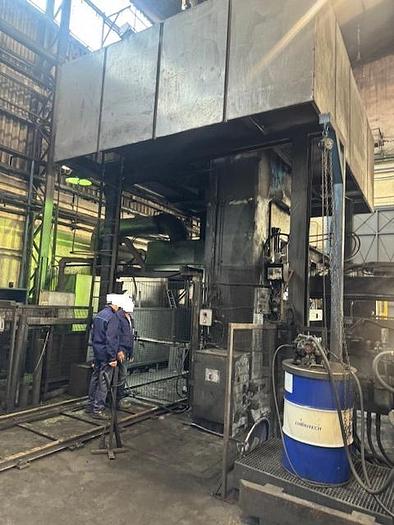

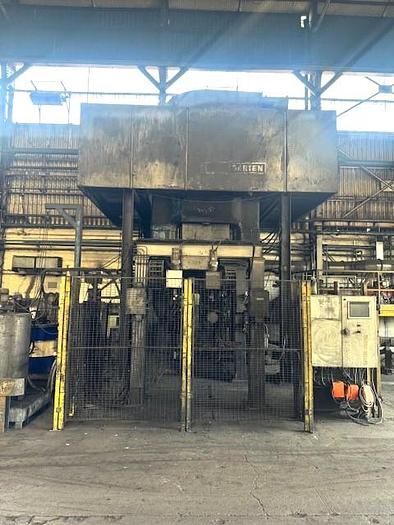

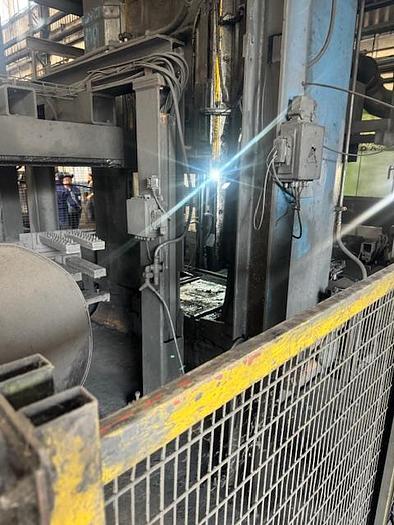

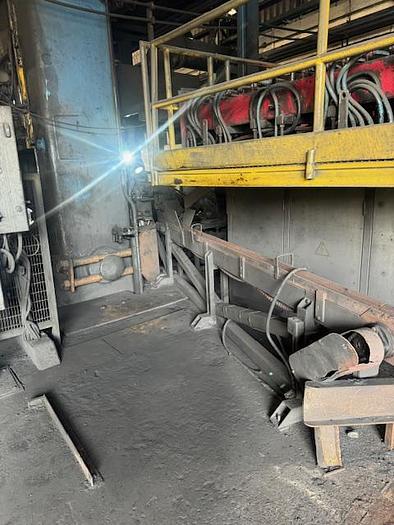

1600 tons Press Friction Screw Weingarten PSR400

Capacity : 1600 tons,

Screw dia : 400 mm,

Stroke mini/max : 230/600 mm,

Number of stroke : 12/ min,

Continuous force admitted : 26000 kn,

Calibration force : 32000 kn,

Gross energy capacity : 180/250,

Blow sequence at energy : max 3.0,

Main power required : 140 kw,

Distance table / ram maxi mini : 1520 / 920 mm,

Distance between guides : 1030 mm,

Distance between upright under slides : 1200 mm,

Table size  width / depth : 1000 x 1050 mm,

Ram sole  size : 1000 x 950 mm,

Maxi width of machine : 3140 ,m

Maximum deepthness of the machine : 1030/1550 mm,

Press base : 3100 x 2000 mm,

Table level above ground : 320 mm,

Total height of the machine above floor : 6.9 m,

Total height of the machine : 8 m,

Mini height  of the crane for dismantling : 9 m,

Mini force of the crane for light parts : 5 tons,

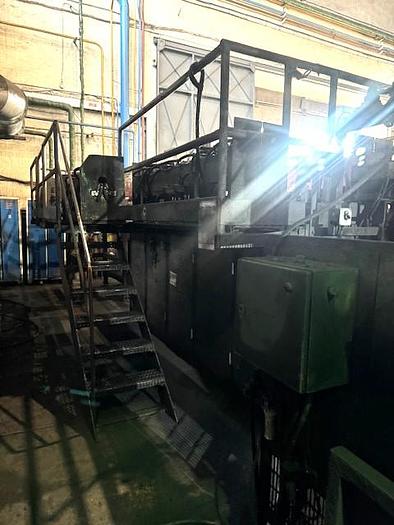

Maxi width of the maintenance platform  5400 mm,

Maxi deepthness of the platform : 1700/2700 mm,

Vertical force applied on the foundation : 3500 kn,

Tangeantial force on the foundation : 3000 kn,

Press weight : 96.9 tons.

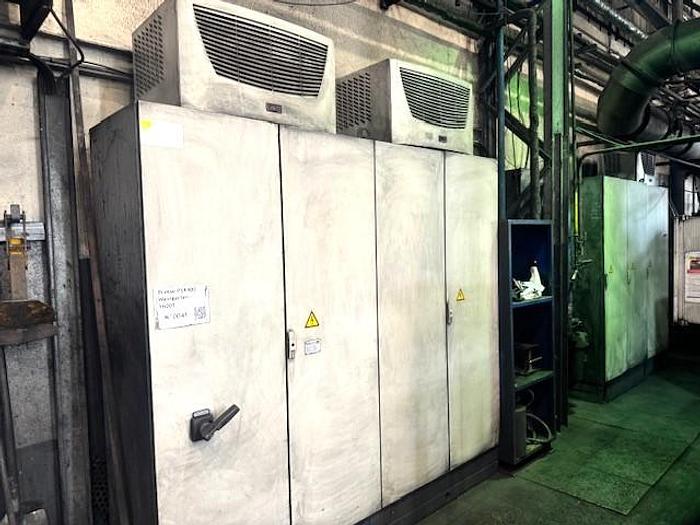

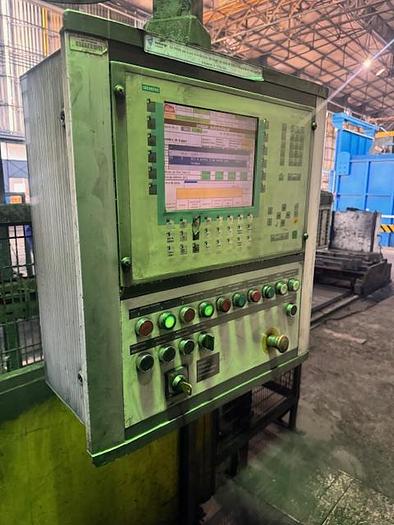

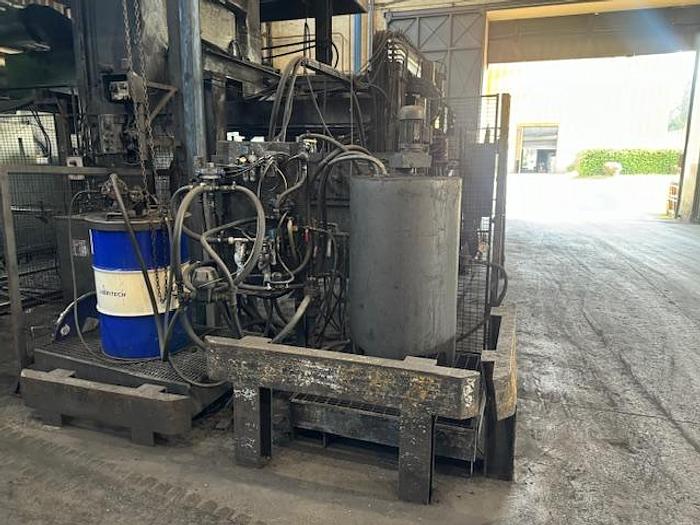

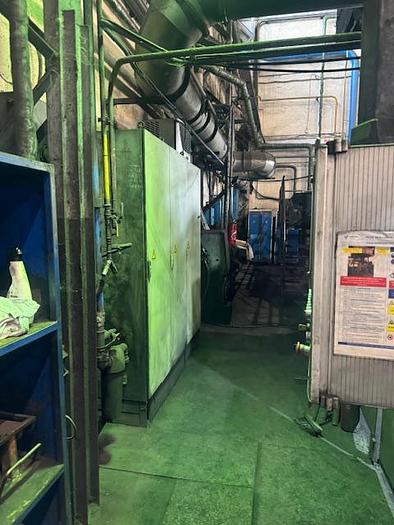

Machine will be sold with all electrical cabinet with automation drive build by Lasco in 2002

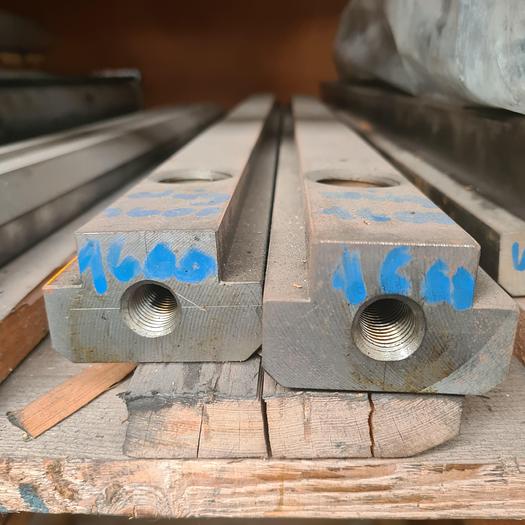

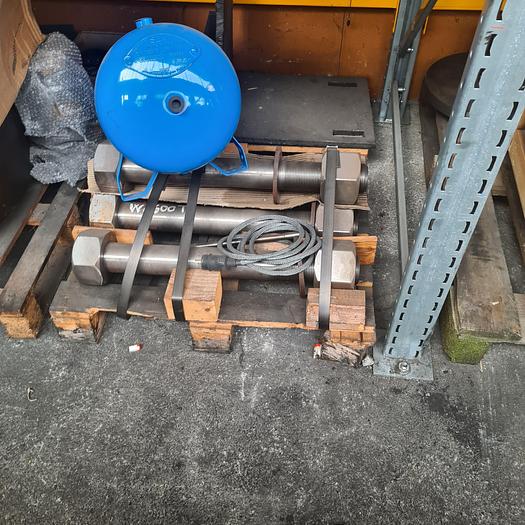

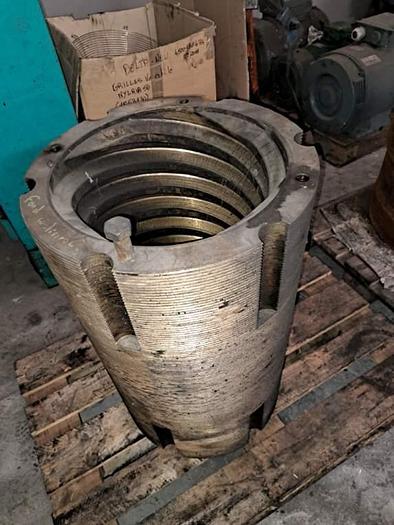

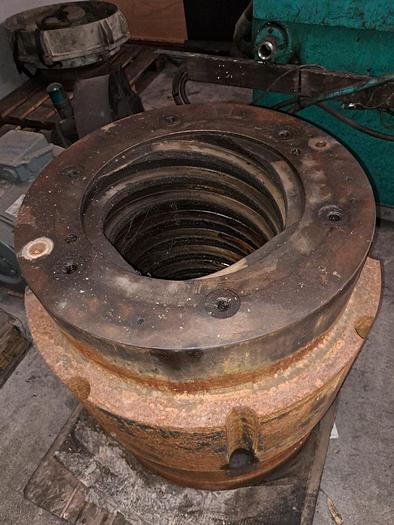

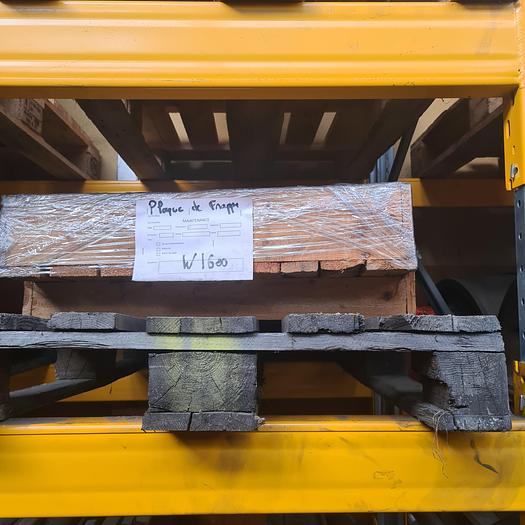

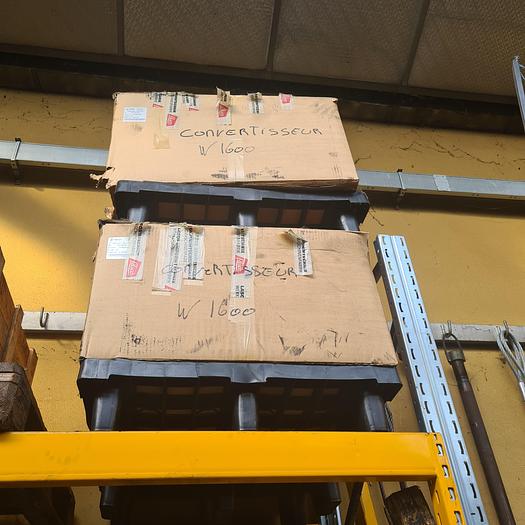

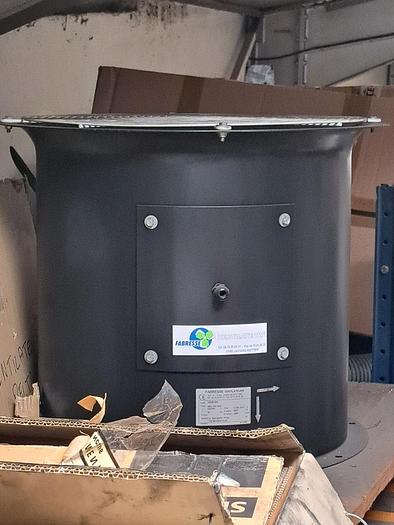

In addition one set of spare parts ( used and new )
