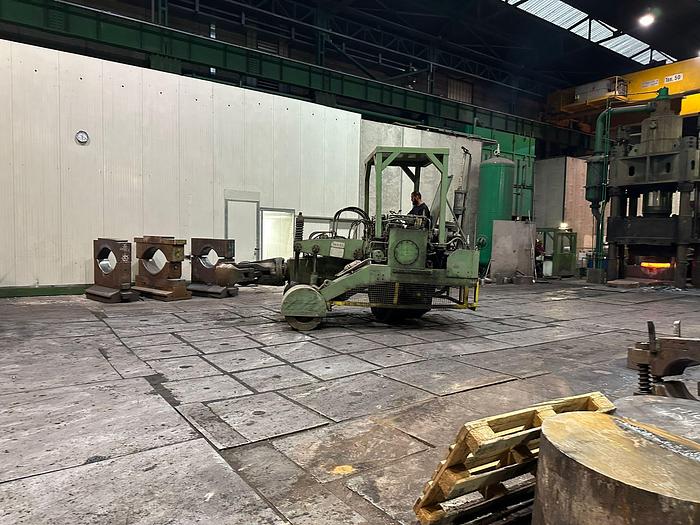

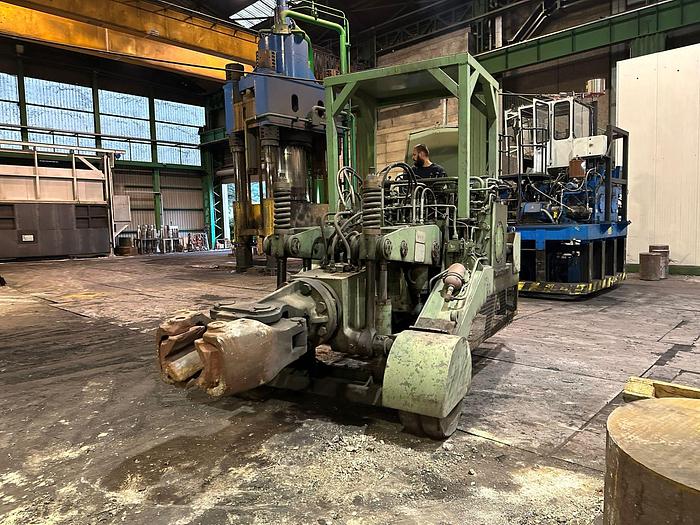

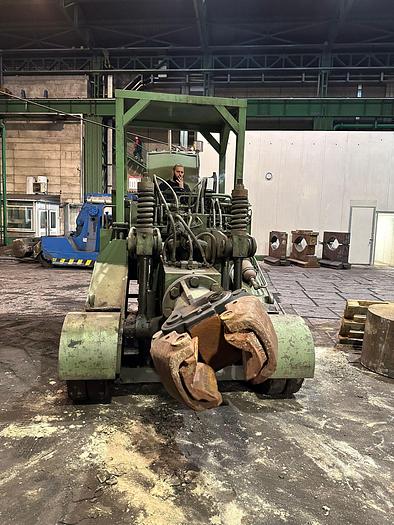

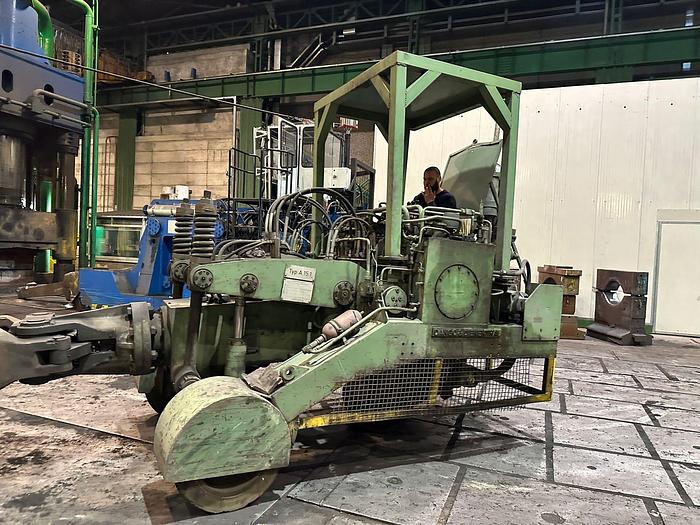

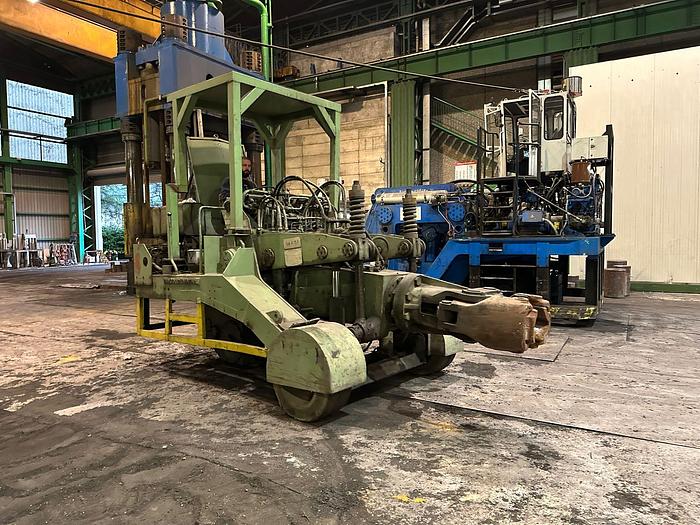

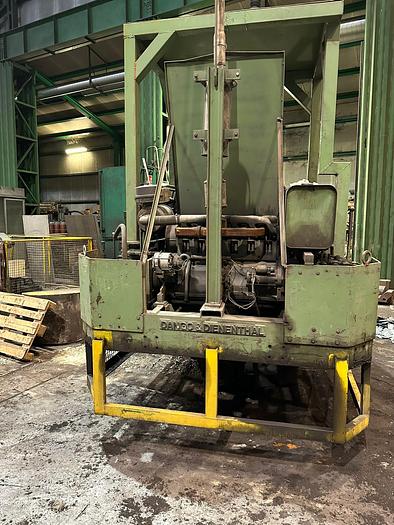

4 tons Manipulator Dango & Dienenthal A15.1

Capacity : 4 tons,

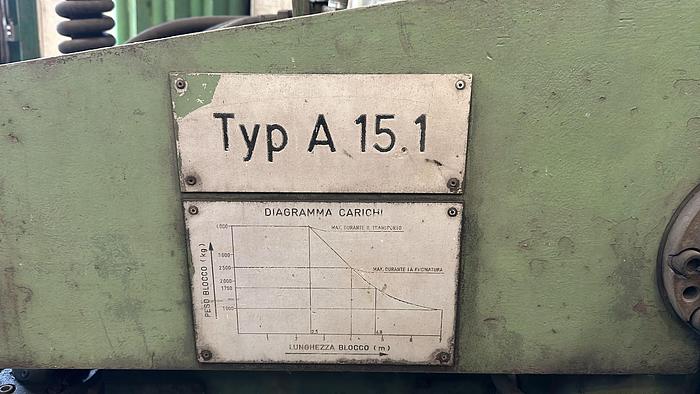

Capacity : 4000 Kg (diagram),

opening tongs : Max 550 mm (round) 510 mm (square),

Min 140 mm,

Torque moment tongs : 500 kpm,

Tour tongs : 30 Upm,

Revolution diam. of the tongs totally opening : 1000 mm,

Min. distance on the floor of the tong : 700 mm,

Parallel stroke of the tong : 600 mm,

Inclination of the tong up : 23°,

Inclination of the tong down : 23°,

Continuously variable speed of translation till 90 m/min,

Dimension : 4745 mm x 2215 mm 4000 mm,

Weight : 15.8 tons,

Loading capacity each wheel (anterior) : 5600 kg with ingot,

Loading capacity each wheel (posterior) : 4800 kg with ingot.
