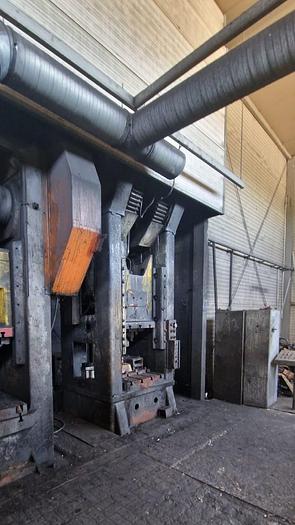

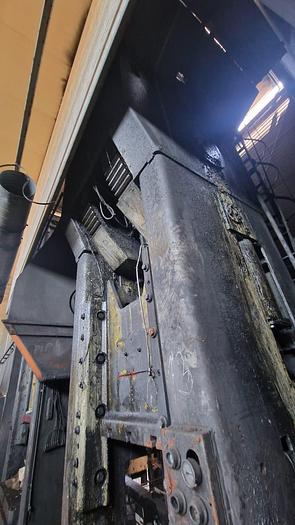

400 tons Press Trimming VEB Heckert PKZ400.1

Capacity : 400 tons,

Working distance - bottom position of the slider at maximum pressing force : 21 mm,

Maximum drawing depth : 125 mm,

Pressing force at maximum drawing depth : 160 Mp,

Idle stroke of the ram : 18 min-1,

Maximum number of switching operations : 9 min-1,

Piston stroke (min-max) : 315 mm,

Slider adjustment : 200 mm,

Extractor holding force at air pressure : 63 MPa, 5 kp / cm2,

Extractor ejector force at air pressure : 10 MPa, 7 kp / cm2,

Gross weight : 38.5 tons.
