Sheet Stamping Line Mechanical Ssangyong 800-400-400-400
Specifications
| Manufacturer | Ssangyong |
| Model | DE2P-800 |
| Year | 2001 |
| Condition | New |
| Stock Number | MA2748 |
| Item condition | Good working condition |
| Capacity tons | 800 |
Description

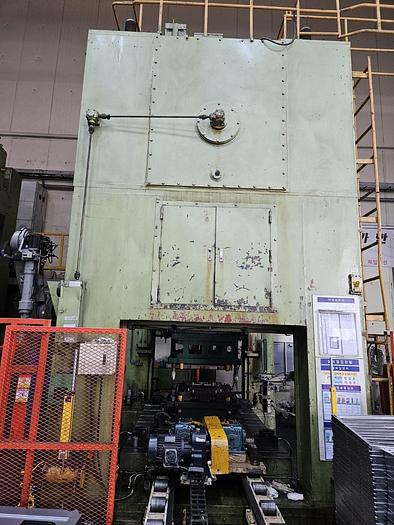

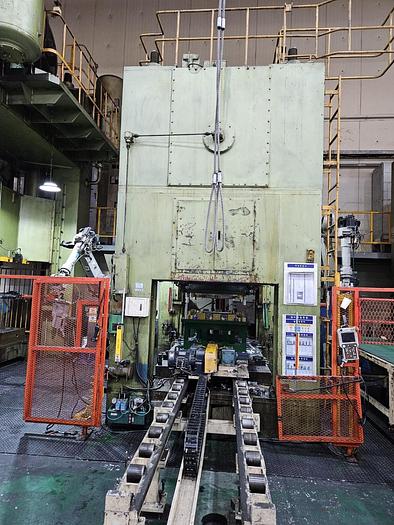

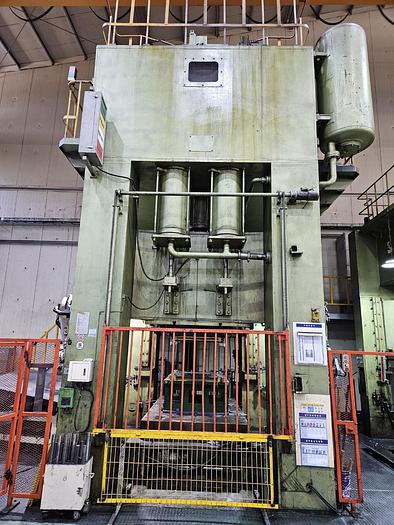

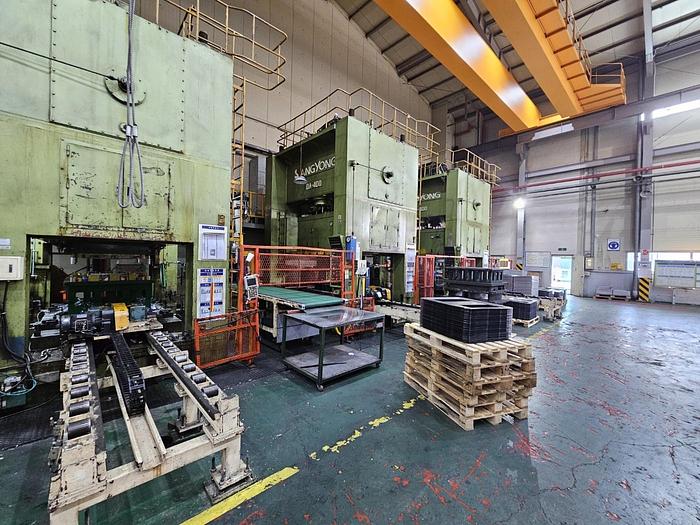

Tandem Line 4 sets

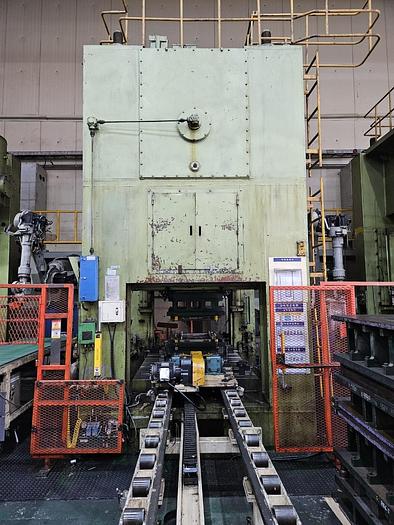

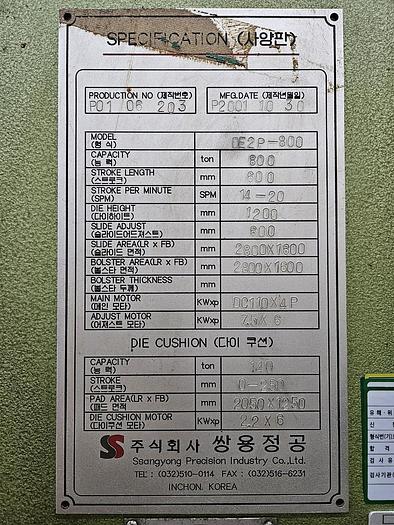

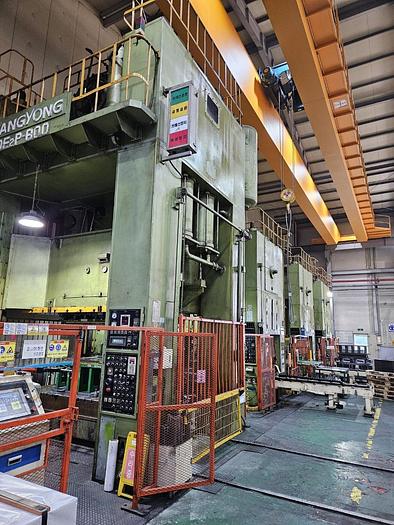

1) Ssangyong 800 Ton new 2001
Model : DE2P-800,
Capacity : 800 tons,
Stroke : 600 mm,
Stroke per minutes : 14-20,
Die height : 1200 mm,
Slide adjust : 600 mm,
Slide area (LR x FB) : 2800 x 1600 mm,
Bolster area (LR x FR) : 2800 x 1600 mm,
Main motor : DC110 x 4P KWxp,
Adjust motor : 7.5 x 6 KWxp,
Die Cushion:
Capacity : 140 tons,
Stroke : 250 mm,
Pad area (LR x FB) : 2050 x 1250 mm,
Die cushion motor : 2.2 x 6 KWxp.

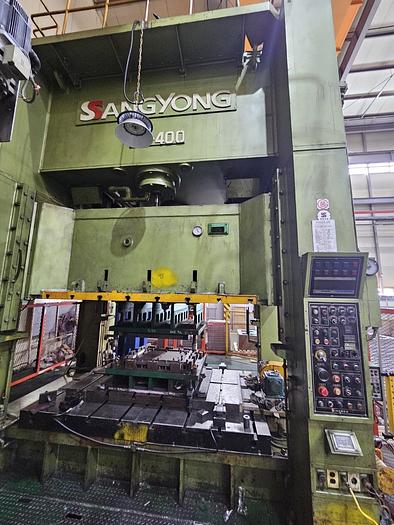

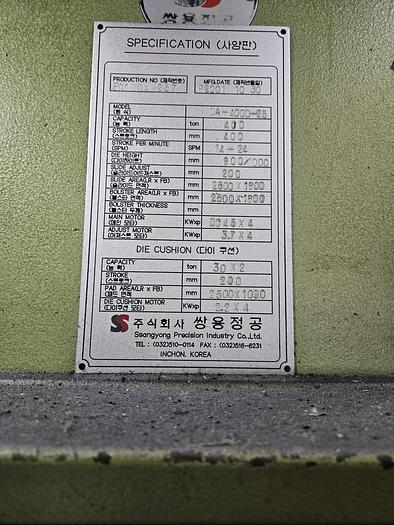

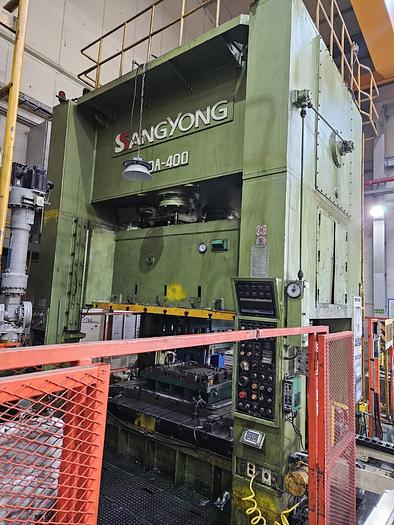

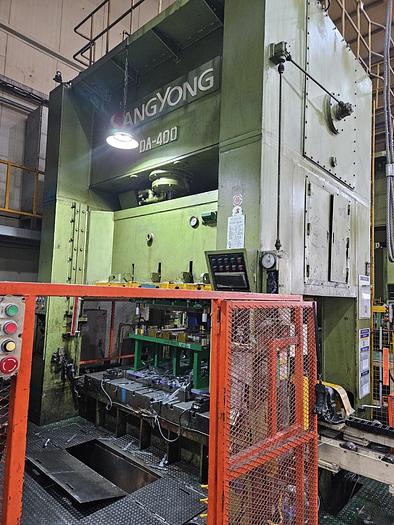

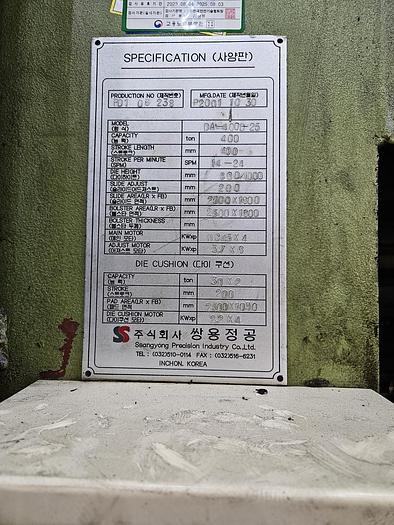

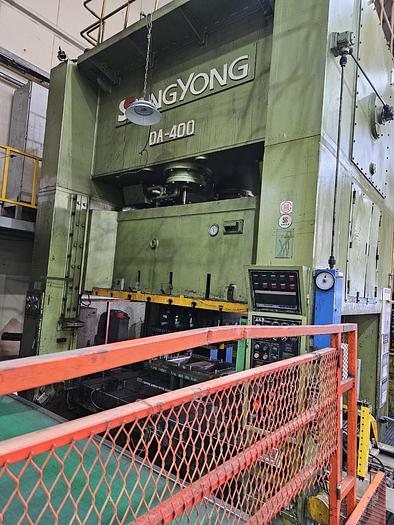

2)Ssangyong 400 Ton new 2001
Model : DA-4000-25,
Capacity : 400 tons,
Stroke : 400 mm,
Stroke per minutes : 14-24,
Die height : 800/1000 mm,
Slide adjust : 200 mm,
Slide area (LR x FB) : 2500 x 1600 mm,
Bolster area (LR x FR) : 2500 x 1600 mm,
Main motor : DC45 x 4 KWxp,
Adjust motor : 3.7 x 4 KWxp,
Die Cushion:
Capacity : 30 x 2 tons,
Stroke : 200 mm,
Pad area (LR x FB) : 2500 x 1090 mm,
Die cushion motor : 2.2 x 4 KWxp.

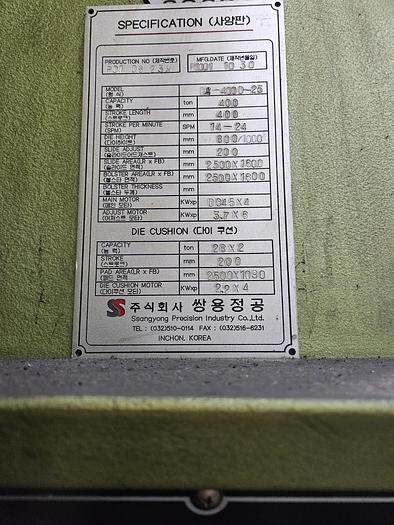

3) Ssangyong 400 Ton new 2001
Model : DA-4000-25,
Capacity : 400 tons,
Stroke : 400 mm,
Stroke per minutes : 14-24,
Die height : 800/1000 mm,
Slide adjust : 200 mm,
Slide area (LR x FB) : 2500 x 1600 mm,
Bolster area (LR x FR) : 2500 x 1600 mm,
Main motor : DC45 x 4 KWxp,
Adjust motor : 3.7 x 4 KWxp,
Die Cushion:
Capacity : 28 x 2 tons,
Stroke : 200 mm,
Pad area (LR x FB) : 2500 x 1090 mm,
Die cushion motor : 2.2 x 4 KWxp.
4) Ssangyong 400 Ton new 2002
Model : DA-4000-25,
Capacity : 400 tons,
Stroke : 400 mm,
Stroke per minutes : 14-24,
Die height : 800/1000 mm,
Slide adjust : 200 mm,
Slide area (LR x FB) : 2500 x 1600 mm,
Bolster area (LR x FR) : 2500 x 1600 mm,
Main motor : DC45 x 4 KWxp,
Adjust motor : 3.7 x 4 KWxp,
Die Cushion:
Capacity : 30 x 2 tons,
Stroke : 200 mm,
Pad area (LR x FB) : 2500 x 1090 mm,
Die cushion motor : 2.2 x 4 KWxp.

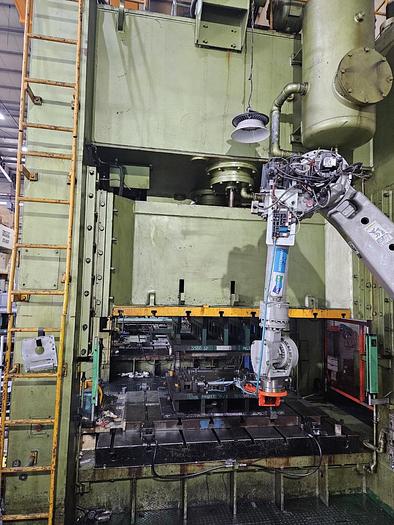

with YASKAWA ROBOT ( New 2005) - 6 sets & Destaker - 1 set.
