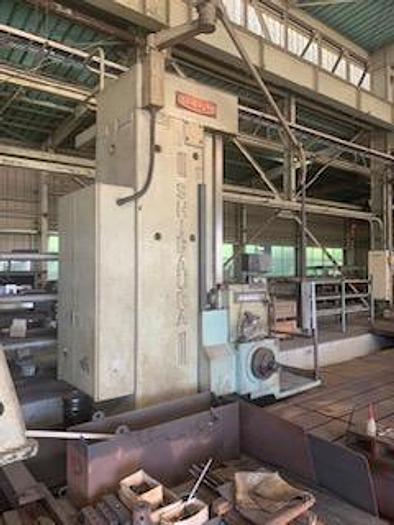

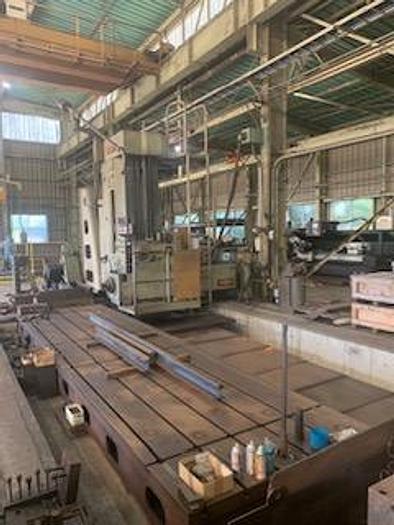

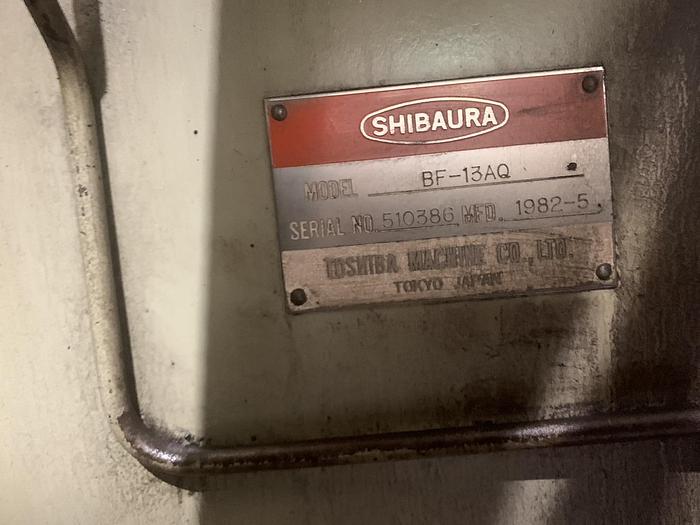

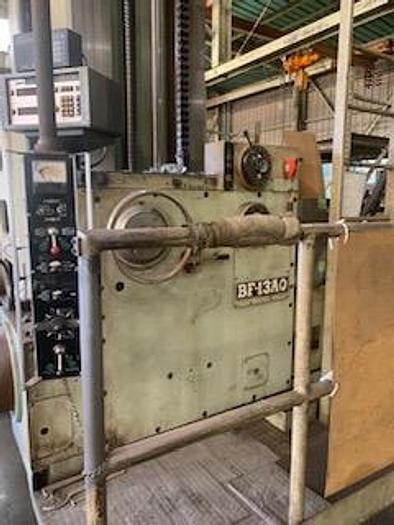

Borer Horizontal Floor Type Toshiba BF13AQ

Spindle diameter : 130 mm,

Quill diameter : 180 mm,

Milling spindle sleeve diameter : 340 mm,

Column travel, X-axis : 6000 mm,

Vertical travel Y-axis : 2500 mm,

Spindle travel, Z-axis : 899 mm,

Quill travel, Z-2 axis : 350 mm,

Combined spindle & quill travel : 899 mm,

Spindle taper : #50,

Spindle speeds (24) : 4-800 RPM,

Feeds (16) : .0018-8 mm/rev

Electrics 230/460/3/60

Approx machine foorprint : 8179 x 3429 mm,

Machine height : 2000 mm,

Left right :6000 mm,

Main motor : AC 4P 50/60Hz,

Spindle head lubricating oil pump motor : AC 4P 0.4kW
