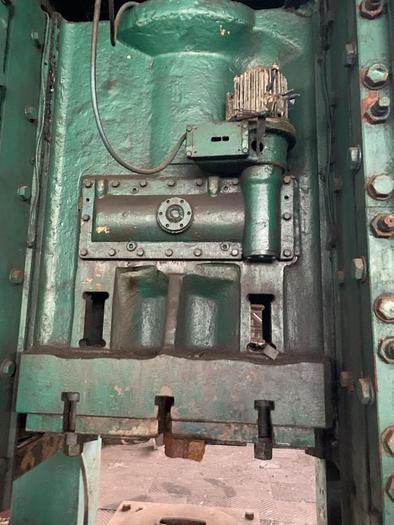

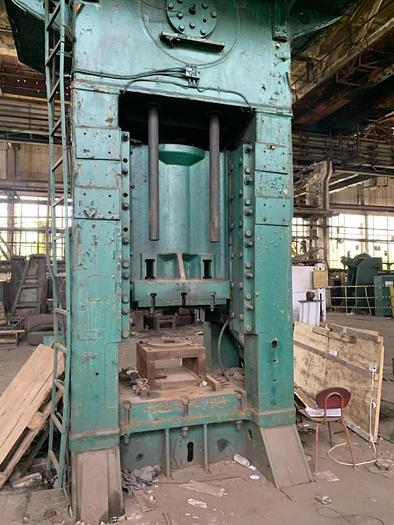

630 tons Press Trimming TMP Voronezh Russia KB9538.01
Specifications
| Manufacturer | TMP Voronezh Russia |
| Model | KB9538.01 |
| Condition | Used |
| Stock Number | MA2738 |
| Item condition | Good condition |
| Capacity tons | 630 |
Description
Capacity : 630 tons,
Stroke : 400 mm,
Number of strokes in a minute : 30,
Bolster plate-to-ram adjustable stroke : 180 mm,
Max. distance plate-to-ram (in lower position of slider) : 750 mm,
Table size : 1250 x 1250 mm,
Main motor power : 55 kW,
Press overall dimensions :
Length : 3650 mm,
Width : 3680 mm,
Height : 6370 mm,
Press weight : 57.5 tons.
