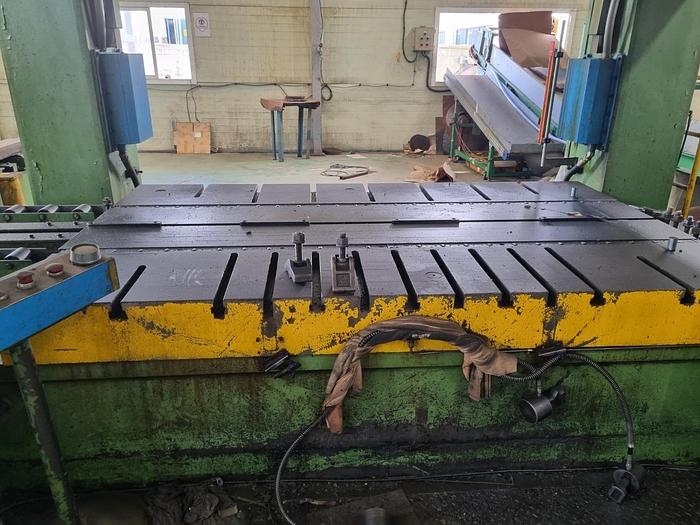

Sheet Stamping Line Mechanical Dongshin 600T-300T-300T-300T
Specifications
| Manufacturer | Dongshin |
| Model | 600T-300T-300T-300T |
| Year | 2008 |
| Condition | Used |
| Stock Number | MA2729 |
| Item condition | Good condition |
| Capacity tons | 600 |
Description

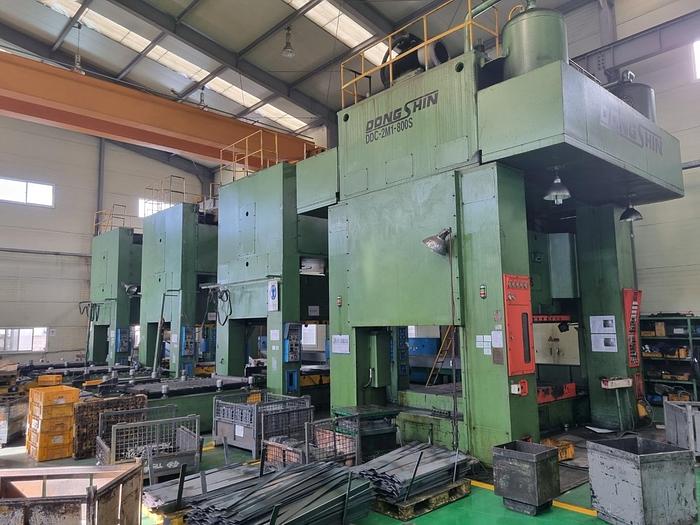

Tendem Line for DONGSHIN 600T-300T-300T-300T

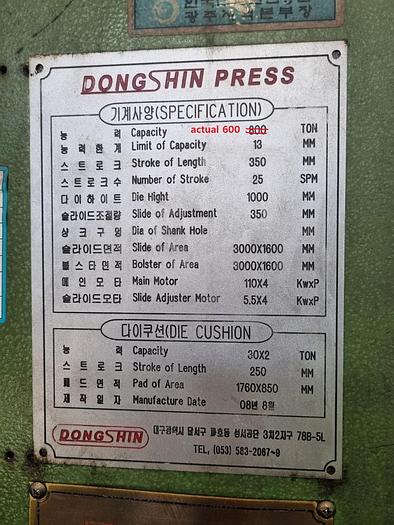

1) Dongshin (Korea) Head Press 600 Ton - New 2008 with Side moving Bolster
Capacity : 600 tons,
Limit of capacity : 13 mm,
Stroke of length : 350 mm,
No. of stroke per min., : 25 SPM,
Die height : 1000 mm,
Slide of adjustment : 350 mm,
Slide of are : 3000 x 1600 mm,

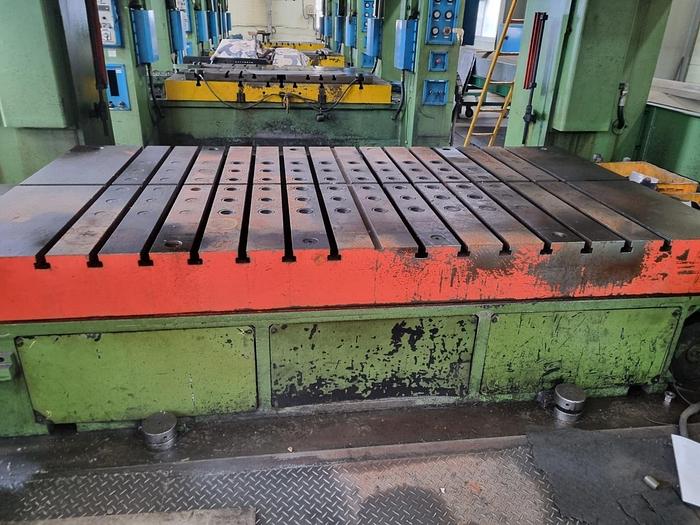

Bolster of are : 3000 x 1600 mm,
Main motor : 110 x 4 Kw x P,
Slide adjuster motor : 5.5 x 4 Kw x P,
Die cushion :
Capacity : 30 x 2 tons,
Stroke of length : 250 mm,
Pad of area : 1760 x 850 mm.

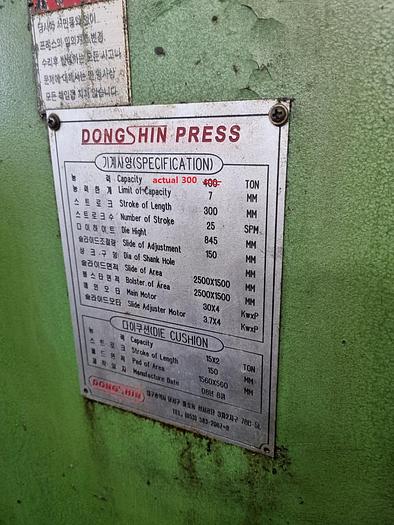

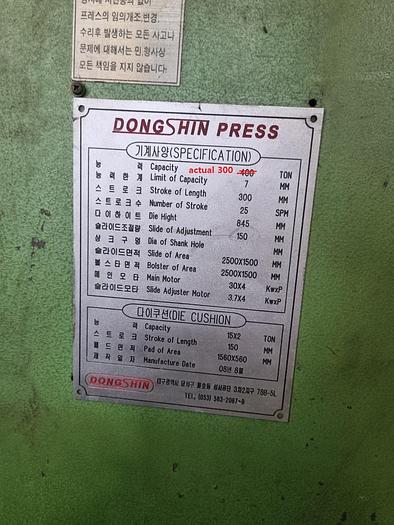

2) Dongshin (Korea) 2nd Press 300Ton - New 2008 with Side moving Bogie Type
Capacity : 300 tons,
Limit of capacity : 7 mm,
Stroke of length : 300 mm,
No. of stroke per min., : 25 SPM,
Die height : 845 mm,
Slide of adjustment : 150 mm,
Slide of are : 2500 x 1500 mm,

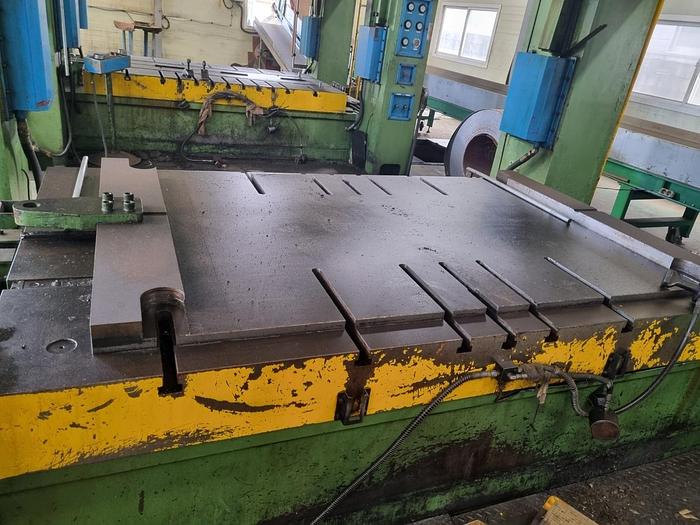

Bolster of are : 2500 x 1500 mm,
Main motor : 30 x 4 Kw x P,
Slide adjuster motor : 3.7 x 4 Kw x P,
Die cushion :
Capacity : 15 x 2 tons,
Stroke of length : 150 mm,
Pad of area : 1560 x 560 mm.

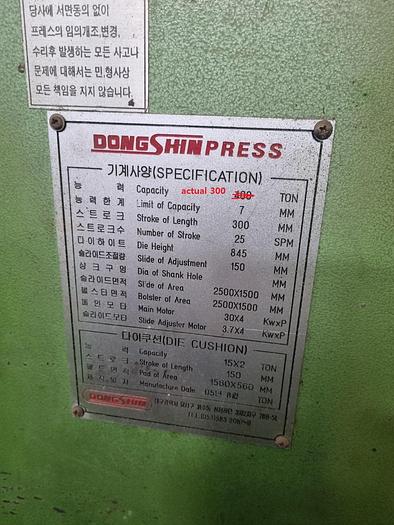

3) Dongshin (Korea) 3rd Press 300Ton - New 2008 with Side moving Bogie Type
Capacity : 300 tons,
Limit of capacity : 7 mm,
Stroke of length : 300 mm,
No. of stroke per min., : 25 SPM,
Die height : 845 mm,
Slide of adjustment : 150 mm,
Slide of are : 2500 x 1500 mm,
Bolster of are : 2500 x 1500 mm,
Main motor : 30 x 4 Kw x P,
Slide adjuster motor : 3.7 x 4 Kw x P,
Die cushion :
Capacity : 15 x 2 tons,
Stroke of length : 150 mm,
Pad of area : 1560 x 560 mm.
4) Dongshin (Korea) 4th Press 300Ton - New 2005 with Side moving Bogie Type
Capacity : 300 tons,
Limit of capacity : 7 mm,
Stroke of length : 300 mm,
No. of stroke per min., : 25 SPM,
Die height : 845 mm,
Slide of adjustment : 150 mm,
Slide of are : 2500 x 1500 mm,
Bolster of are : 2500 x 1500 mm,
Main motor : 30 x 4 Kw x P,
Slide adjuster motor : 3.7 x 4 Kw x P,
Die cushion :
Capacity : 15 x 2 tons,
Stroke of length : 150 mm,
Pad of area : 1560 x 560 mm.
Technical manuals available
