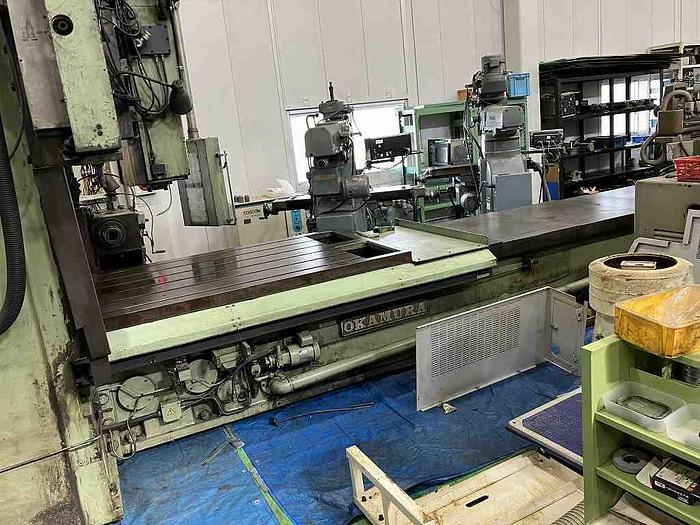

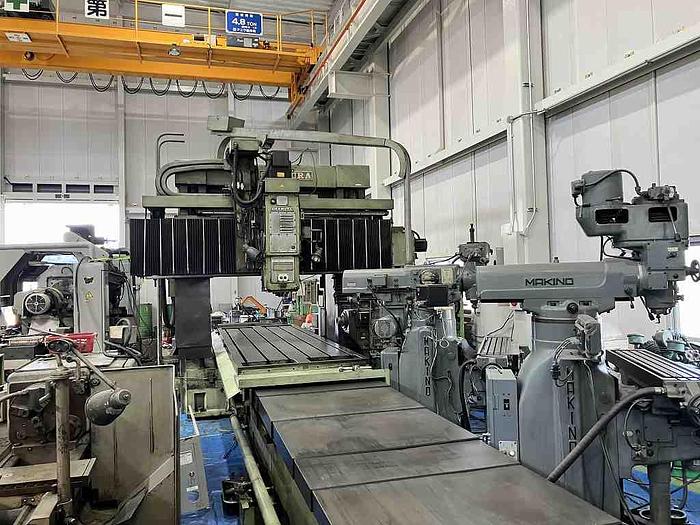

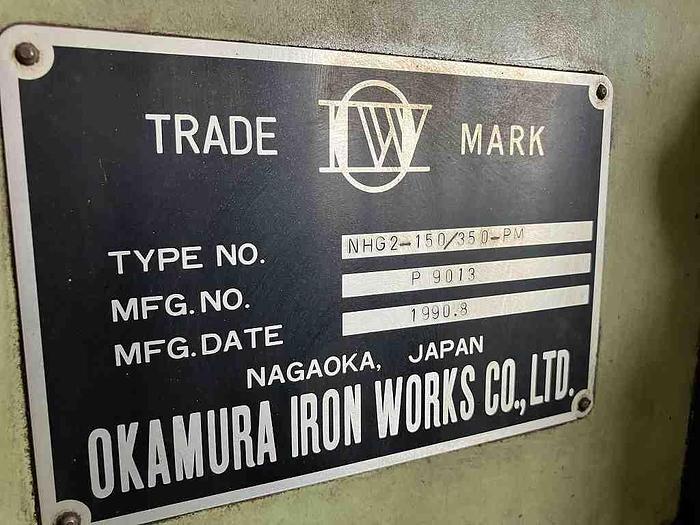

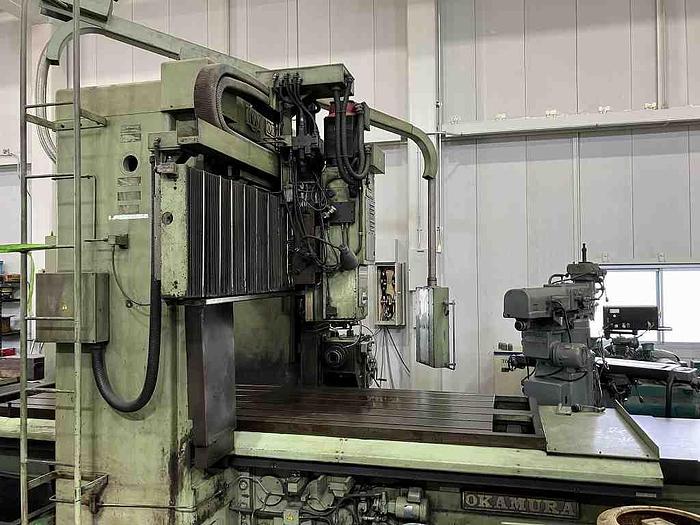

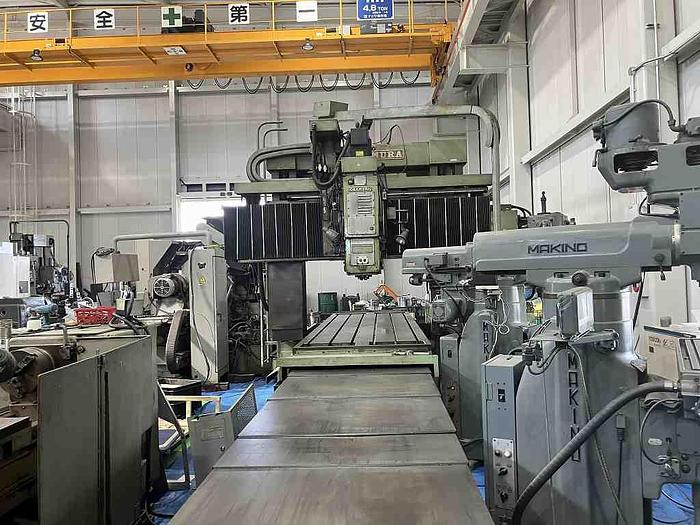

Plano Miller Okamura NHG2-150/350-PM

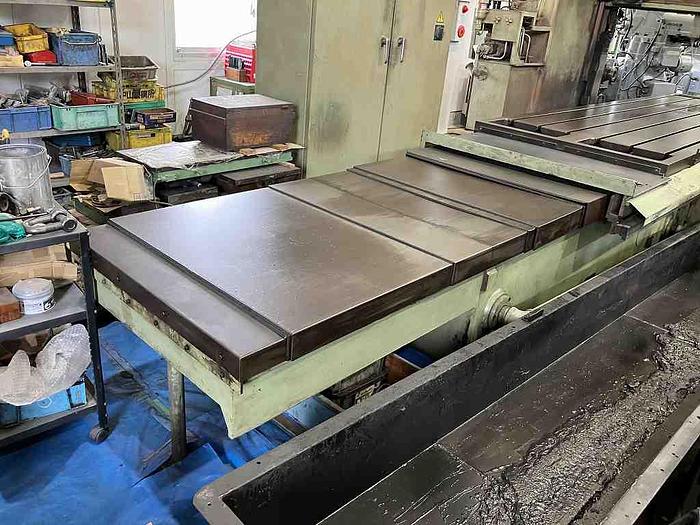

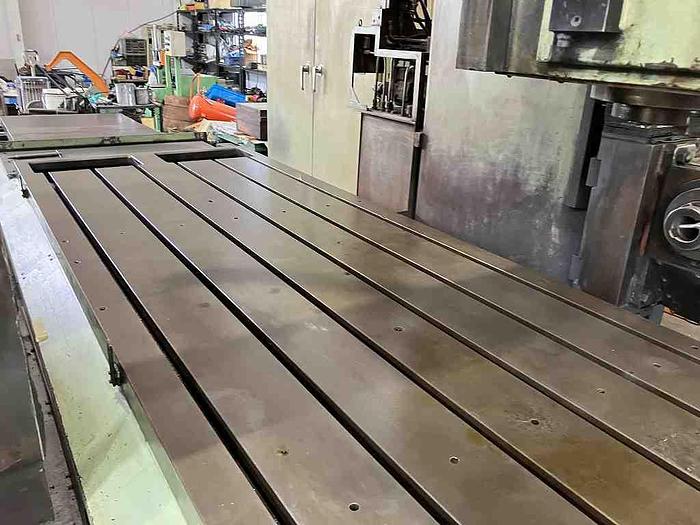

Table : 3600 × 1200 mm,

Distance from the inside surface of the left column to the end of the right spindle : 1560 mm,

Cutting Height (distance from table top to rail head spindle end) : 1150 mm,

Length that can be cut : 3500 mm,

Maximum table stroke : 3900 mm,

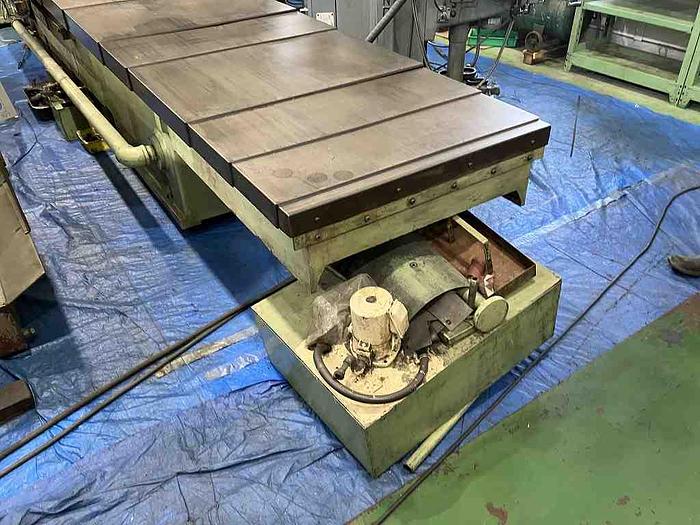

Length of table work surface : 3600 mm,

Table work surface width : 1200 mm,

Total length of table : 4200 mm,

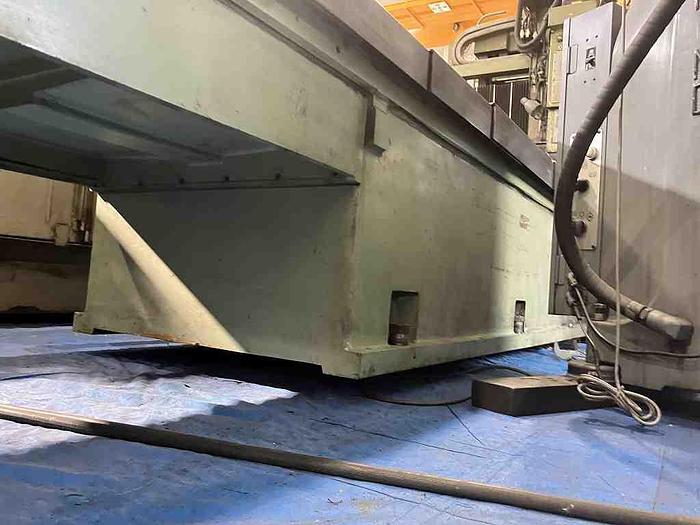

Total length of bed : 8500 mm,

Distance between both columns : 1600 mm,

Milling Table :

Speed : 3500 mm/min.,

Feed rate : 10-1000 mm/min.,

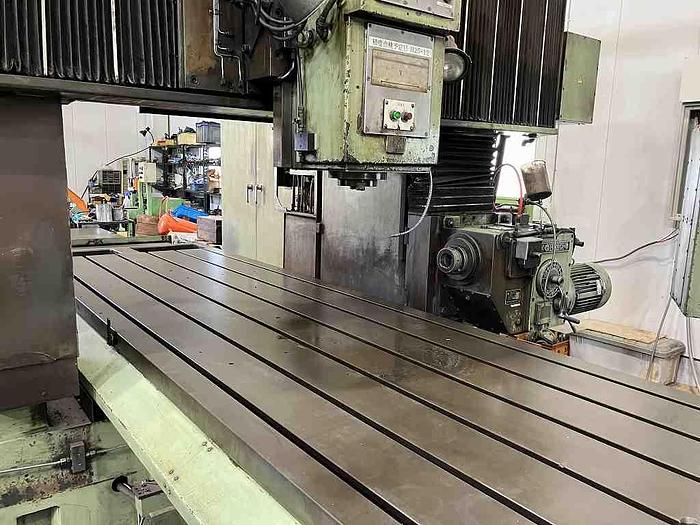

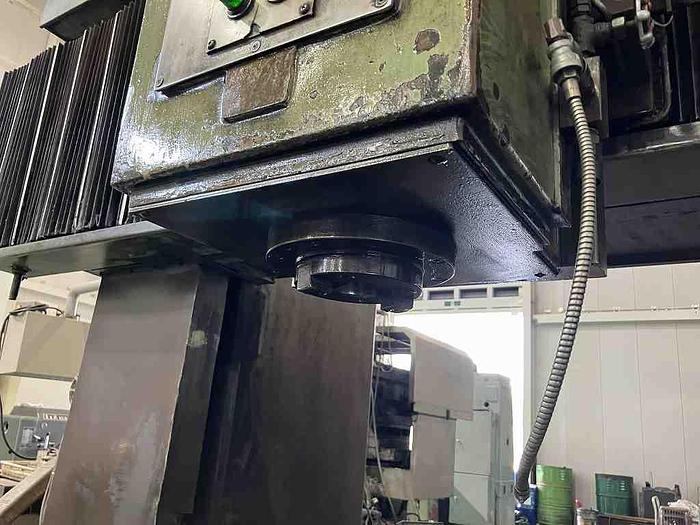

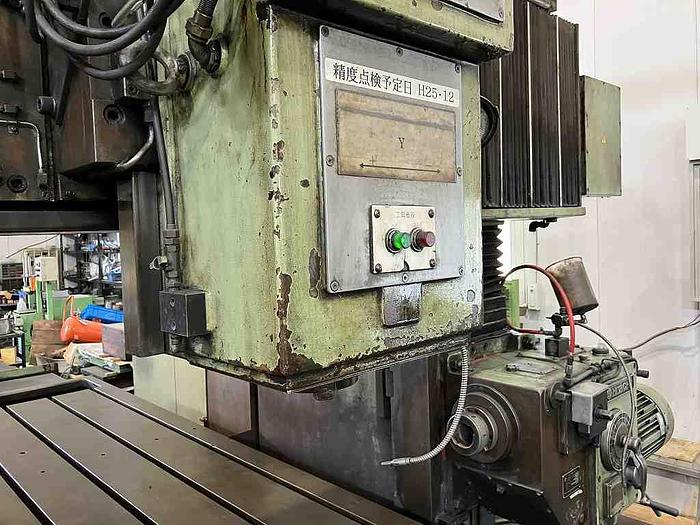

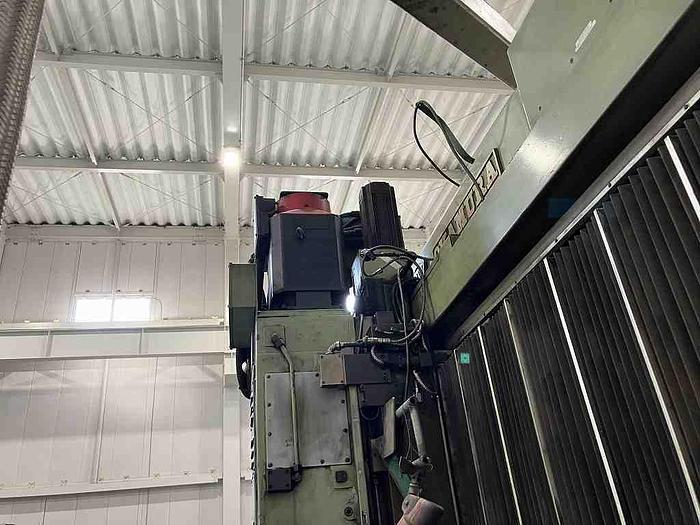

Rail head for milling cutter, left and right :

Speed : 3000 mm/min.,

Feed rate 41 : 10-1000 mm/min.,

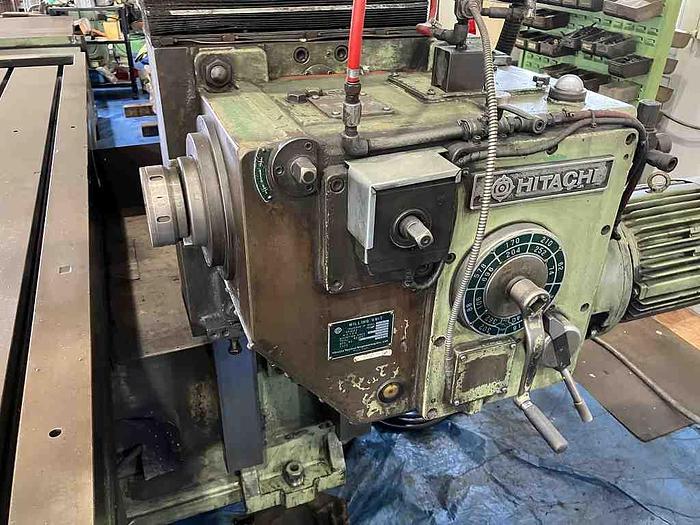

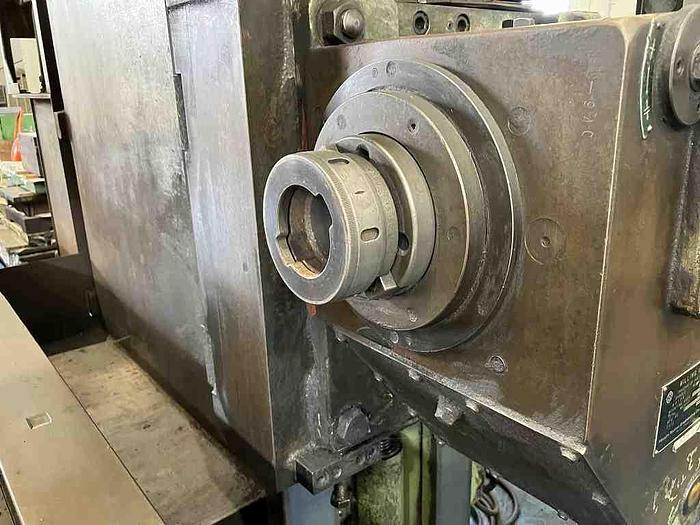

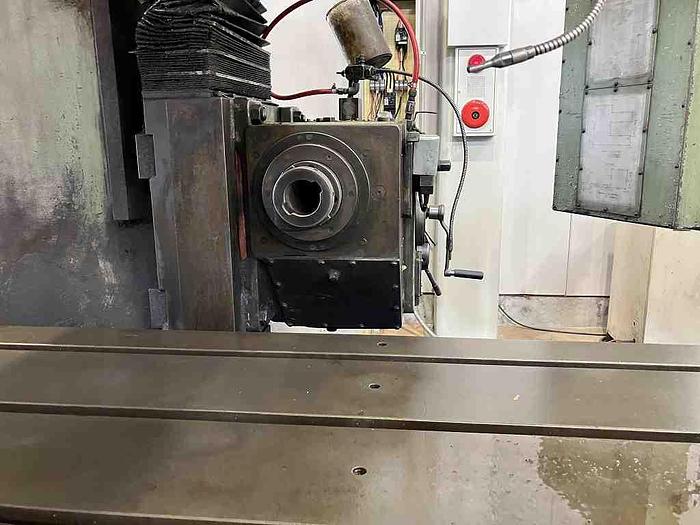

Side head for milling cutter :

Speed : 3000 mm/min.,

Feed rate : 10-1000 mm/min.,

Milling table feed motor : AC 3.0 kW,

Milling head feeder : AC 2.0 kW.
