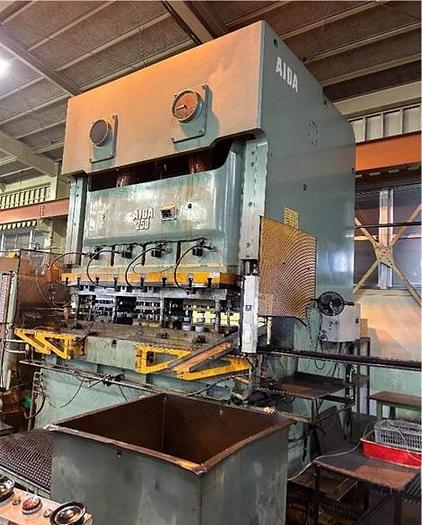

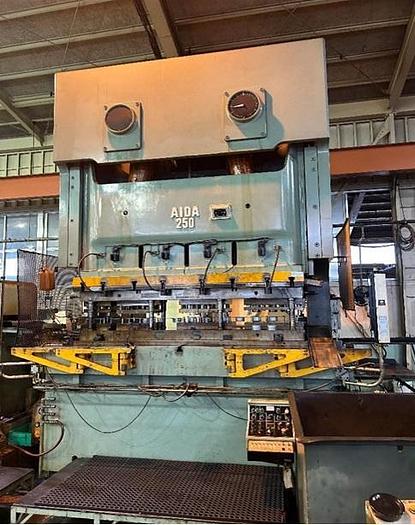

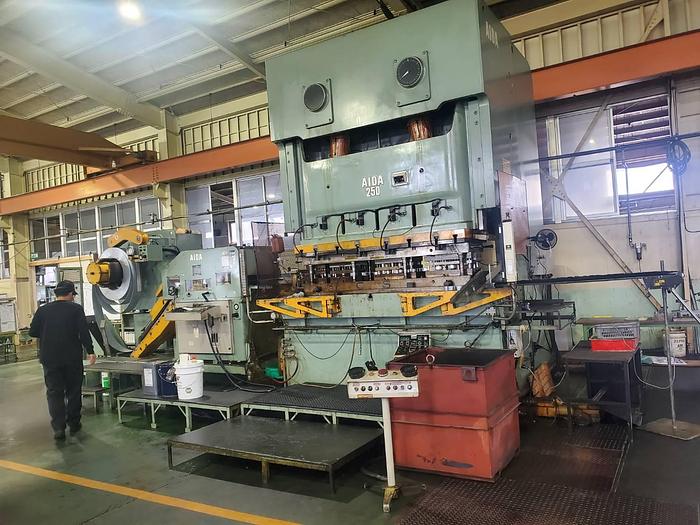

250 tons Press Sheet Stamping Mechanical Aida NC2-250(2)

C Frame Press

Capacity : 250 tons,

Stroke : 280 mm,

Stroke per min. : 20 - 38,

Bolster : 2700 x 760 mm,

Slide : 2100 x 700 mm,

Slide  Adjust : 120 mm,

Die Height : 480 mm,

Main Motor : 30 Kw.

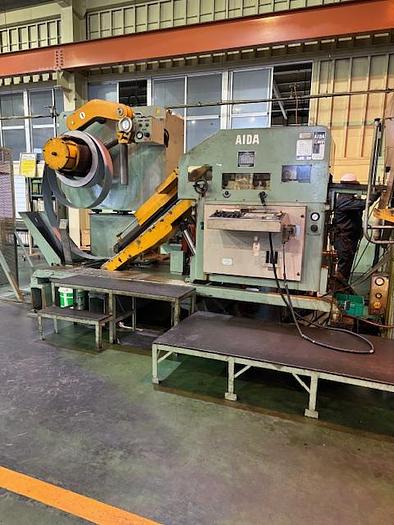

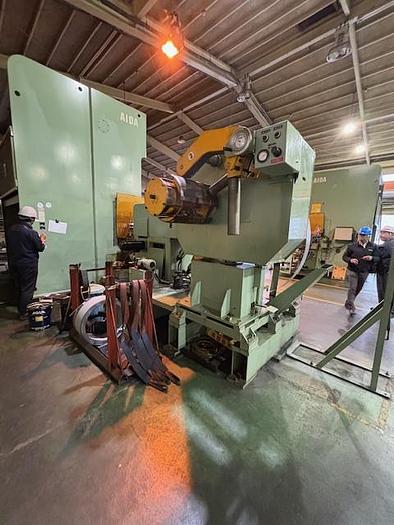

with a double mandrel type Aida Uncoiler leveler.

Make : Aida,

Model : LFM-400R,

Coil Width : 60 - 400 mm,

Coil Thickness : 0.4 - 3.2 mm,

Coil Weight : 2000 kg x 2,

Coil Inner Diameter : 508 mm,

Coil Outer Diameter : 800 - 1200 mm,

Feed Length : 10 - 400 mm,

SPM : -38,

Main Motor : 3.0 Kw.
