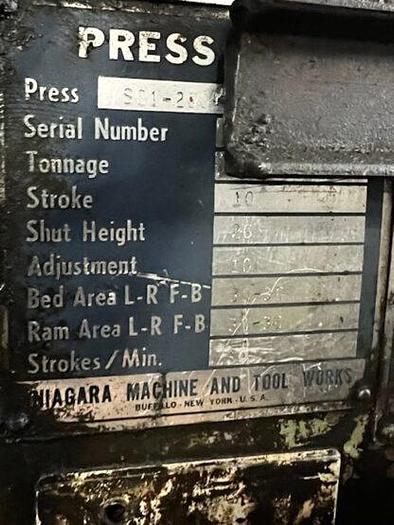

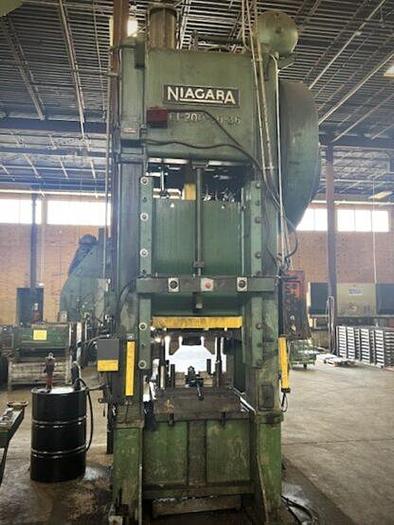

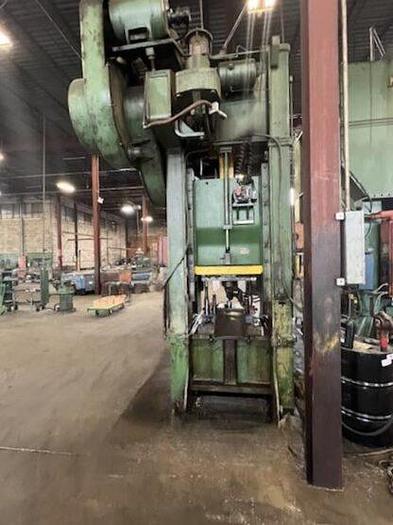

200 tons Press Sheet Stamping Mechanical Niagara SC1-200-30-36

Capacity : 200 tons,

Stroke : 250 mm,

Stroke per min. : 30

Max. Shut height to bed : Approx. 650 mm,

Slide adjustment : 250 mm,

Bed area (RL x FB): 750 x 900 mm,

Slide area (RL x FB) : 750 x 750 mm,

Bolster Plate (TH x RL x FB) : 125 x 750 x 900 mm,

Distance between uprights : 800 mm,

Distance floor to bed : 800 mm,

Window size : 525 mm,

Clutch : Niagara air Clutch & Brake,

Electrics : Approx. 20 HP 1150 RPM 480V-3-60 Motor & Niagara relay press control,

Approx. Dimensions (H x RL x FB) : 4575 x 2600 x 2300 mm,

Weight : 24 tons.

Equipped with:

Single back geared design, Floor standing, Tie rod frame, Dual air counterbalances, Trabon lubrication, Flywheel brake.
