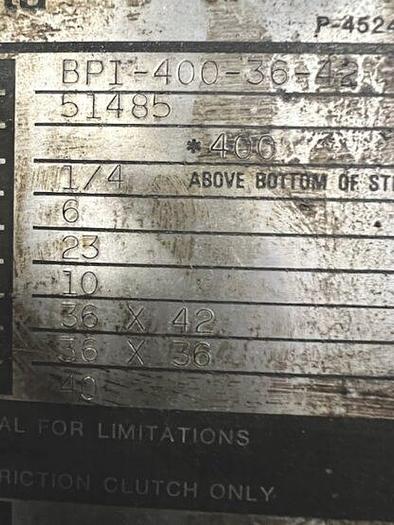

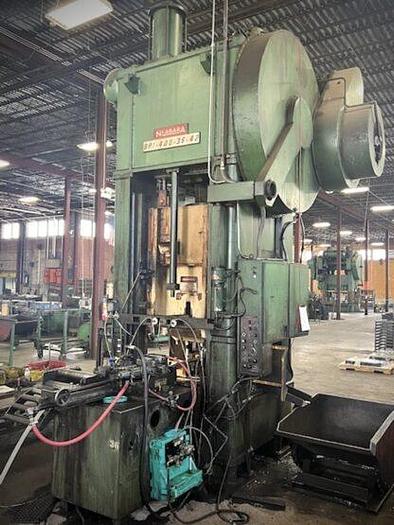

400 tons Press Sheet Stamping Mechanical Niagara BP1-400-36-42

Capacity : 400 tons,

Stroke : 150 mm,

Stroke per min. : 40

Max. Shut height to bed : Approx. 575 mm,

Slide adjustment : 250 mm,

Bed area (RL x FB): 900 x 1050 mm,

Slide area (RL x FB) : 900 x 900 mm,

Bolster Plate (TH x RL x FB) : 150 x 900 x 1050 mm,

Distance between uprights : TBD,

Distance floor to bed : 800 mm,

Window size : (FB x H) : 875 x 550 mm,

Clutch : Niagara air Clutch & Brake,

Electrics : Approx. 30 HP 1150 RPM 480V-3-60 Motor & Niagara relay press control,

Approx. Dimensions (H x RL x FB) : 5450 x 3375 x 2775 mm,

Weight : 38 tons.

Equipped with:

Tie rod frame, Floor standing, Dual air counterbalances, 6 point gibs, Single back geared.
