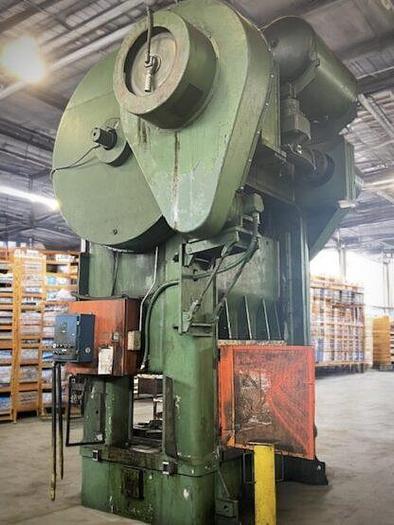

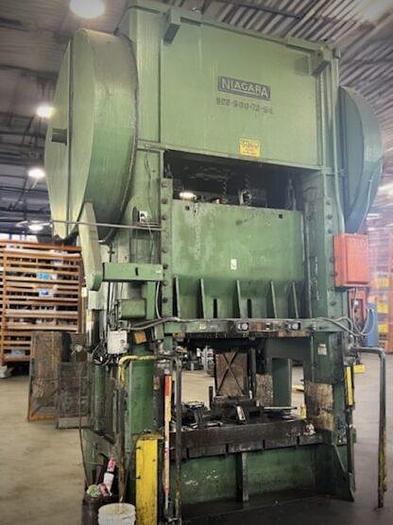

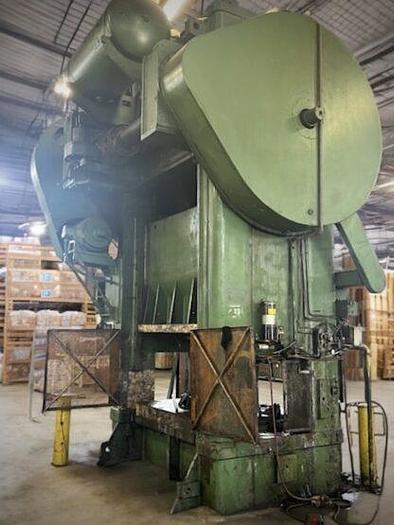

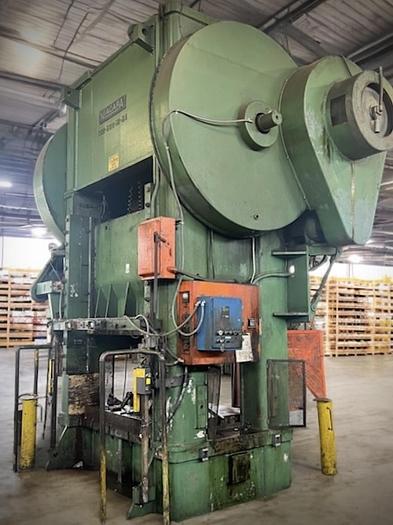

500 tons Press Sheet Stamping Mechanical Niagara SC2-500-72-54

Capacity : 500 tons,

Stroke : 500 mm,

Stroke per min. : 30

Max. Shut height to bed : Approx. 950 mm,

Slide adjustment : 375 mm,

Bed area (RL x FB): 1800 x 1350 mm,

Slide area (RL x FB) : 1800 x 1350 mm,

Bolster Plate (TH x RL x FB) : 170 x 1800 x 1350 mm,

Distance between uprights : 2025 mm,

Distance floor to bed : 950 mm,

Window size : (FB x H) : 675 x 700 mm,

Clutch : Niagara air Clutch & Brake,

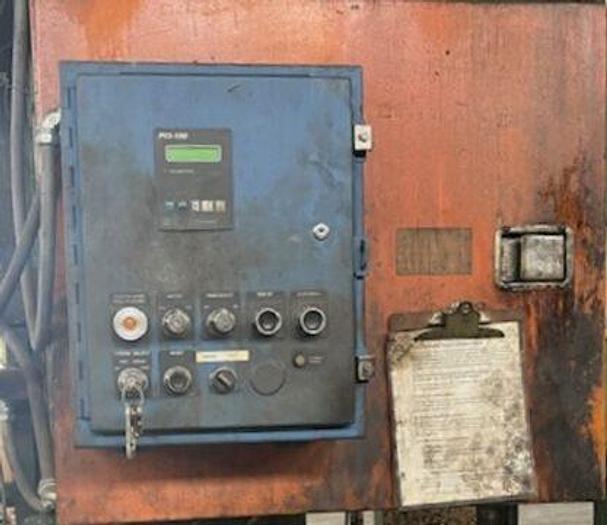

Electrics : Approx. 40 HP 1150 RPM 480V-3-60 Motor & Existing cieco press control,

Approx. Dimensions (H x RL x FB) : 6200 x 4400 x 3150 mm,

Weight : 66 tons.

Equipped with:

Tie rod frame, Floor standing, Dual air counterbalances, Single back geared, twin end drive.
