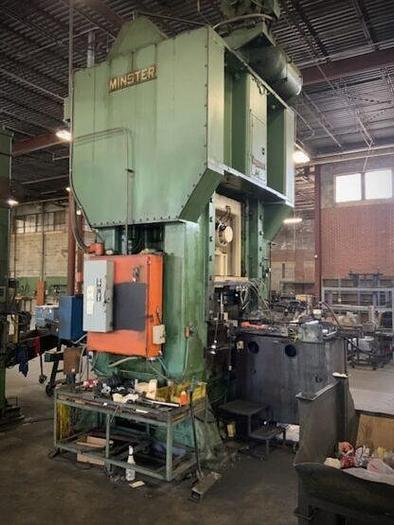

500 tons Press Sheet Stamping Mechanical Minster E2-500-48-48

Capacity : 500 tons,

Stroke : 300 mm,

Stroke per min. : 28

Max. Shut height to bed : Approx. 700 mm,

Slide adjustment : 150 mm,

Bed area (RL x FB): 1200 x 1200 mm,

Slide area (RL x FB) : 1200 x 1200 mm,

Hole in Bed (RL x FB) : 1050 x 825 mm,

Bolster Plate (TH x RL x FB) : 175 x 1200 x 1200 mm,

Distance between uprights : 1250 mm,

Distance floor to bed : 900 mm,

Window size (FB x H) : 825 x 300 mm,

Clutch : Minster MC-91 AC & Brake,

Electrics : 40 HP 1150 RPM 440V-3-60 Motor & Press Control,

Approx. Dimensions (H x RL x FB) : 4650 x 2300 x 1850 mm,

Weight : 51.2 tons.

Equipped with:

Air counterbalanced ram tie road, Cast steel frame construction floor standing base recirculating oil lubrication system.
