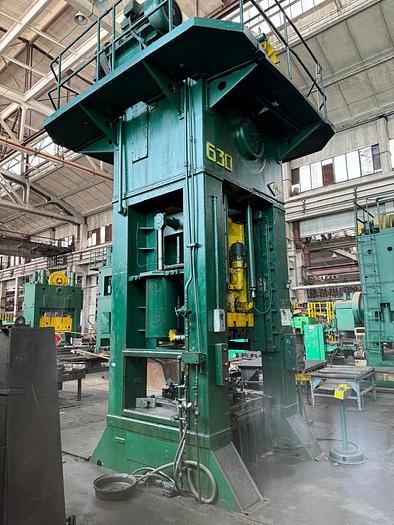

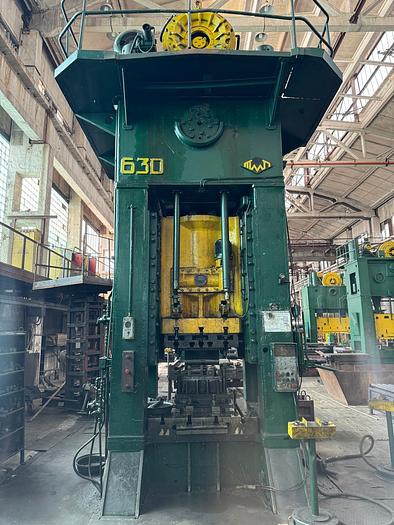

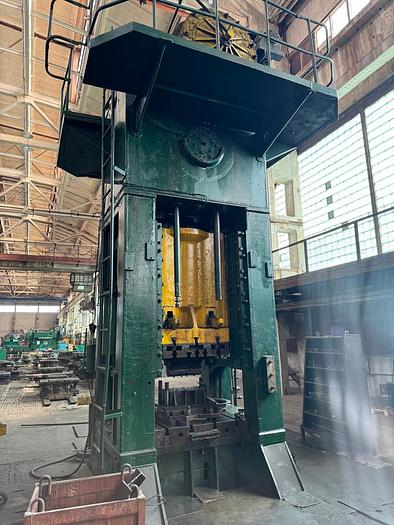

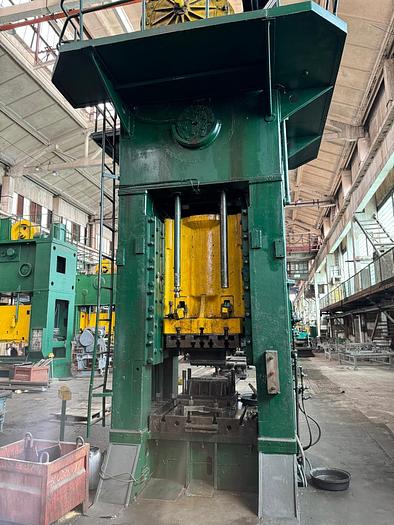

630 tons Press Trimming TMP Voronezh Russia K2538
Specifications
| Manufacturer | TMP Voronezh Russia |
| Model | K2538 |
| Year | 1983 |
| Condition | Used |
| Stock Number | MA2701 |
| Item condition | Good condition |
| Capacity tons | 630 |
Description
Capacity : 630 tons,
Ram stroke : 320 mm,
Stroke per minutes : 20 SPM,
Shut height : 620 mm,
Max. distance between bolster and ram: 800 mm
Bolster plate to ram adjustment stroke : 180 mm,
Bed dimensions : 1250 x 1250 mm,
Ram dimensions : 1000 x 1000 mm,
Bolster plate thickness : 180 mm,
Main drive motor power : 61 kW,
Overall dimensions : 3600 x 3470 x 6190 mm,
Weight : 49.6 tons.
