500 tons Press Sheet Stamping Hydraulic Kawasaki
Specifications
| Manufacturer | Kawasaki |
| Model | DPN-500 |
| Year | 2004 |
| Condition | Used |
| Stock Number | MA2696 |
| Item condition | Good condition |
| Capacity tons | 500 |
Description
Hydraulic Deep Drawing Press
Capacity : 500 tons,
Stroke : 1000 mm,
Table : 1800 x 1200 mm,
Daylight : 1200 mm,
Descending Speed : 180 mm/s,
Pressing Speed : 8 mm/s,
Raising Speed : 180 mm/s
Die Cushion : 100 tons
Cushion Stroke : 200 mm,
Motor : 220V.
This model has a compact design that is floor mounted and does not require a pit.

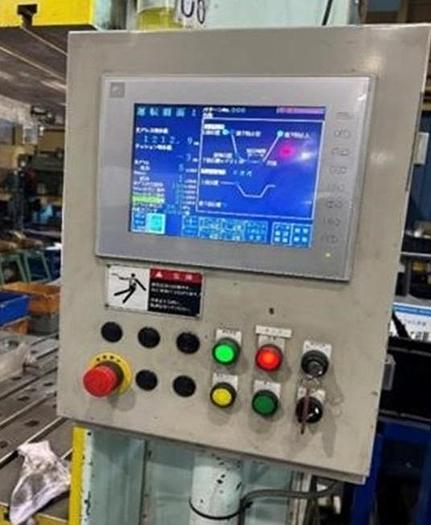

The position and output of the press and die cushion can be set on the touch panel.
