Trepanning Machine HNK TP-130
Specifications
| Manufacturer | HNK |
| Model | TP-130 |
| Year | 2016 |
| Condition | Used |
| Stock Number | MA2691 |

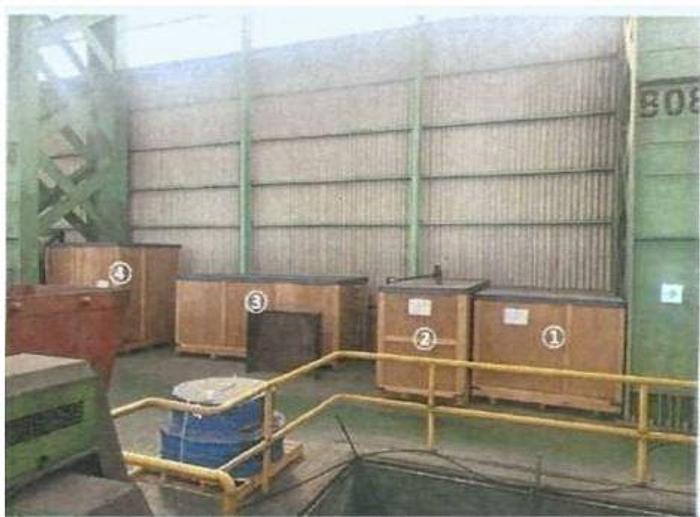

| Item condition | Good condition, disassembled & stored |
Description
Height from floor to Spindle center : 800-2000 mm,

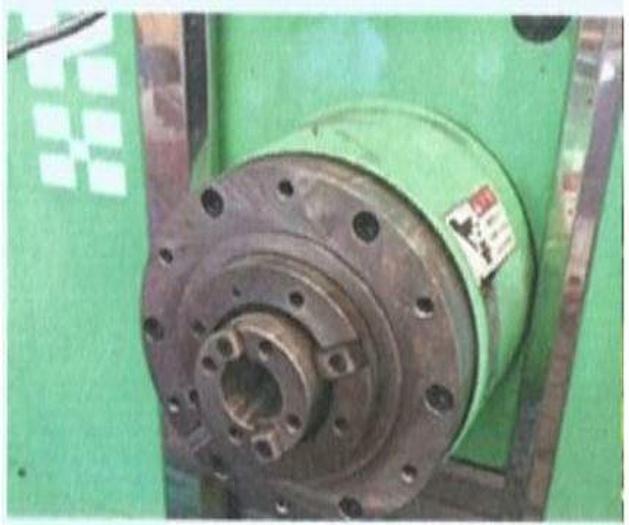

Spindle Head
Bose Taper : BT 50,
Boring Spindle dia. : 130 mm,
Milling Spindle dia : 225 mm,
Spindle Speed : 5-600 rpm,
Column Longitudinal (X-axis) Travels : 3000 mm,
Spindle Vertical (Y-axis) Travels : 1200 mm,
Spindle Axial (Z-axis) Travels : 550 mm,
Column Longitudinal (X-axis) :
Rapid : 1-10000 mm/min.,
Feedrate : 1-4000 mm/min.,
Spindle Vertical (Y-axis) :
Rapid : 1-10000 mm/min.,
Feedrate : 1-4000 mm/min.,
Spindle Axial (Z-axis) :
Rapid : 1-6000 mm/min.,
Feedrate : 1-4000 mm/min.,
Spindle Head : A.C Spindle 22/26,
Column Longitudinal (X-axis) : A.C Servo 7 kw,
Spindle Vertical (Y-axis) : A.C Servo 4 kw,
Spindle Axial (Z-axis) : A.C Servo 4 kw,

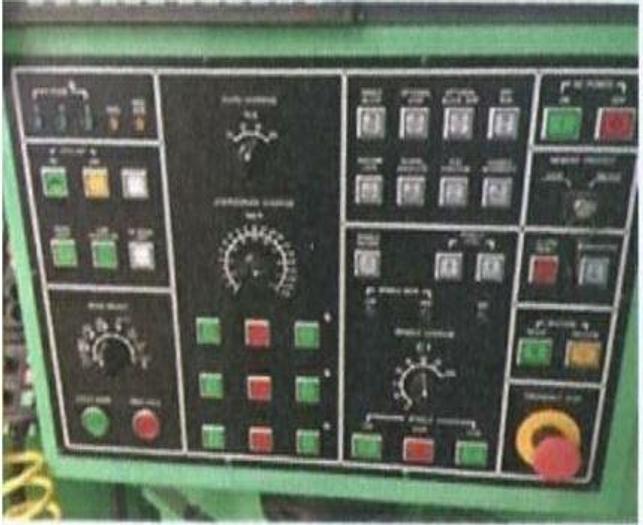

Controller System : Fanuc 0i (10.4"LCD)
Trepanning Tool : OD60*ID30*475L
Cropping Tool : OD59*ID31*398L
Technical Manual is Available
