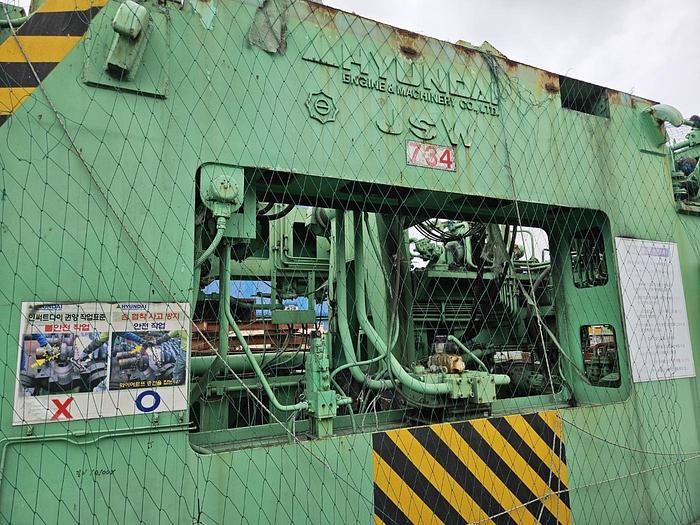

20 tons Manipulator JSW
Specifications
| Manufacturer | JSW |
| Year | 1987 |
| Condition | Used |
| Stock Number | MA2681 |
| Item condition | Good condition, disassembled & stored |
| Capacity tons | 20 |
Description

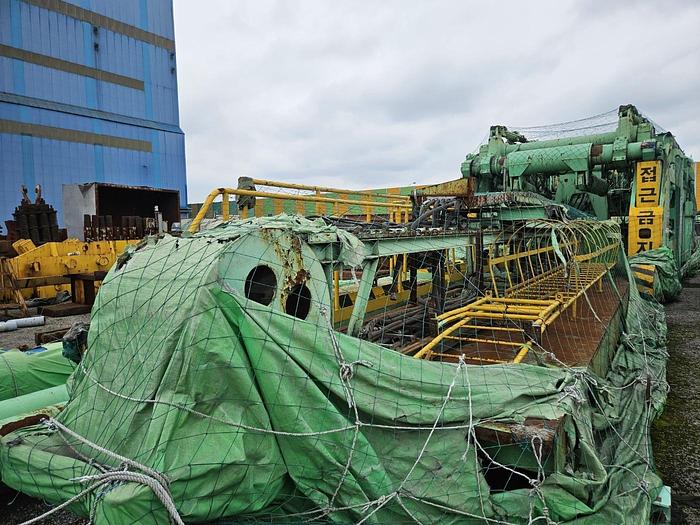

20 tons Rail Bound Manipulator
Capacity : 20 tons

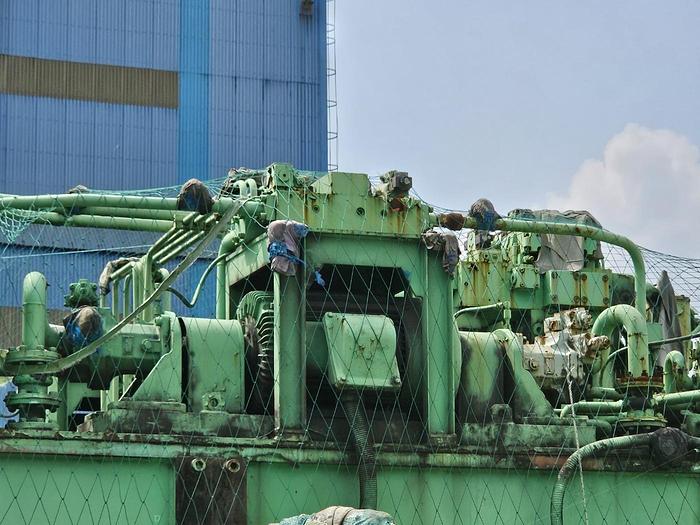

Main Motor : VEM - 110kw, 1780rpm, 440v x 4EA,
Main Pump (1) : Bosch Rexroth -
180 Bar, 338IPM, 102Kw x 4ea,
Main Pump (2) : Bosch Rexroth -
22 Bar, 116IPM, 4.3Kw x 4ea,
Main Pump (3) : Bosch Rexroth -
210 Bar, 14IPM, 5.1Kw x 4ea,
Hydro Pressure : 210 Kg/mm2,
Carring Capa. : 20 tons,

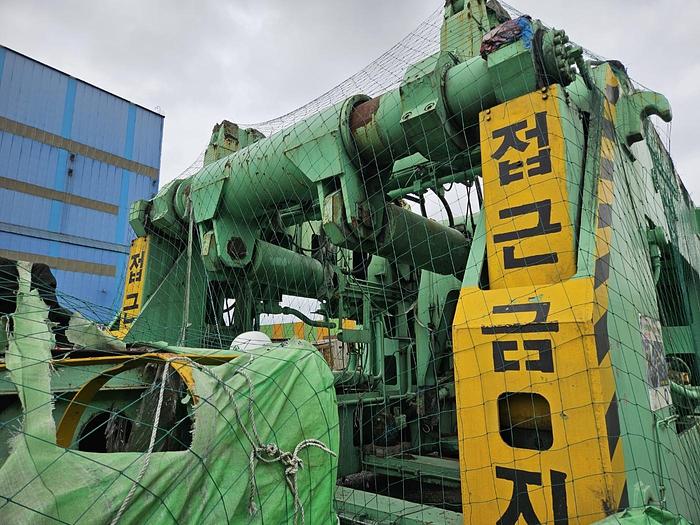

Tong Clamping Moment : 40 tons,
Max. Tong Height Position : 1700 mm,
Min. Tong Height Position : 1000 mm,
Max. Tong Opening Size : 1100 mm,
Min. Tong Opening Size : 400 mm,
Rail Length : 7775 x 2ea, 7150 x 2ea,
8140 x 2ea, 7420 x 2ea,
Rail Bolt Hole Pitch : 250 mm,
Pin Rack : (990/7 x ⌀70) x 2ea,
(1980/17 x ⌀70) x 24ea.
