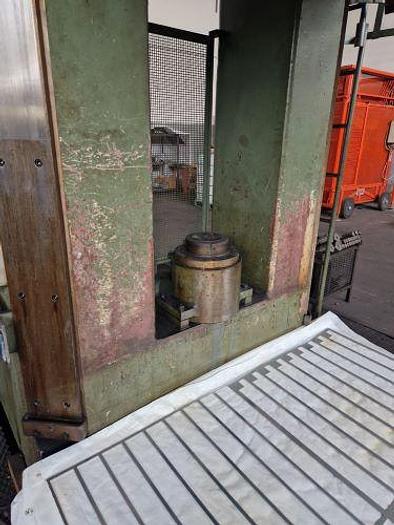

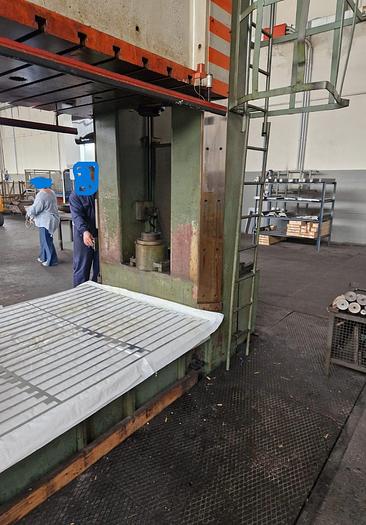

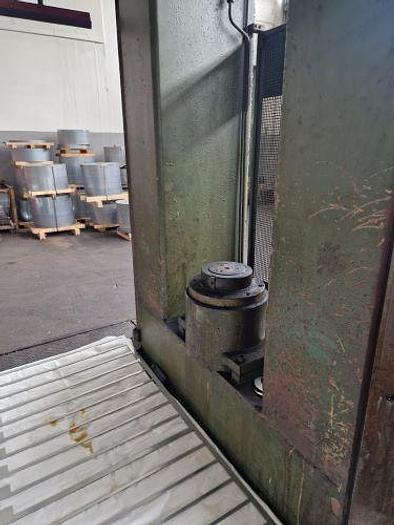

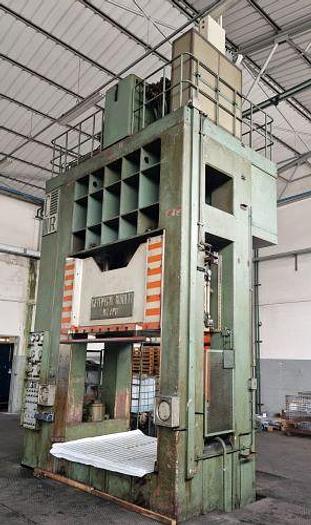

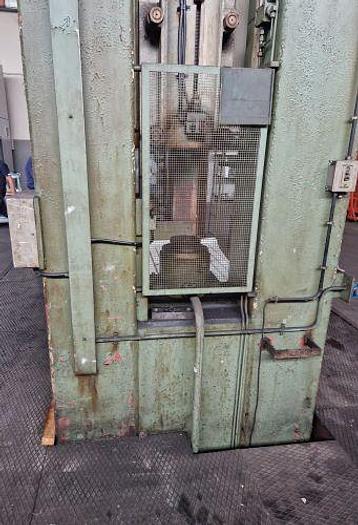

400 tons Press Sheet Stamping Hydraulic Cropi 2e

H-frame Press

Capacity : 400 tons,

Number of pistons : 1,

Stroke : 1100 mm,

Table dimension (X-Y) : 2000 X 1500 mm,

Slide dimension (X-Y) : 2000 x 1500 mm,

Light at T.D.C : 1400 mm,

Cushion Area (X-Y) : 1800 X 1300 mm,

Cushion stroke : 600 mm,

Cushion power : 200 tons,

Type of the ejector in the slide :Mechanic

Power of the ejector in the slide : 31 tons,

Stroke of the ejector in the slide : 350 mm,

Weight : 58 tons,

Height : 5800 mm,

Front : 3000 mm,

Deep : 1910 mm.
