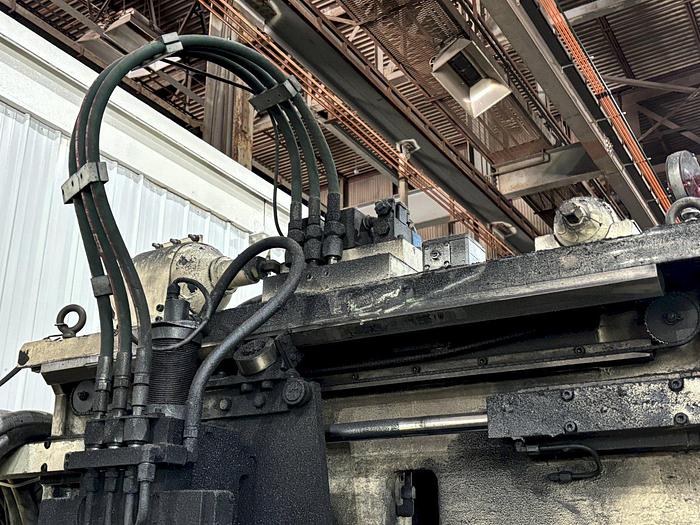

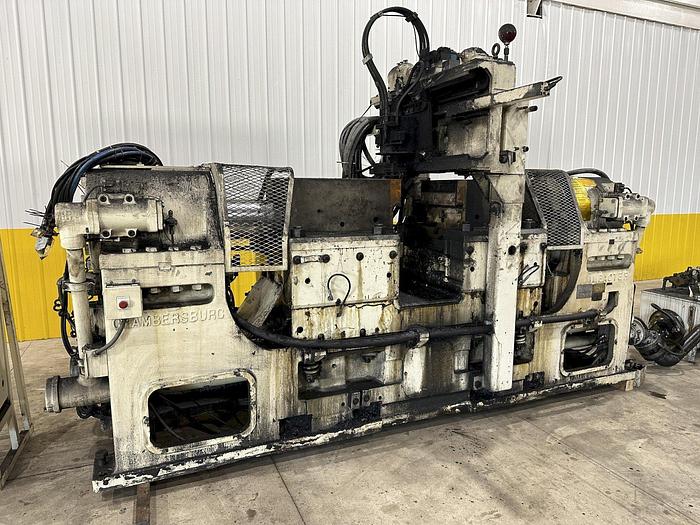

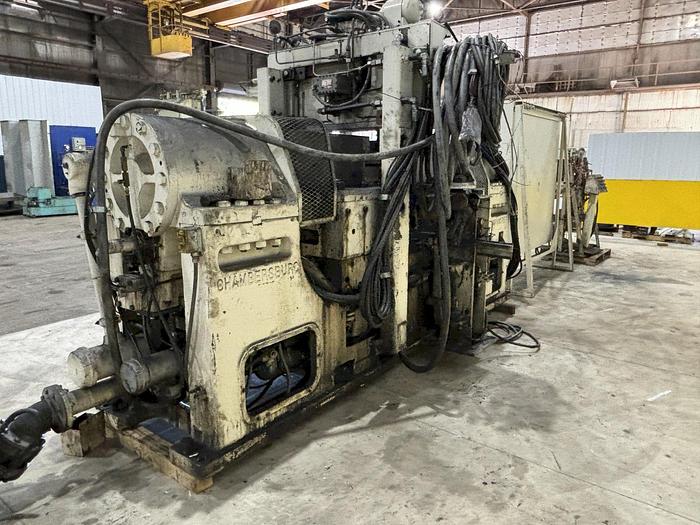

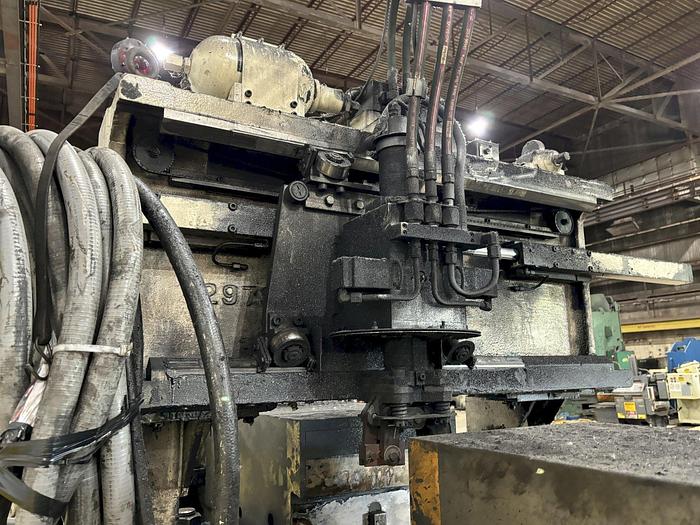

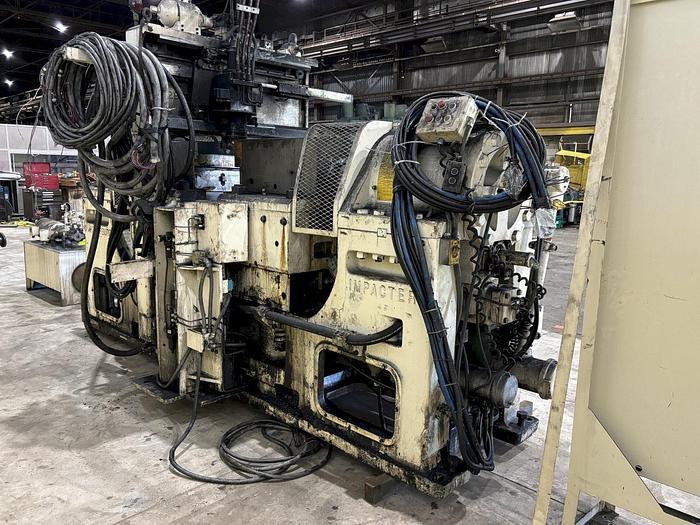

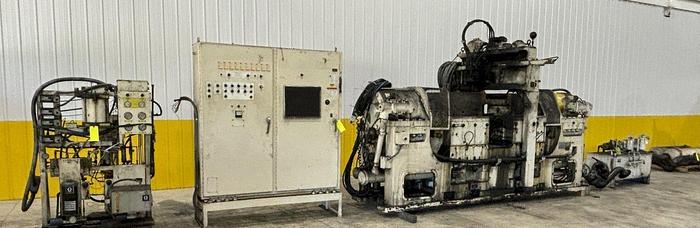

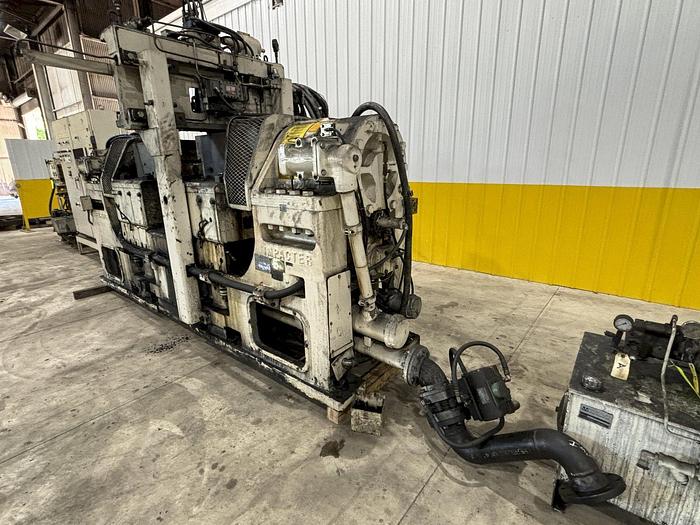

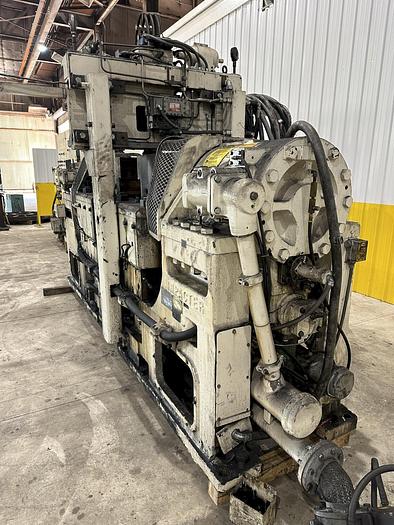

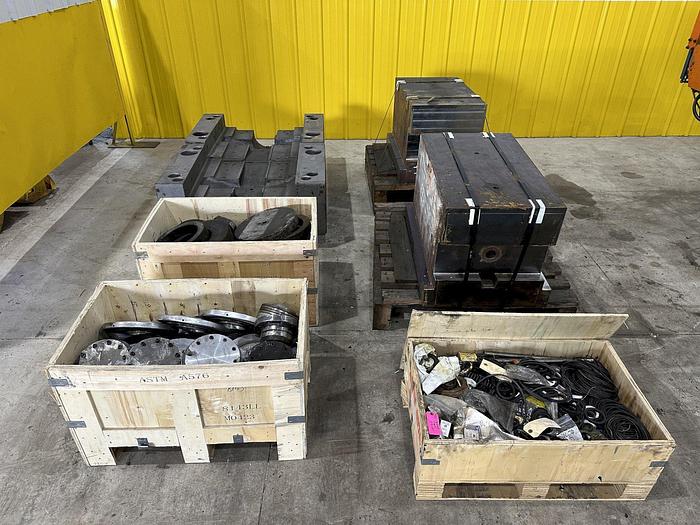

Upsetter Chambersburg 8MP

Blow force : 8,000 lbs

Bore diameter : 450 mm

Stroke :  200 mm,

Daylight between dies : 250 to 375 mm,

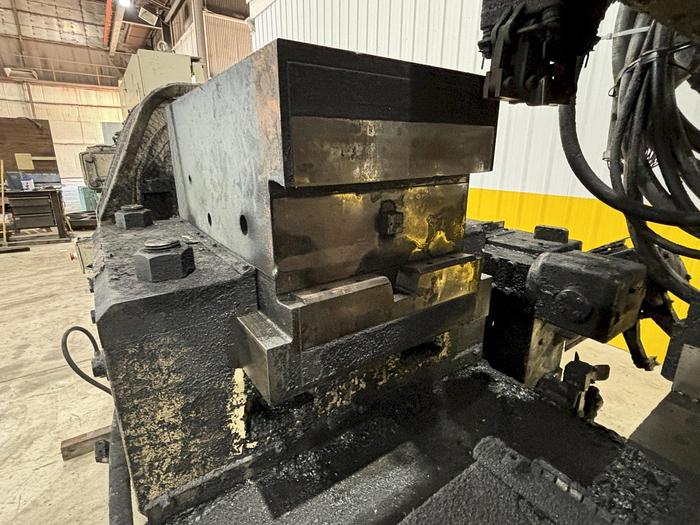

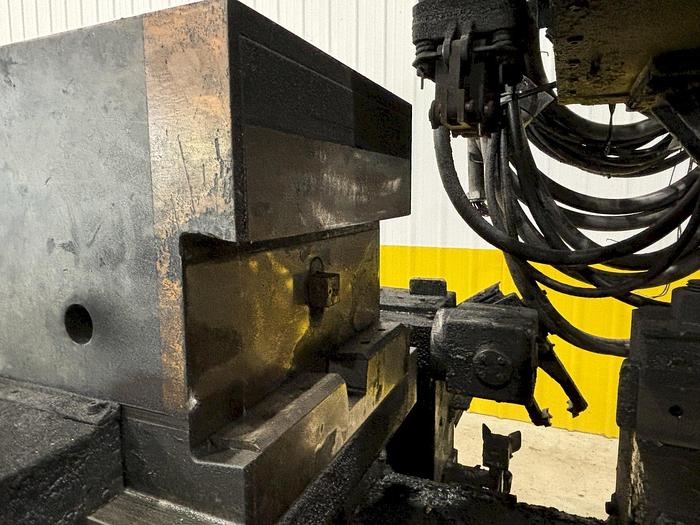

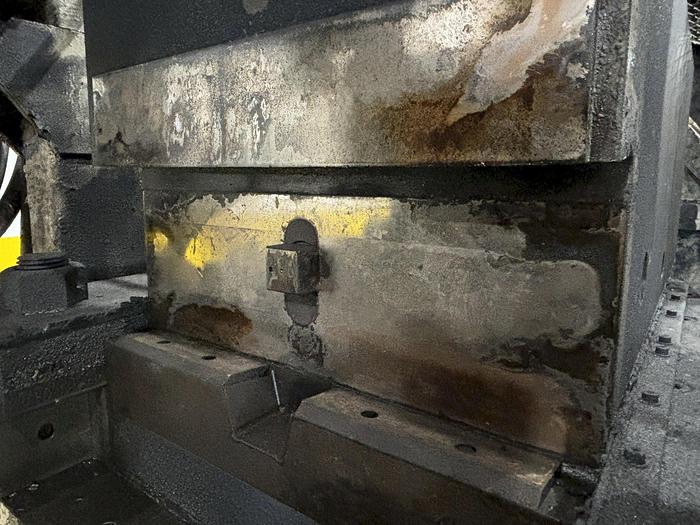

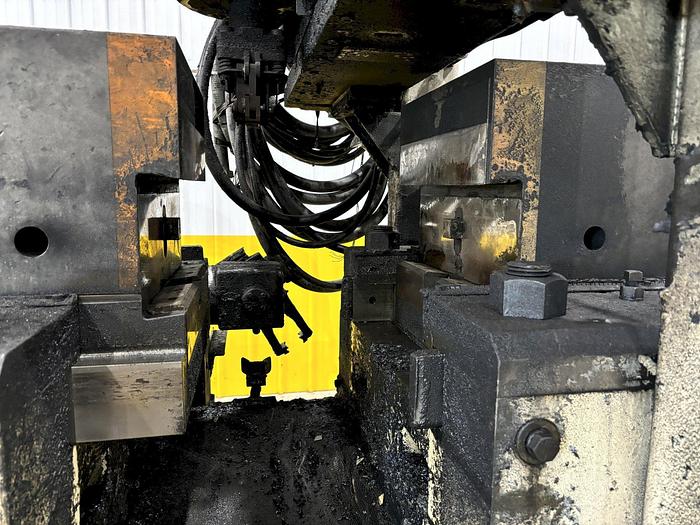

Die area : 475 x 500 mm,

Blows per minute :  140  max

Intake : 100 mm,

Exhaust (each end)  : 100 mm

Guide plate . :  Yes

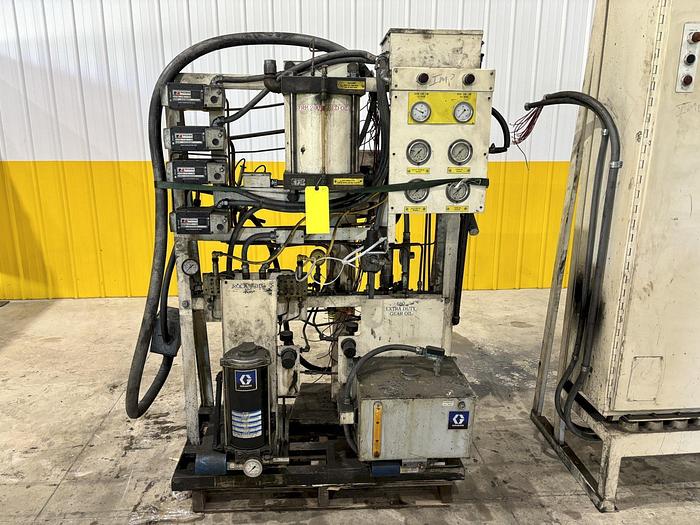

Die lube system  :  Automatic

Transfer index arm  :  Automatic

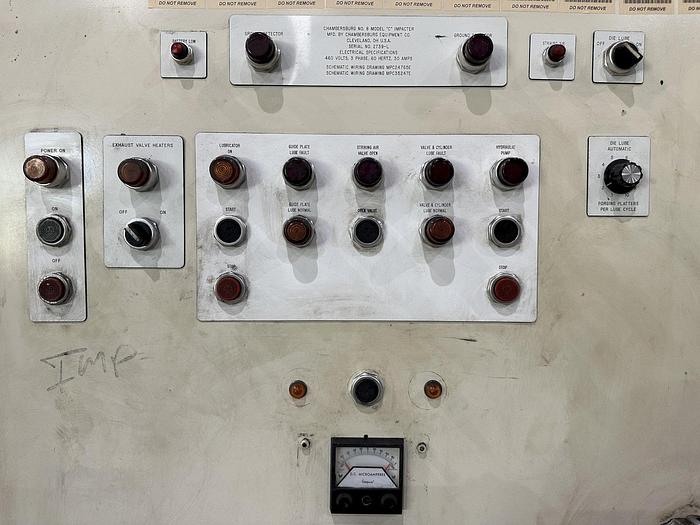

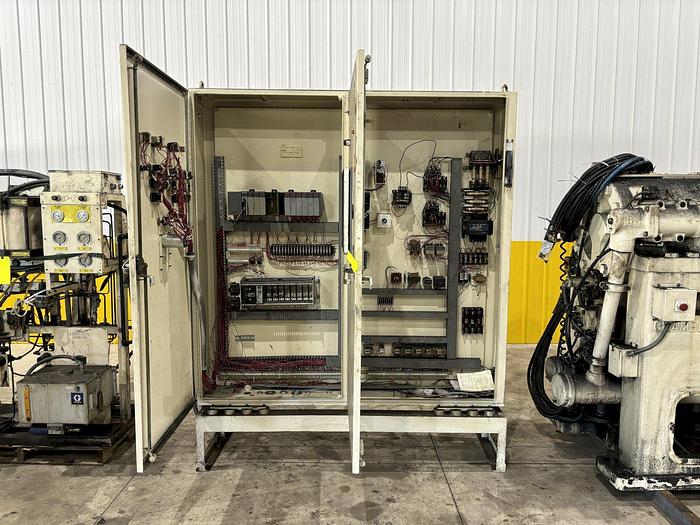

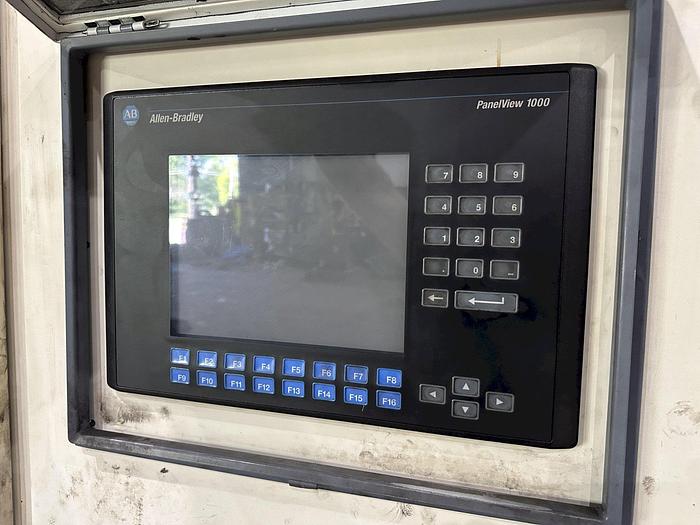

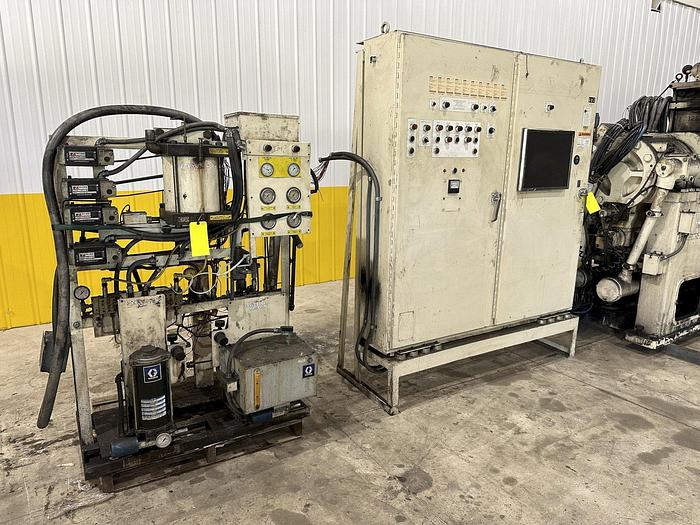

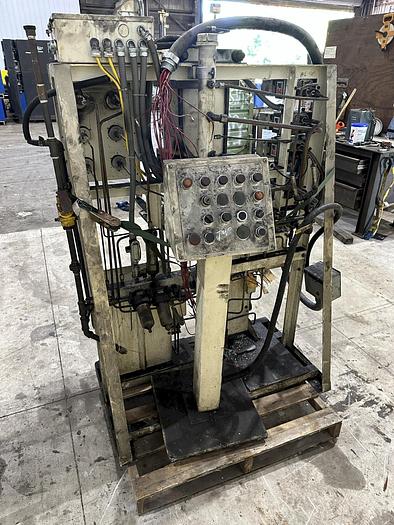

Control panel : Yes, allen bradley

Operator control station :  Yes

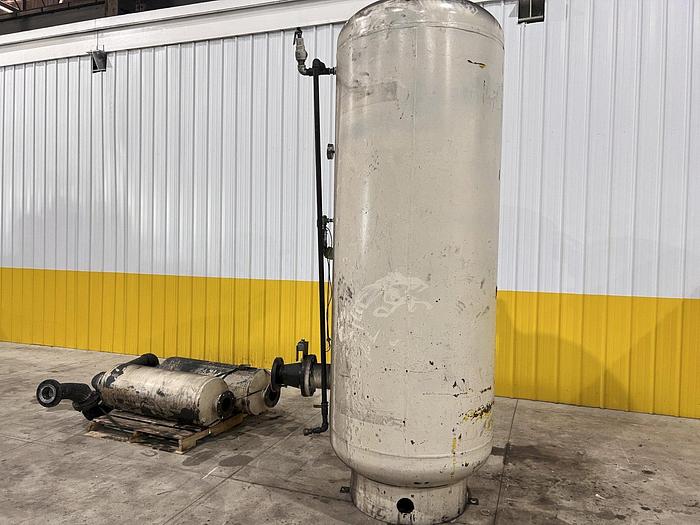

Air surge tanks : Yes

Discharge conveyor :  Yes

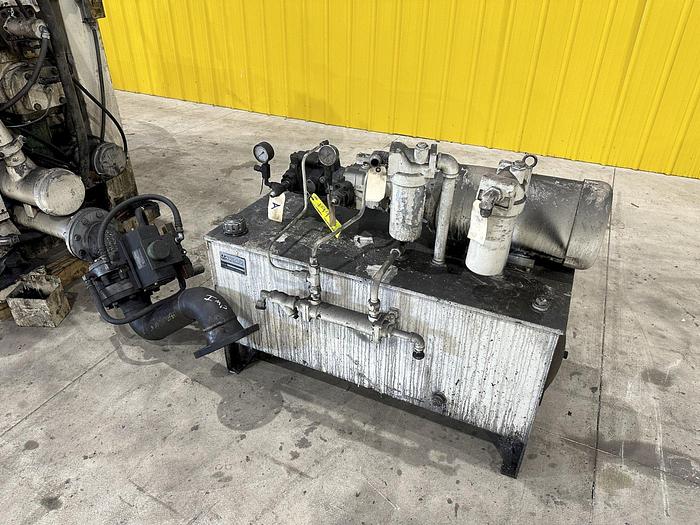

Hydraulic unit : 25 hp

Rebuilt 2016.

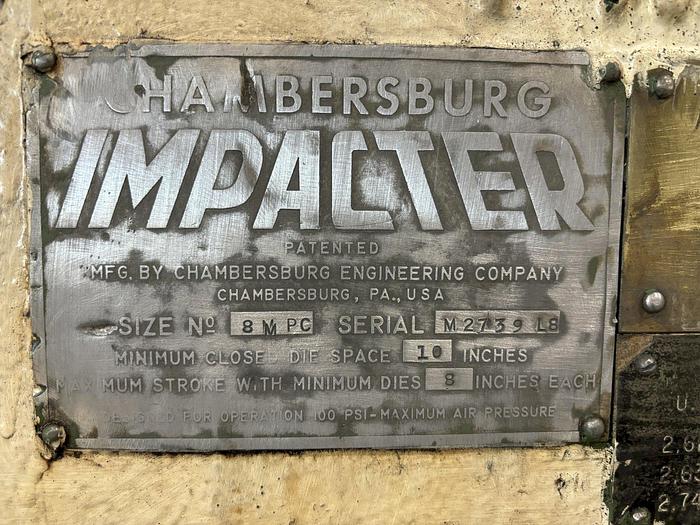

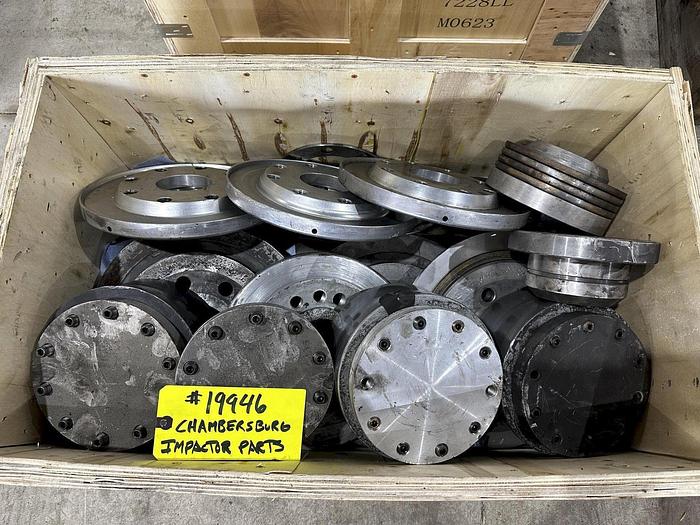

Impactor forging was developed where the force(counter-blow)

Of impact is absorbed by the impact elements, thereby

Elimination the necessity for heavy foundations and

Anvil structures ordinarily associated with suck apparatus.

Features like programmable enery levels, blow patterns, and

Automatic stock handling produce a more uniform and

Higher volume production
