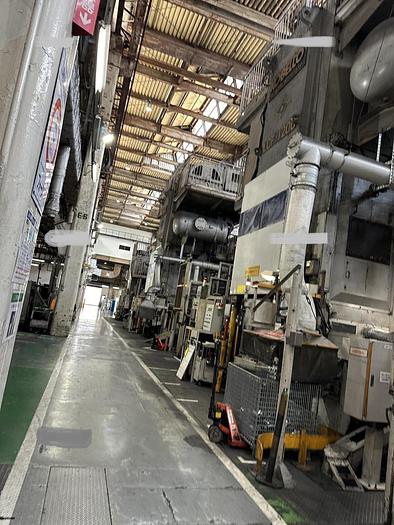

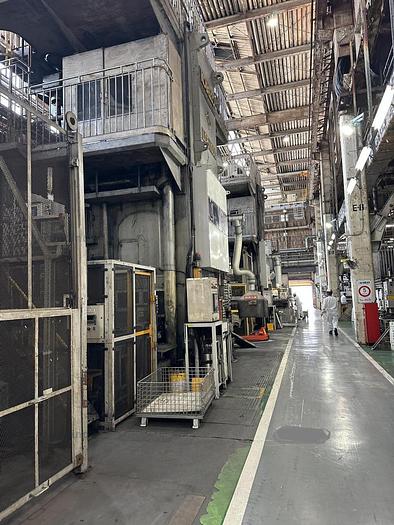

1200 tons Press Cold Forging Kobelco LCF-1200

Capacity : 1200 tons,

Forming Stages: 1,

Press Size:

Width : 3000 mm,

Height : 9000 mm,

Press Weight : Approximately 190 tons.

Dimensions and Layout:

Die Height : 800 mm,

Slide Dimensions (Left to Right) : 1000 mm,

Slide Dimensions (Front to Back) : 1200 mm,

Bolster Dimensions (Left to Right) : 1000 mm,

Bolster Dimensions (Front to Back) : 1200 mm,

Thickness : 200 mm,

Slide Adjustment Length : 30 mm,

Stroke Length : 500 mm,

Stroke Rate: 15 to 20,

strokes per minute (SPM),

Slide KO - Air Timing: (not specified, please provide details if available)

Main Motor: 170 kW/DC,

Press Weight: Approximately 190 tons.

Auxiliary Equipment Specifications:

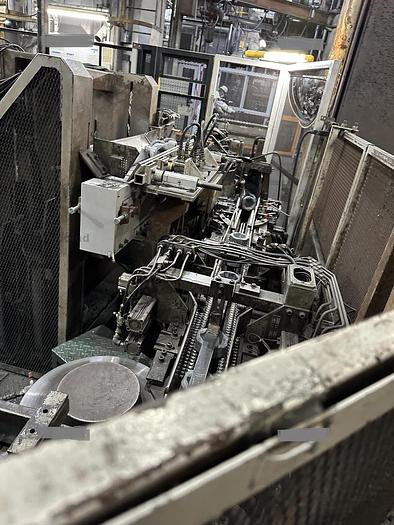

 1. Material Feeding Device:

Manufacturer: Yoshishin Industry

Installation Date: 1990

2. One-Component Lubricant Applicator:

Manufacturer: RCD Techno

Type: Rotating Drum

Installation Date: 2004

3. Local Exhaust Ventilation:

Manufacturer: Nitto Kakoki

Type: Steam Exhaust Fan

Installation Date: 2001

4. QDC (Die Exchange Device):

Manufacturer: Kobe Steel

Die Set Changing Device

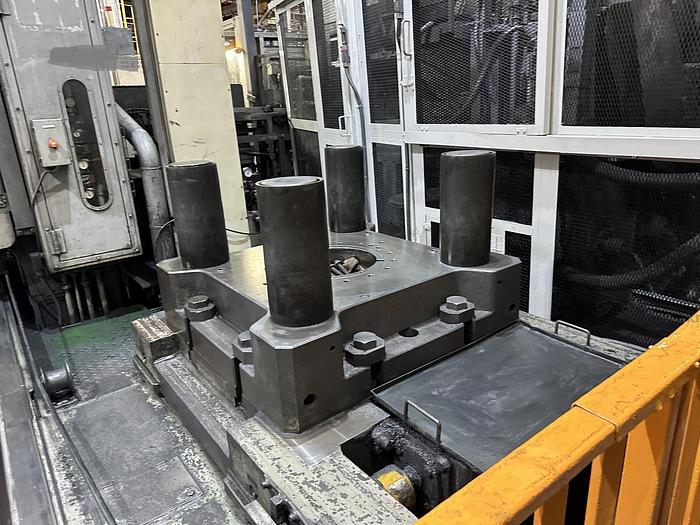

Die set (1 upper/2 lower)

Installation Date: 1983

5. Exit Dispensing Device:

Manufacturer: Yoshishin Industry

Installation Date: 1983

6. LA Furnace Loading Synchronous Conveyor:

Manufacturer: Yoshishin Industry

Total Length: Approximately 6M

Installation Date: 1990

7. Dust Collector:

Manufacturer: Asahi Electric Industry

Type: Dry Method

Includes Duct

Installation Date: 2003

8. Current Monitoring Device:

Manufacturer: HM (In-house production)

Function: Current/Temperature Monitoring of Each Part o Installation Date : 2003,

9. Oil Applicator: o Installation Date: 2018,

10. Jib Crane:

Load Capacity : 490 kg

Arm Length : Approximately 2600 mm,

Installation Date: 1983

Additional Features

Control Panel: Located on the second floor

Automatic Transport Mechanism (Loader/Unloader):

Underground Pit : Accommodates one hydraulic unit.
