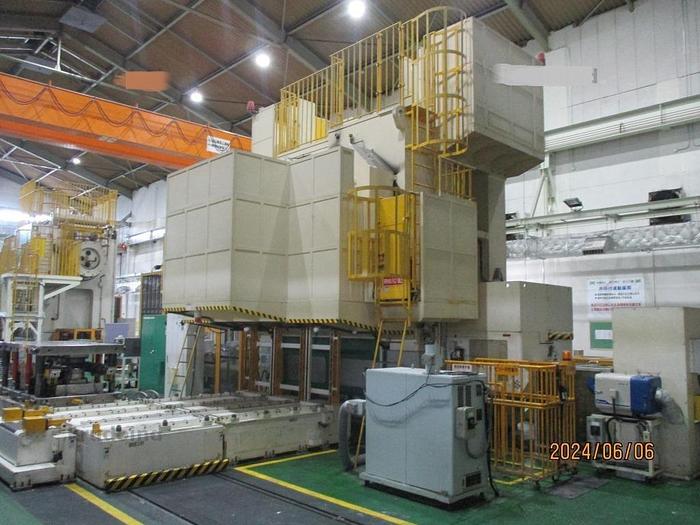

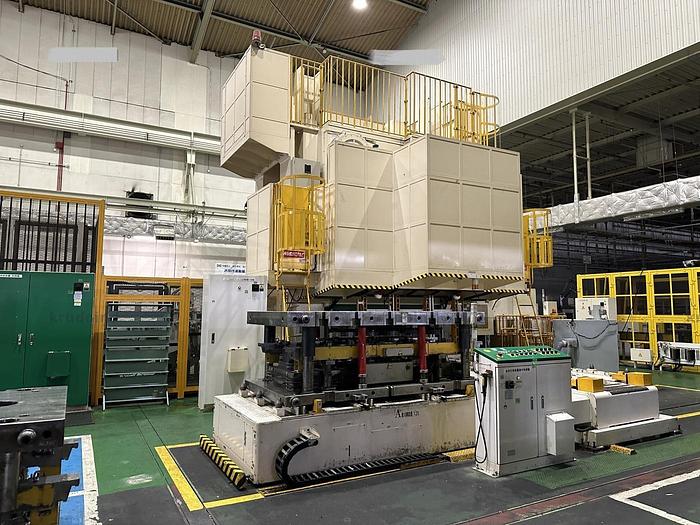

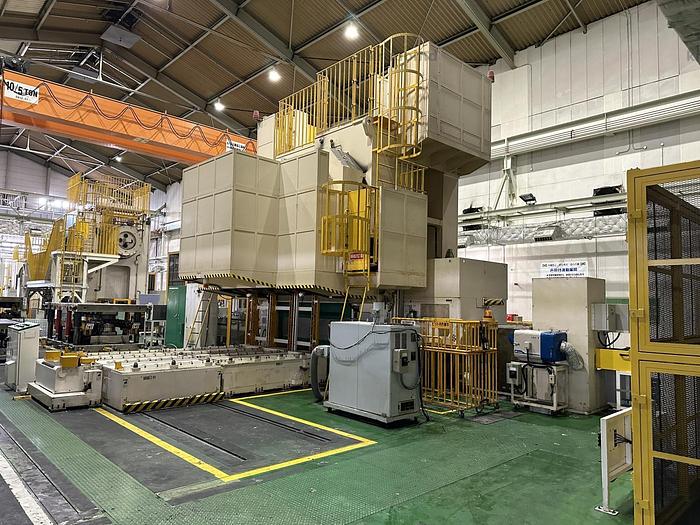

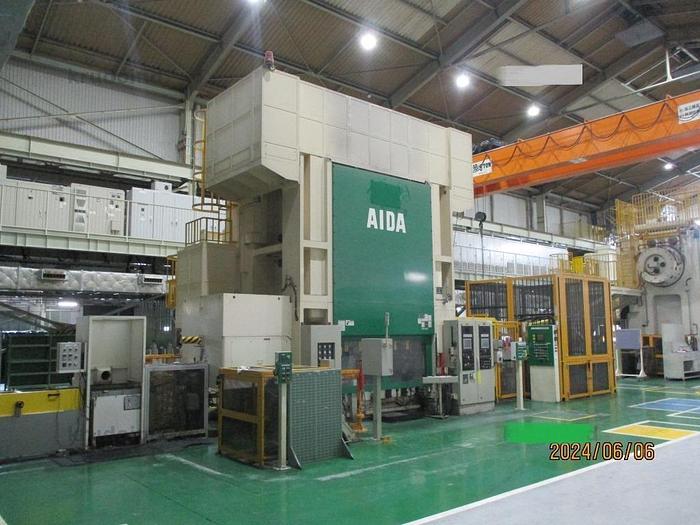

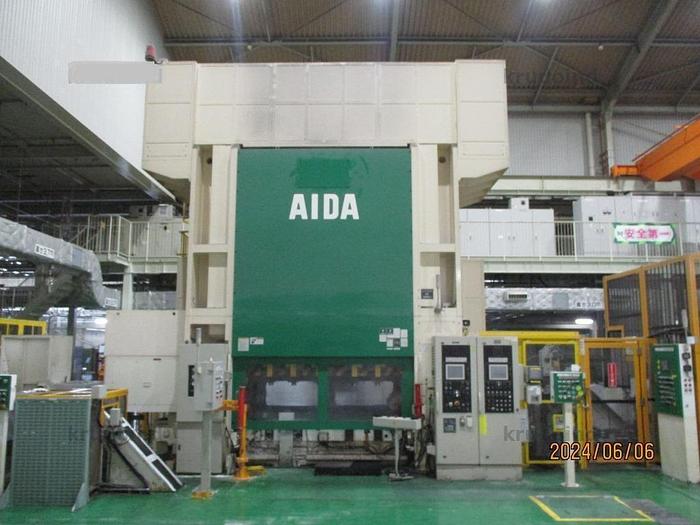

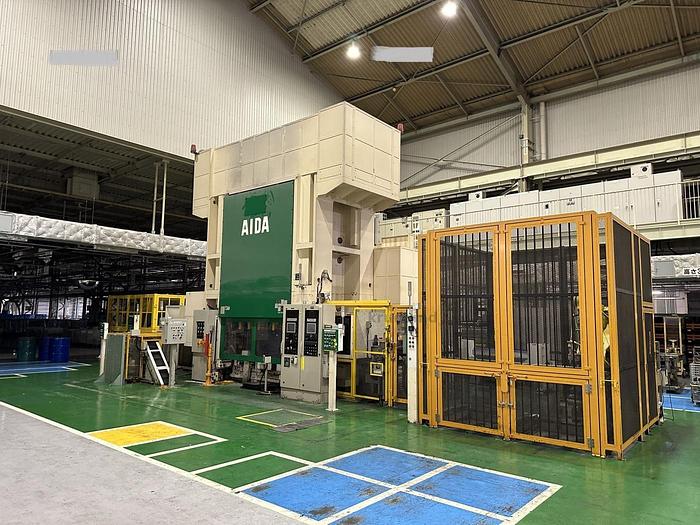

Press Cold Forging Aida UL1200

Capacity : 1200 tons,

Stroke : 250 mm,

Idle Continuous Stroke Rate : 15-40 spm,

Die Height : 750 mm,

Slide Adjustment : 100 mm,

Continuous Operation :

15 spm, 71 kJ,

26 spm, 167 kJ,

30 spm, 174 kJ,

40 spm, 181 kJ,

Intermittent Operation: 25 spm, 12 cycles, 198 kJ,

Micro-Inching : Approx. 10 spm,

Stroke Position : 10 mm above Bottom Dead Center,

Maximum Die Hanging Weight : 4.0 tons,

Total Mass Above Floor : 216 tons.

Dimensions and Layout :

Slide Dimensions (L x W) : 2450 x 1000 mm,

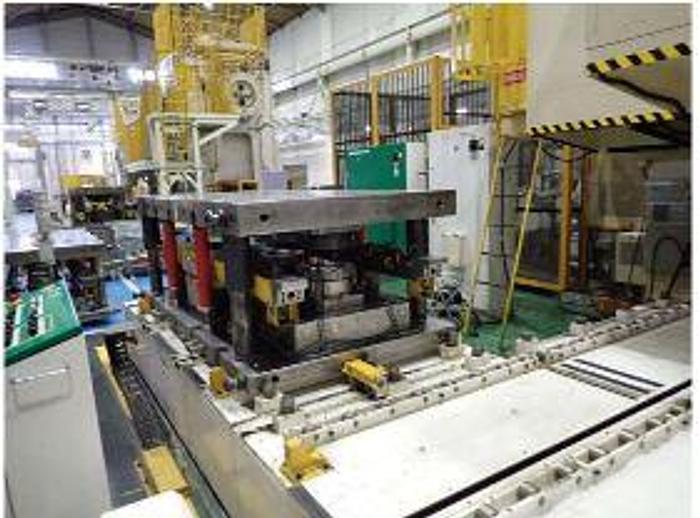

Bolster Dimensions (L x W): 2450 x 1200 mm,

Bolster Thickness : 250 mm,

Bolster Surface Height from Floor: 800 mm,

Side Opening Dimensions (W x H): 1050 x 510 mm,

Power Supply and Utilities :

Main Motor : INY 160 kW,

Power Supply :

Main Motor : AC400V, 50Hz,

Other Motors : AC200V, 50Hz,

Control Circuit Voltage : AC100V, DC24V,

Supply Air Pressure: 0.5 MPa, boosted to 0.6 MPa

Special Equipment Features:

Variable Speed Drive : Main motor with regenerative control,

Reversing Installation : Not available for press-down tests,

Micro-Inching : Low-speed rotation type for the main motor,

Flywheel Brake : Interlinked with the main motor,

Crank Angle Indicator : Electronic, within the main control panel,

Main Motor Power Meter : Digital display,

Press Speed Meter : Digital display,

Die Height Meter : Digital display with a resolution of 0.01 mm,

Die Height Adjustment : Electric manual via push-button operation, automatic with digital

setting at 0.1 mm increments,

Load Measurement : Graphic display, ALA2 model strain gauge type (also detects overloads),

Lubrication System : Forced circulation (installed in the pit), automatic intermittent lubrication,

Hydraulic Equipment Operation : Installed in the pit,

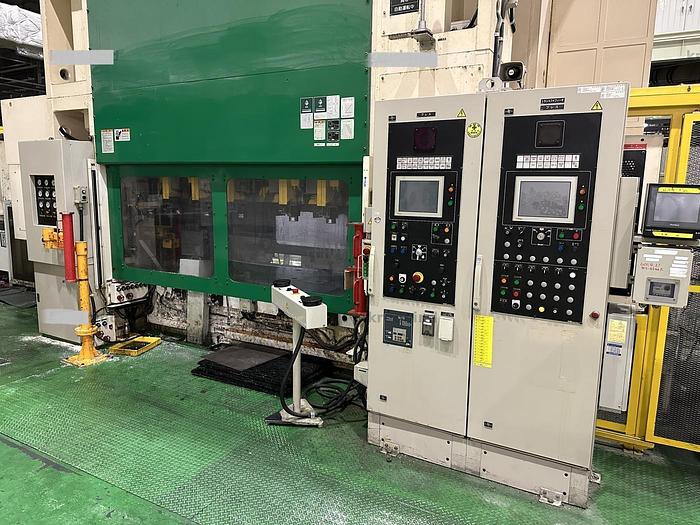

Control Panel : Stand-alone type, within 30 meters,

Operator Console : Located at the front right frame,

Operator Stand : Dual-hand operation with a 3-meter cable,

Receptacle for Operator Stand : Located at the front right frame,

Timing Switch : Digital, with four spare circuits,

Production Counter : Reset type with a stop function after a set number, 6-digit display,

Emergency Stop Button : Lock type, positioned at various points around the room and at the

operator stand,

Setup Stop Device : Switches between top dead center and 600 mm stroke.
