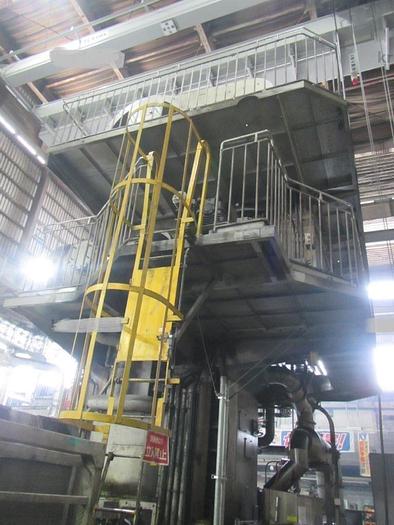

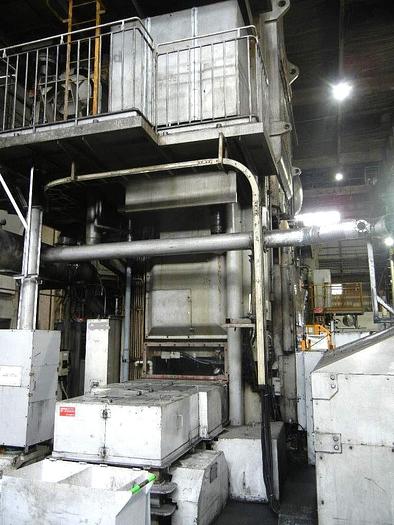

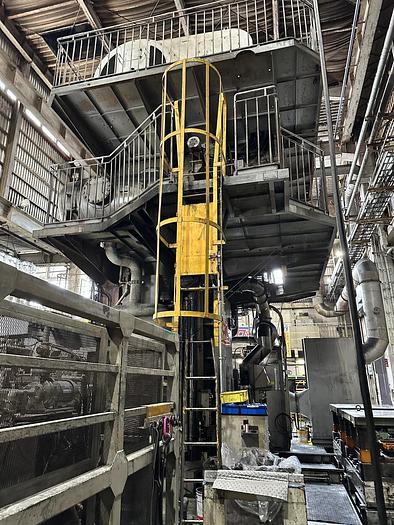

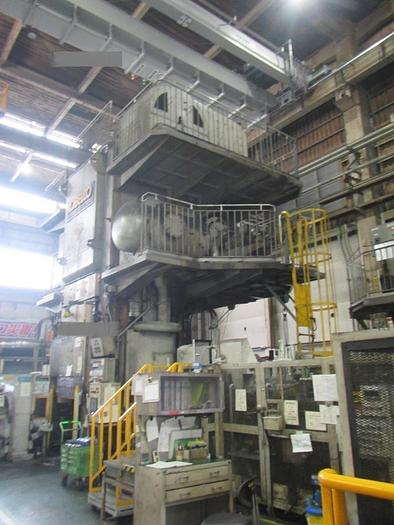

Press Cold Forging Kobelco(Kobe Steel) LCSH-1600

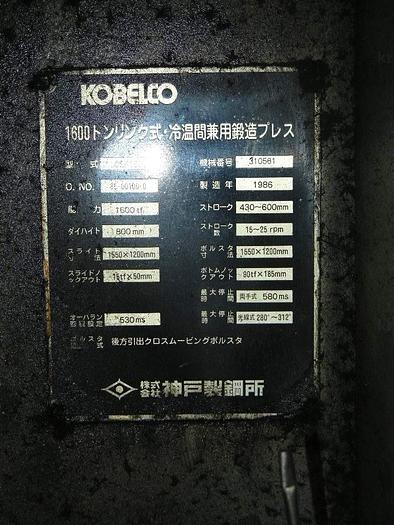

Specifications
| Manufacturer | Kobelco(Kobe Steel) |
| Model | LCSH-1600 |
| Year | 1986 |
| Condition | Used |
| Stock Number | MA2638 |
| Item condition | Good condition |
| Capacity tons | 1600 |
Description
Capacity : 1600 tons,
Stroke : 460 to 600 mm,
Strokes per minute (SPM) : 15 to 20,
Press Size:
Width : 4000 mm,
Height : 9000 mm,
Die Height : 800 mm,
Slide Dimensions:
Left to Right : 1550 mm,
Front to Back : 1200 mm,
Bolster Dimensions :
Left to Right : 1550 mm,
Front to Back : 1200 mm,
Thickness : 200 mm,
Slide Adjustment Length : 30 mm,
Slide KO : Cam Type
Main Motor : 170 kW/DC
Press Weight : Approximately 270 tons.

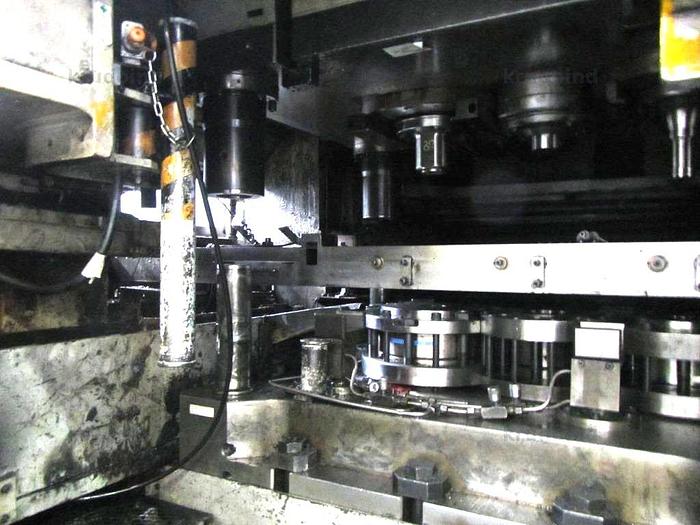

Forming Stages: 3
Auxiliary Equipment:
-Material Supply Device:
Installation Date : 2011
-One Component Lubricant Application Device
Rotating Drum Type
Installation Date : 2003

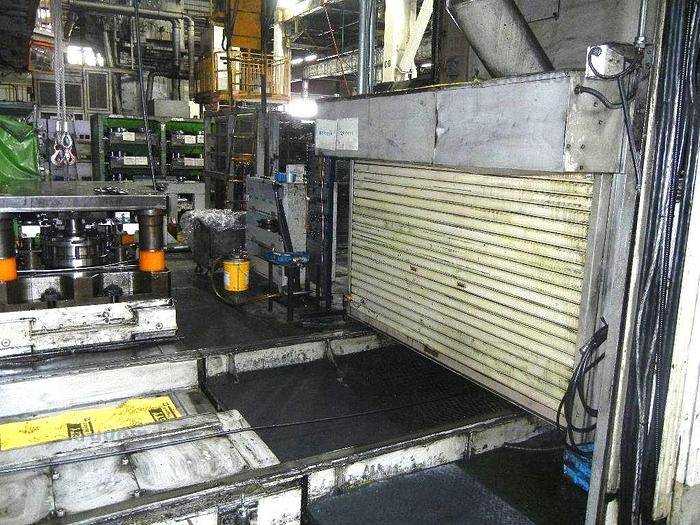

-QDC (Die Change Device)
Manufacturer : Kobe Steel
Die Set Changer
Two Die Sets, Upper and Lower
Installation Date: 1987

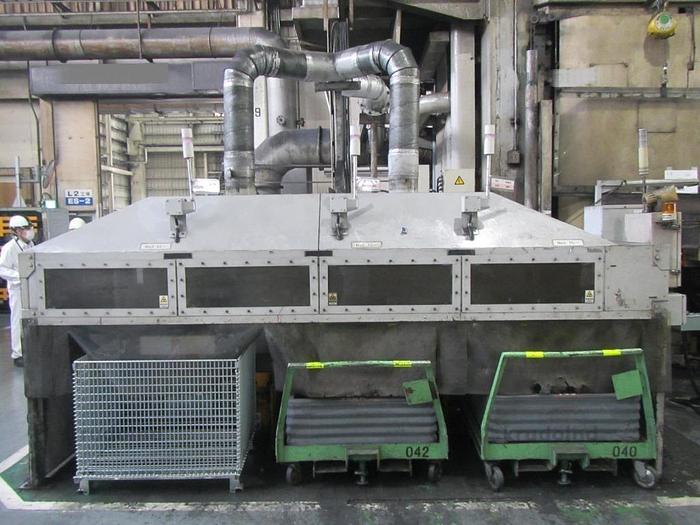

-Dust collector :
Manufacturer : Quan Chemical Machinery
Oil Mist Catcher
Indoor, Duct Included
Installation Date : 2003
-Exit Dispensing Device :
Manufacturer : Goyu Kogyo
Installation Date : 2018
-Current Monitoring Device:
HM in-house production
Current and Temperature Monitoring for Each Part
Installation Date : 2003
Special Features:

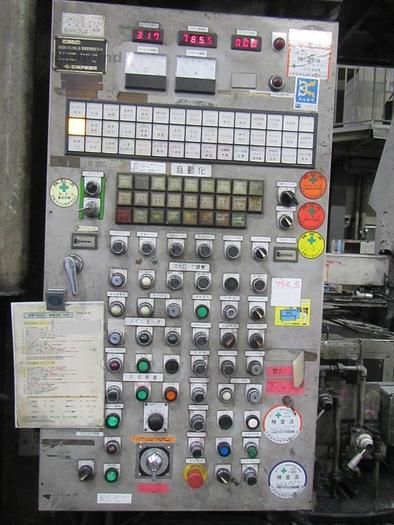

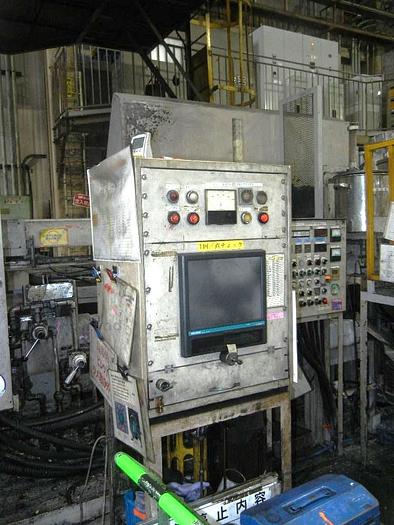

Control Panel : Located on the second floor
Underground Pit : Accommodates one hydraulic unit
Transport Mechanism :
-Feed, Clamp, Lift mechanisms included
-Automatic transport mechanism
