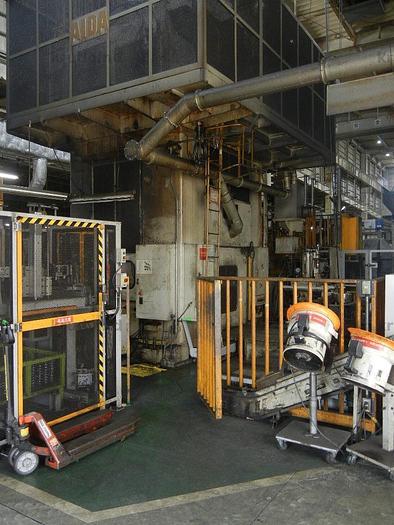

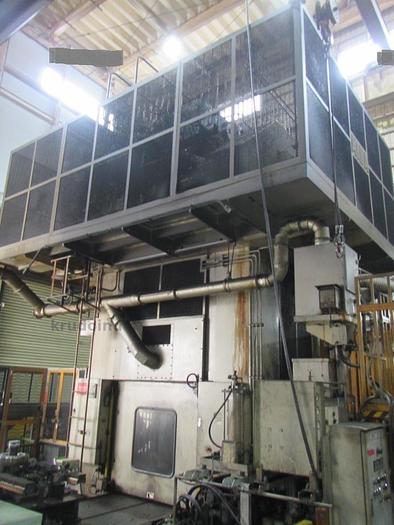

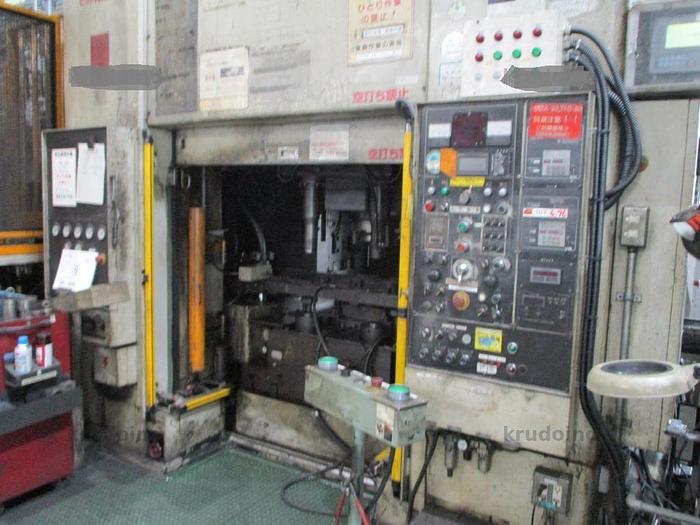

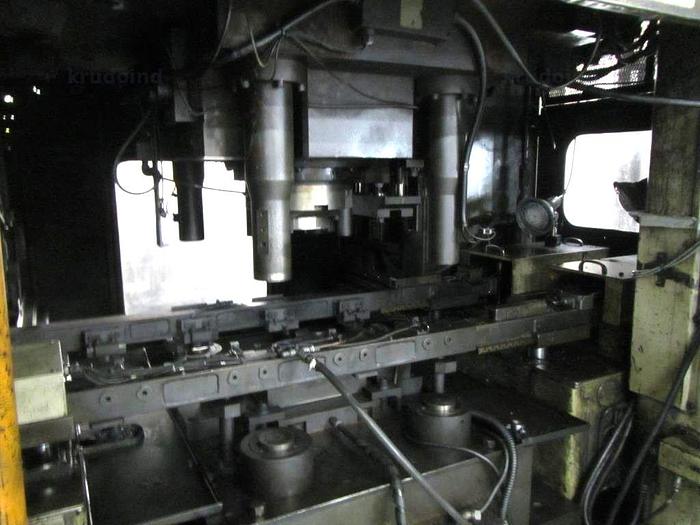

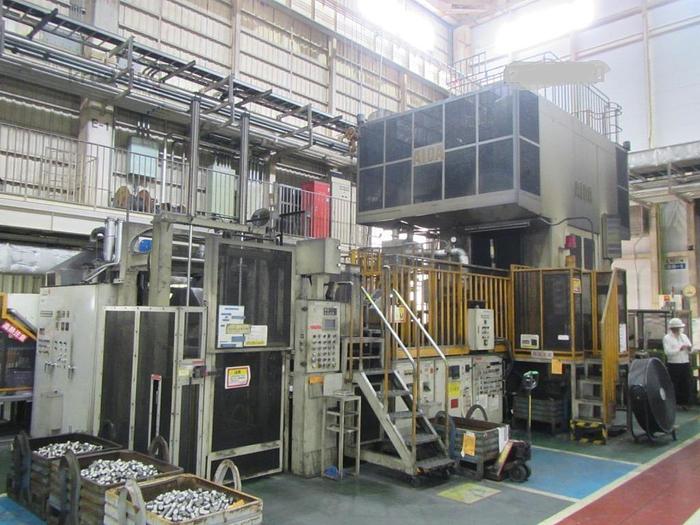

Press Warm Forging Aida FMX-L2

Price

Contact us for price

orCall +919920651051

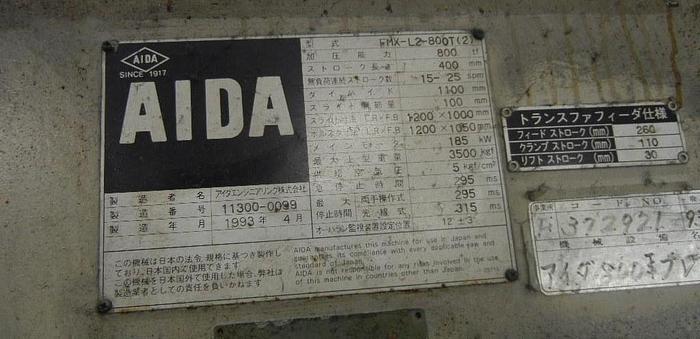

Specifications

ManufacturerAida
ModelFMX-L2
Year1993
ConditionUsed
Stock NumberMA2637
Item conditionGood condition
Capacity tons800

Description

Warm Forging

Capacity : 800 tons,

Press Size (width x height) : 4500 x 8000 mm,

Die Height : 1100 mm,

Slide Dimensions (Left to Right) : 1200 mm,

Slide Dimensions (Front to Back) : 1000 mm,

Bolster Dimensions (Left to Right) : 1200 mm,

Bolster Dimensions (Front to Back) : 1050 mm,

Slide Adjustment Length : 100 mm,

Stroke Rate: 15 to 25 strokes per minute (SPM)

Stroke Length : 400 mm,

Slide KO - Air Timing,

Press Weight : Approximately 100 tons,

Main Motor : 185 kW/DC.


Auxiliary Equipment Specifications

Material Supply Device:

Manufacturer: Yoshinobu Industry

Installation Date: 1993

Lubricant Application Device:

Manufacturer: Yoshinobu Industry

Coating Fluid : ChemiLube 470

Molybdenum disulfide

Installation Date: 1993

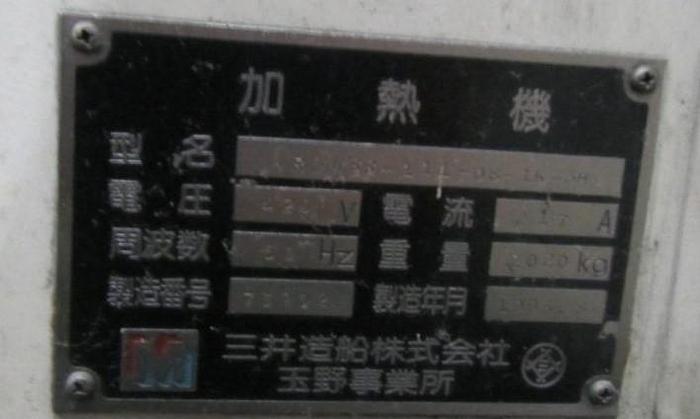

Billet Heater: 150 kW High Frequency Induction Heating'

Installation Date: 1993

Hydraulic Control Device for Presses

Manufacturer : Nichidai

For Closed-Molding Hydraulic Cushions

Installation Date: 2004

QDC (Quick Die Change Device):

Die Set Changer o Die Set (1 Upper Unit/2 Lower Units)

Installation Date : 1993

Automatic Box Packing Device:

Manufacturer : Wuyou Industry

800 kg

Installation Date: 2016

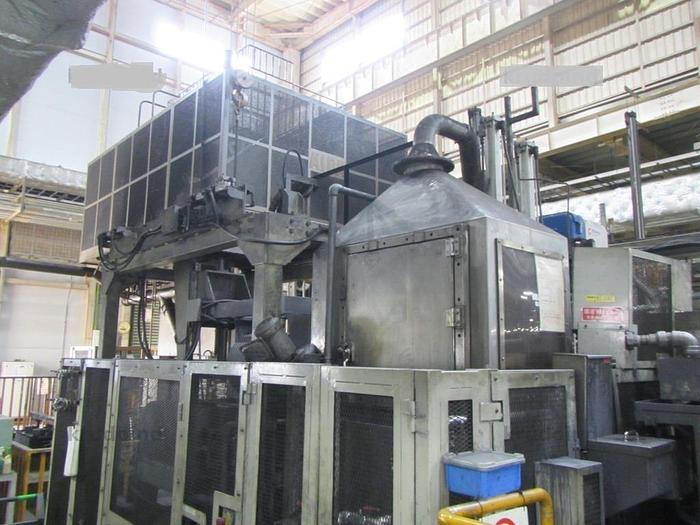

Dust Collector:

Manufacturer: Amano

Dry

Outdoor, Duct Included

Introduced: 1993


Additional Features

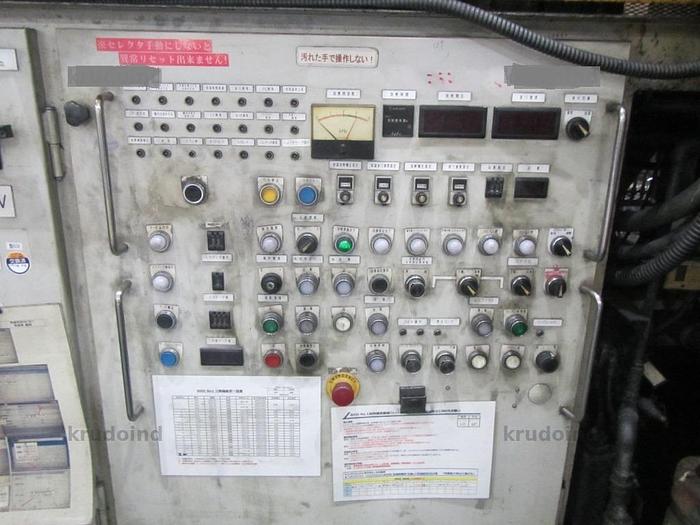

Control Panel : Location : Installed on the second floor

Automation Details : Feed, clamp, and lift mechanisms included

Underground Pit : Available: Yes (4 hydraulic units)
