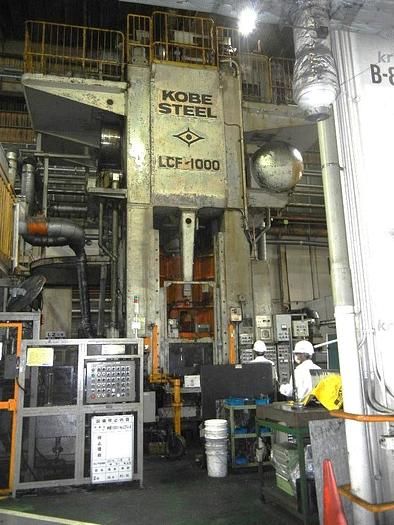

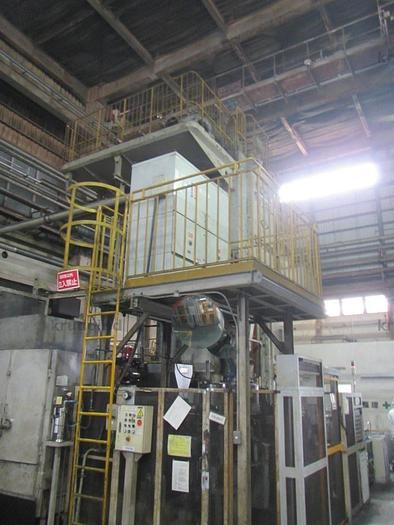

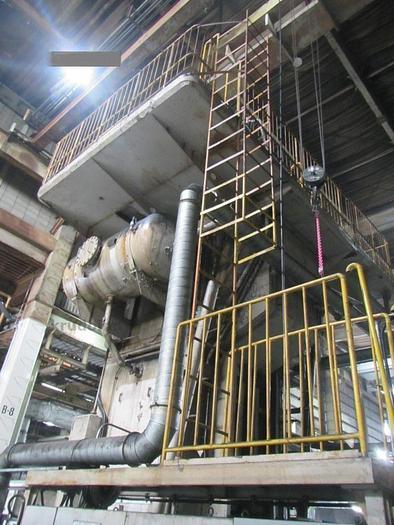

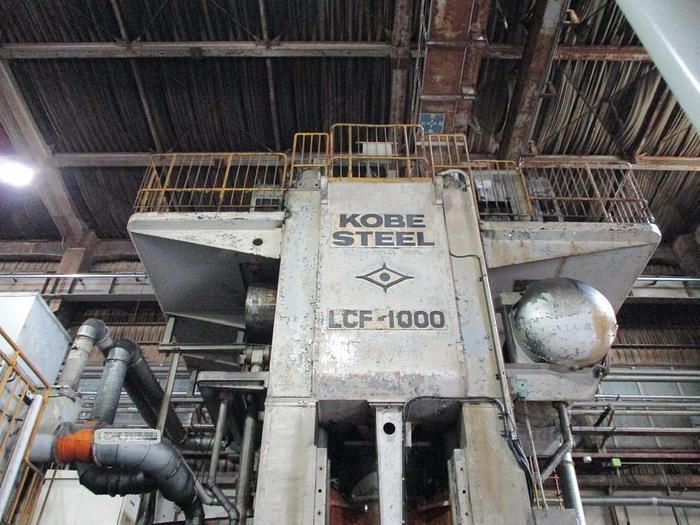

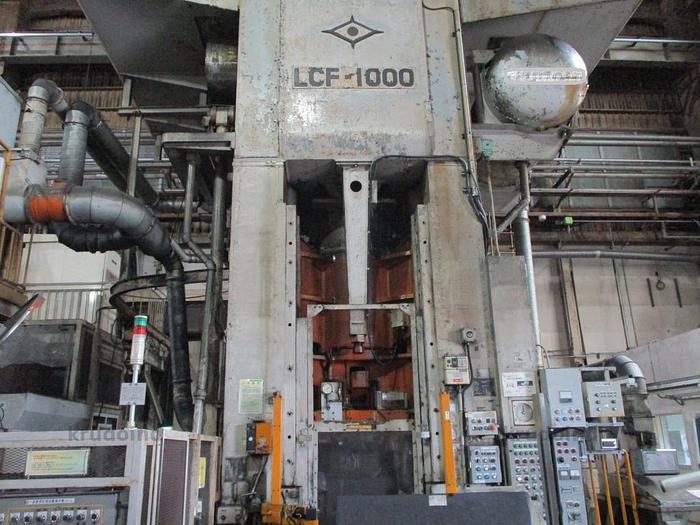

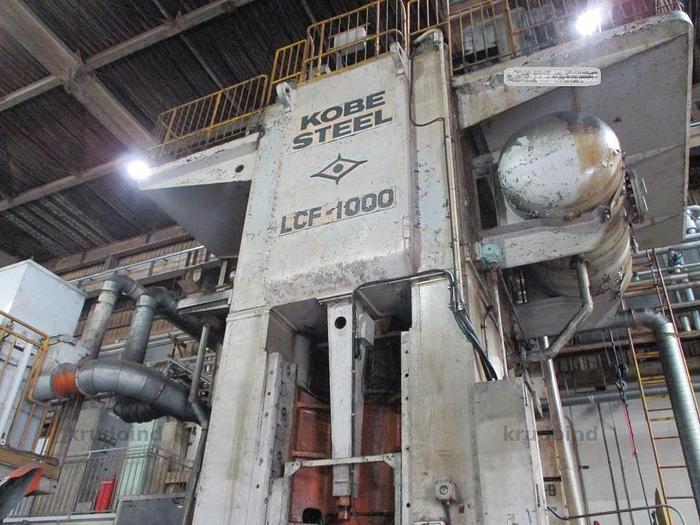

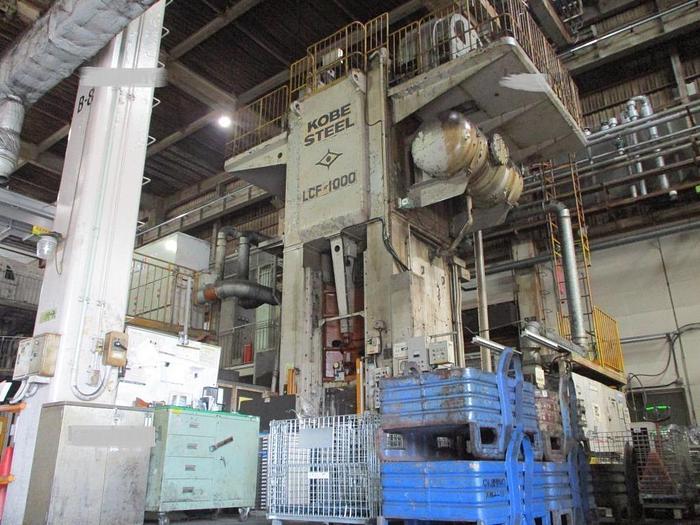

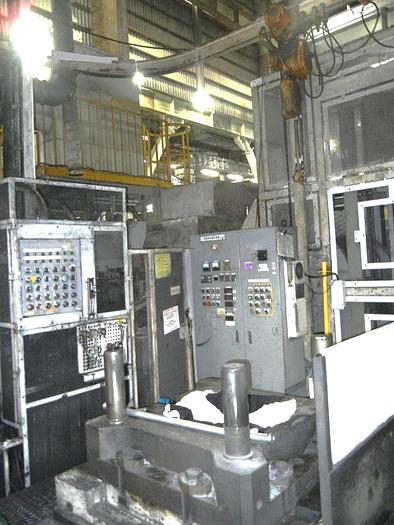

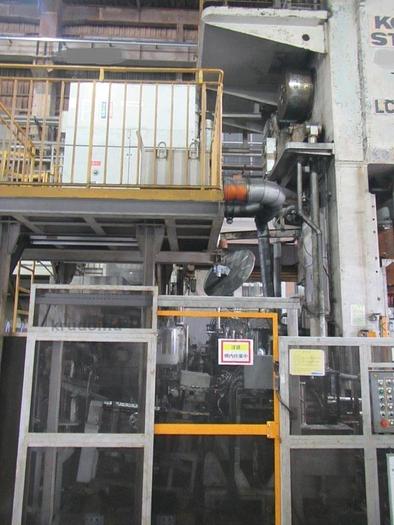

Press Cold Forging Kobelco(Kobe Steel) LCF-1000

Capacity : 1000 tons,

Stroke : 500 mm,

Strokes per minute (SPM) : 15 to 20,

Press Size:

Width : 3000 mm,

Height : 9000 mm,

Die Height : 800 mm,

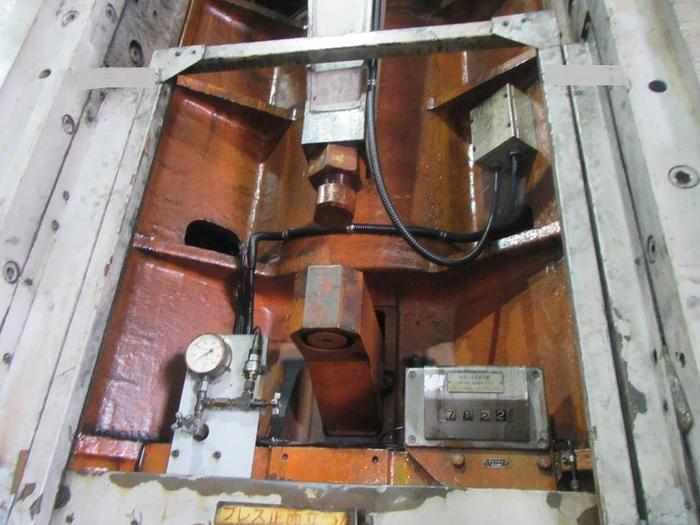

Slide Dimensions:

Left to Right : 1000 mm,

Front to Back : 1200 mm,

Bolster Dimensions :

Left to Right : 1000 mm,

Front to Back : 1200 mm,

Thickness : 200 mm,

Slide Adjustment Length : 30 mm,

Main Motor : 160 kW/DC

Press Weight : Approximately 160 tons.

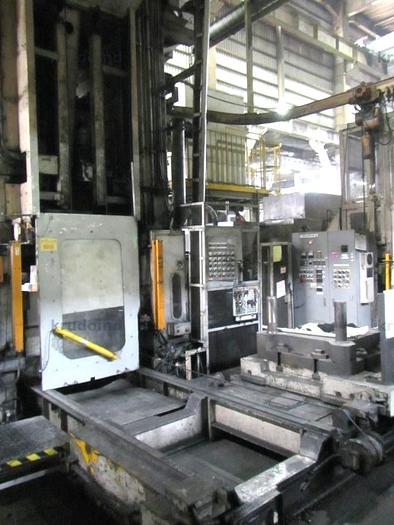

- QDC (Quick Die Change Device):

Die Set Changer

Die Set (1 Upper Unit/2 Lower Units)

Installation Date : 2007

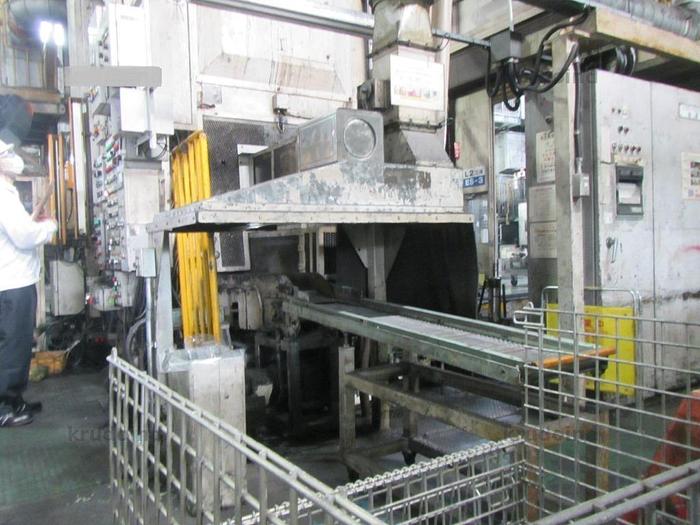

-Transport Conveyor :

Manufacturer : Tsukasa Machinery

Installation Date : 2007

-Delivery R/B:

Manufacturer : FANUC

Load Capacity – 12kg, Weight – 130 kg

Installation Date : 2008

-Move out R/B:

Manufacturer: FANUC

Load Capacity – 12kg, Weight – 130 kg

Installation Date : 2008

Additional Features

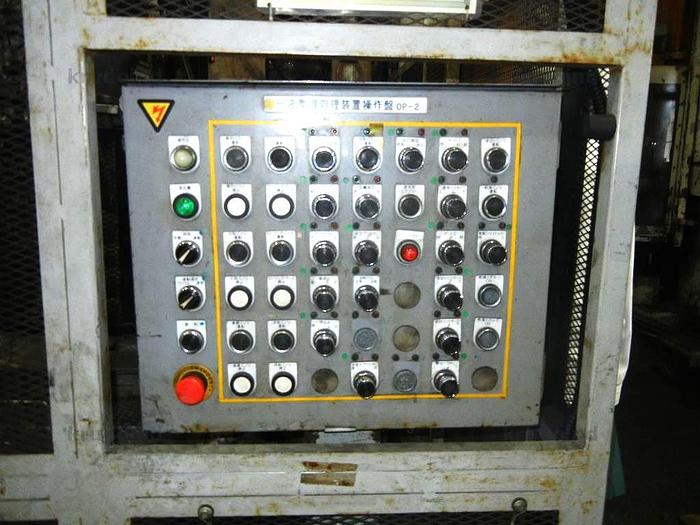

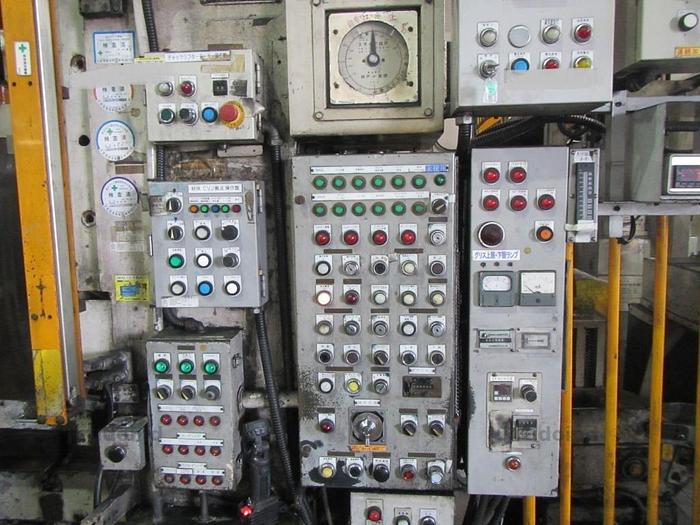

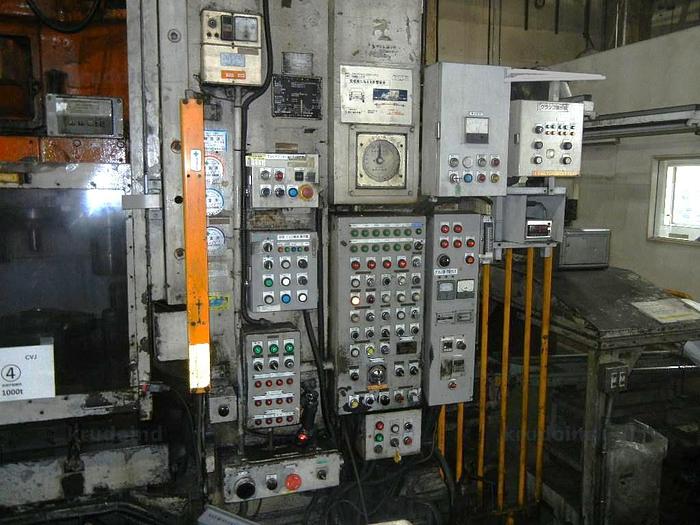

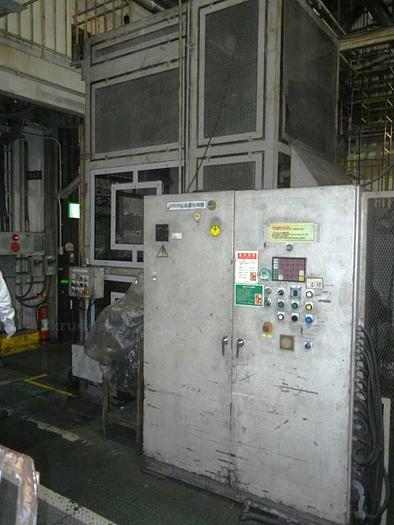

-Control Panel :

Location : Installed on the second floor

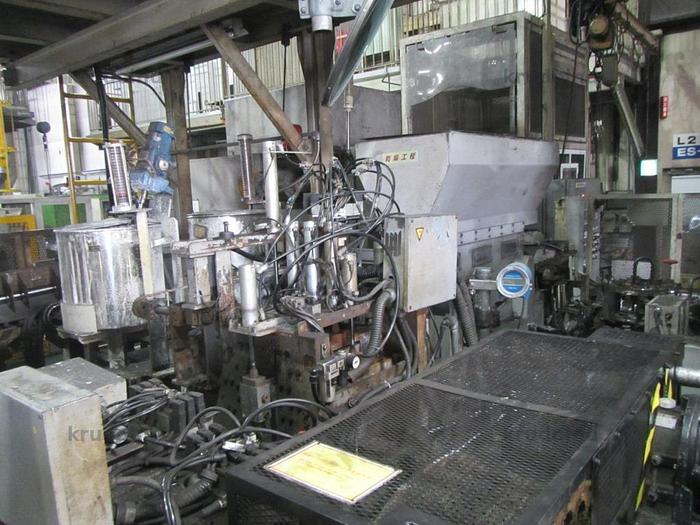

-Automation Details :

Feed, clamp, and lift mechanisms included

-Underground Pit :

1 hydraulic unit
