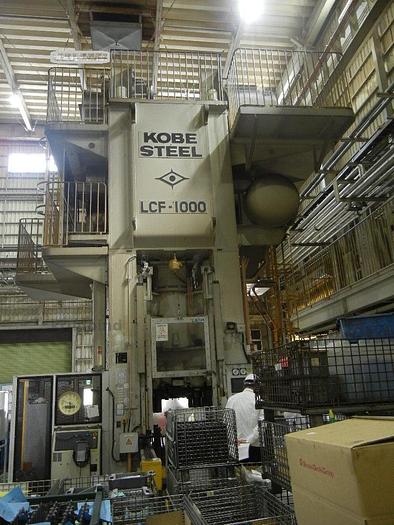

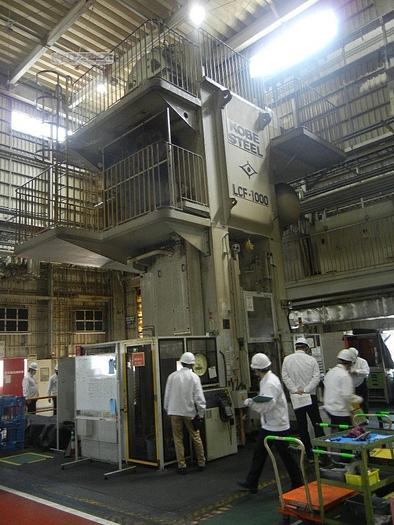

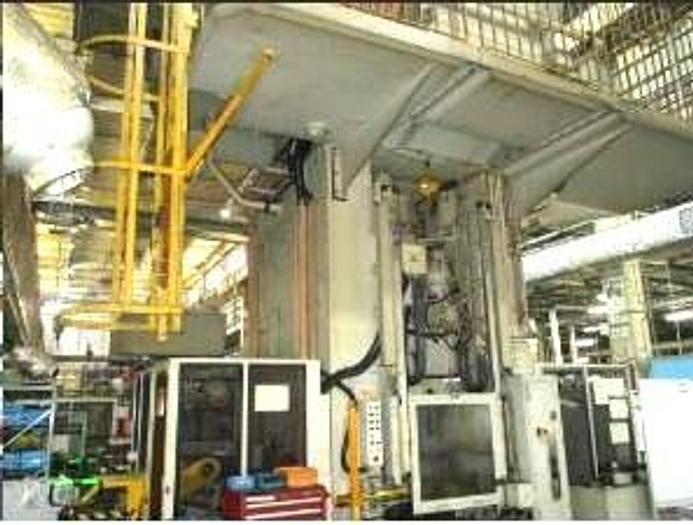

Press Cold Forging Kobelco(Kobe Steel) LCF-1000
![Used Press Cold Forging Kobelco(Kobe Steel) LCF-1000](https://i.machineryhost.com/4e0d67e54ad6626e957d15b08ae128a6/5b59f83df2e513c2bd2aa95f9fef789a/large-used-press-cold-forging-kobelco-kobe-steel-lcf-1000.jpg)
Specifications
Manufacturer | Kobelco(Kobe Steel) |
Model | LCF-1000 |
Year | 1977 |
Condition | Used |
Stock Number | MA2634 |
Item condition | Good condition |
Capacity tons | 1000 |
Description
Capacity : 1000 tons,
Stroke : 500 mm,
Strokes per minute (SPM) : 15 to 20,
Press Size:
Width : 3000 mm,
Height : 9000 mm,
Die Height : 800 mm,
Slide Dimensions:
Left to Right : 1000 mm,
Front to Back : 1200 mm,
Bolster Dimensions :
Left to Right : 1000 mm,
Front to Back : 1200 mm,
Thickness : 200 mm,
Slide Adjustment Length : 30 mm,
Slide KO – Type : Kanzashi,
Main Motor : 160 kW/DC
Press Weight : Approximately 180 tons.
Auxiliary Equipment Specifications
-Material Supply Device : Installation Date: 1986
-One-Component Lubricant Application Device:
Manufacturer : RCD Techno
Rotating Drum Type
Installation Date : 2000

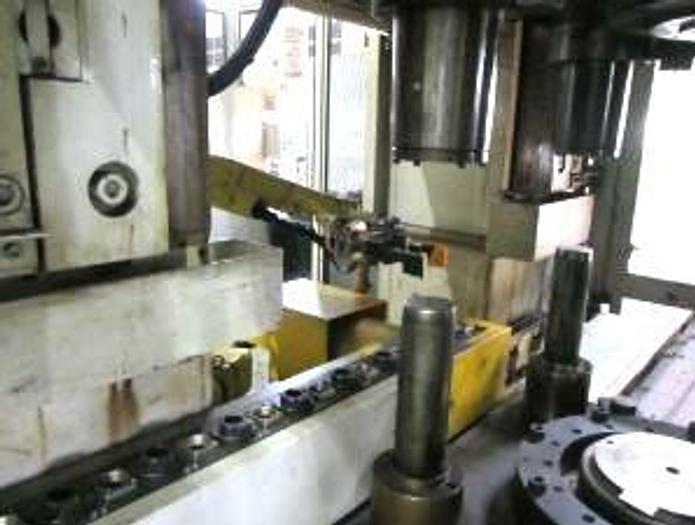

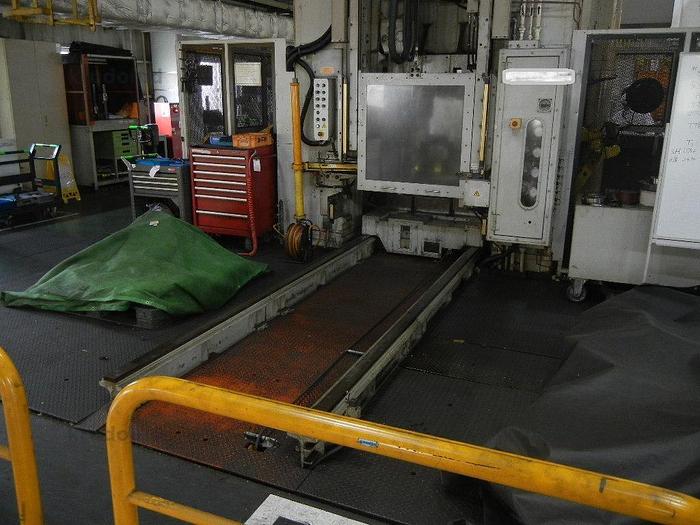

- QDC (Quick Die Change Device):
Die Set Changer
Die Set (1 Upper Unit/2 Lower Units)
Installation Date : 1971
- Exit Discharge Device :
Manufacturer: Kobe Steel
Installation Date : 1986
-Dust Collector :
Manufacturer : Asahi Electric Industry
Dry type
Duct Included
Installation Date : 2003
-Current Monitoring Device :
Manufacturer : HM In-House Production
Current and Temperature Monitoring for Each Part
Installation Date : 2003
-Jib Crane :
Load Capacity: 490 kg
Fixed Rail
Installation Date : 1986
Additional Features

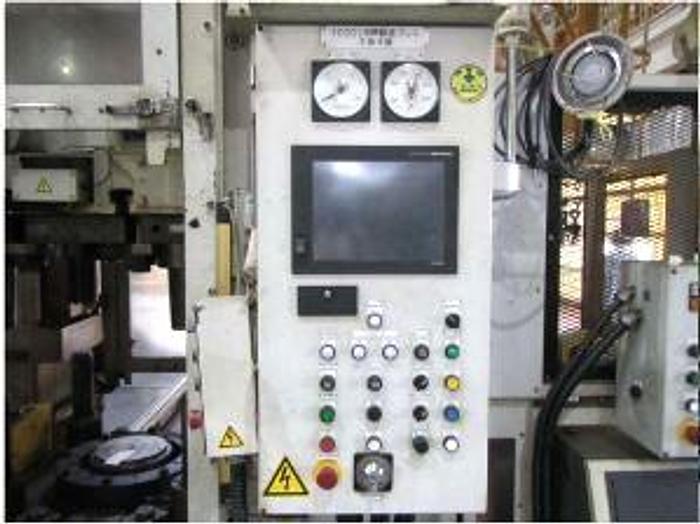

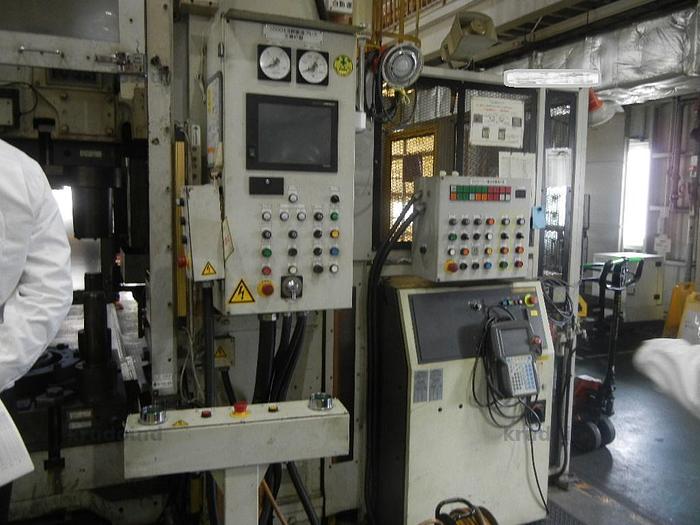

-Control Panel :
Location : Installed on the second floor
-Automation Details :
Feed, clamp, and lift mechanisms included
-Underground Pit :
1 hydraulic unit
