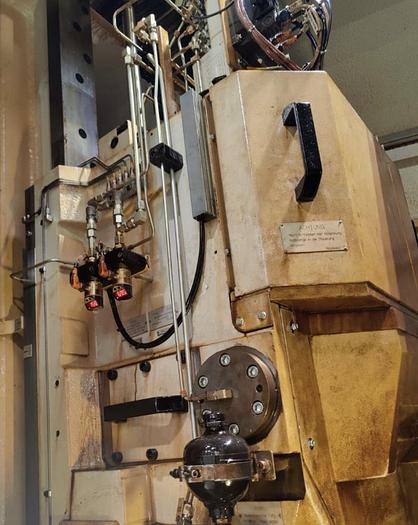

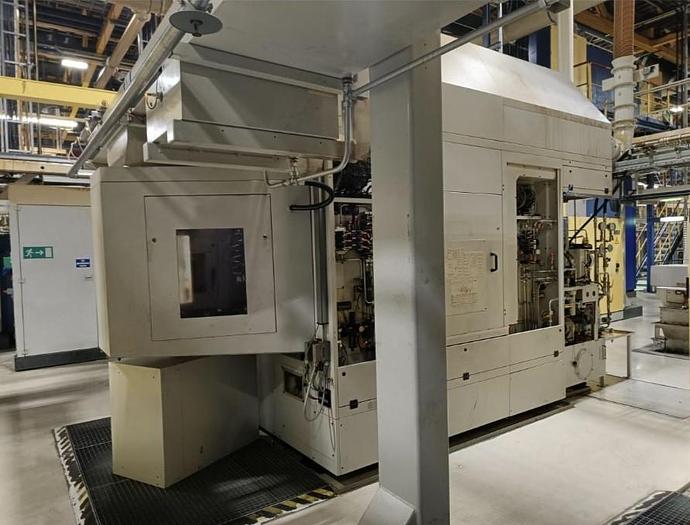

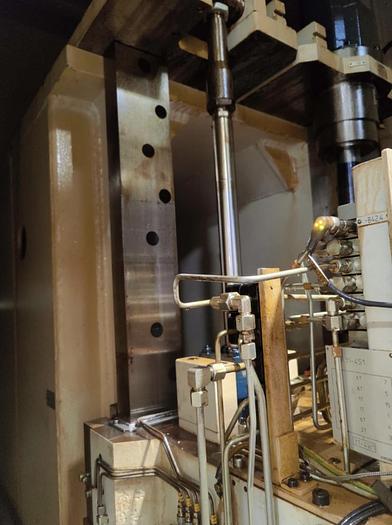

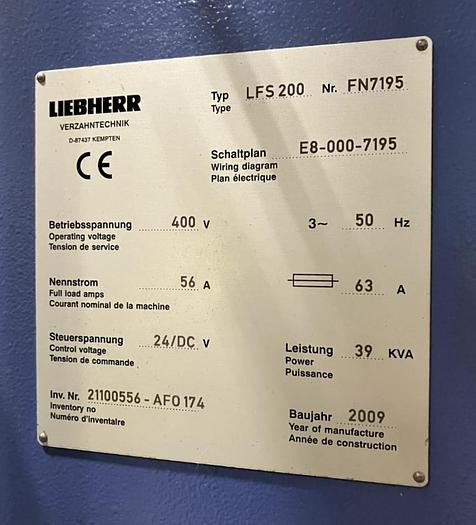

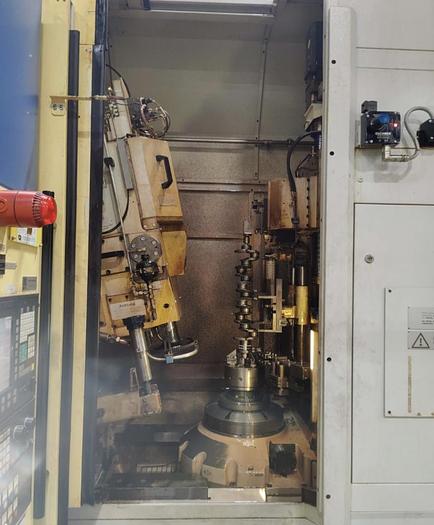

Gear Shaper Liebherr LFS200

Gear Shaping Machine

Table diameter : 320 mm,

Table bore : 150 mm,

Maximum table speed : 30 rpm,

Maximum gear diameter : 200 mm,

Maximum workpiece outer diameter : 200 mm,

Minimum / Maximum axis distance : -50... to 450 mm,

Total weight approximately : 13 tons,

About the machine stand Maximum axial travel : 400 mm,

About the ram slide Stroke position travel range : 400 mm,

About the column swivel slide Swivel angle : -1… to 12 degrees,

Maximum normal module : 5 mm,

Minimum stroke rate : 250 DH/min Maximum stroke rate : 1500 DH/min,

Maximum ram spindle speed : 30 rpm,

Axis angle adjustment ram/vertical : + / - 0.5 degrees,

Drive power stroke drive : 17 kW,

Cutting wheel holder attachments : 48 mm,

Ram spindle diameter : 85 mm,

Stroke length : 0 mm max. Stroke length : 70 mm max.,

Gear width : 60 mm,

Maximum counter-support travel : 540 mm,

Maximum counter-support rapid traverse speed : 15000 mm/min,

Counter-support arm force : 13 kN,

NC Controls : SIEMENS Sinumerik 840D Power Line,

Complete system with tailstock.
