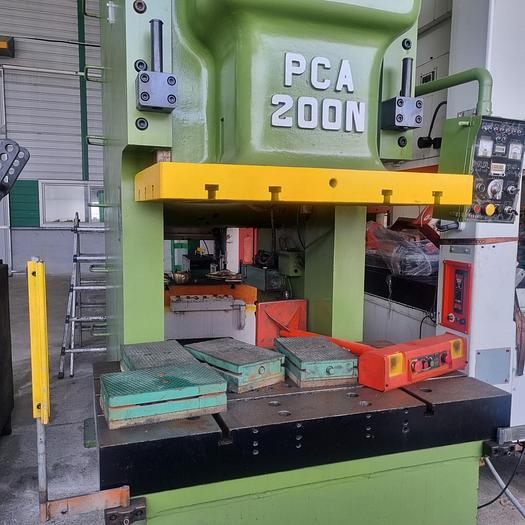

Press Trimming Kukil PCA-200N
![Used Press Trimming Kukil PCA-200N](https://i.machineryhost.com/4e0d67e54ad6626e957d15b08ae128a6/2e4b0741165f310d3865261090bb4c4e/large-used-press-trimming-kukil-pca-200-n.jpg)

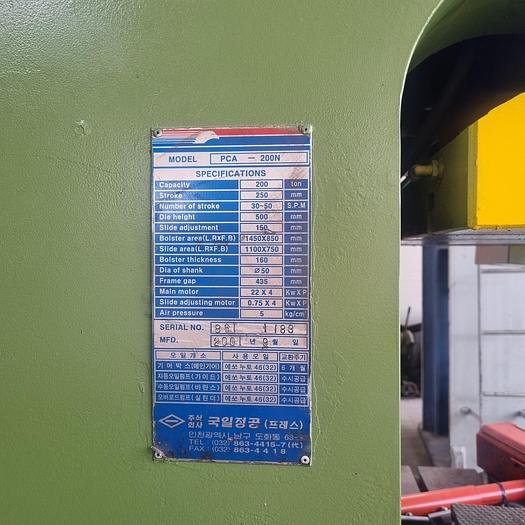

Specifications
Manufacturer | Kukil |
Model | PCA-200N |
Year | 2001 |
Condition | Used |
Stock Number | MA2628 |
Item condition | Good condition |
Capacity tons | 200 |
Description
Capacity : 200 tons,
Ram stroke : 250 mm,
Slider strokes per minutes : 30-50 spm,
Die height : 500 mm,
Slide adjustment : 150 mm,
Slide area (LR x FB) : 1100 x 750 mm,
Bolster area (LR x FB) : 1450 x 850 mm,
Thickness : 160 mm,
Dia of shank : 50 mm,
Frame gap : 435 mm,
Main Motor : 22x4 KWxP,
Slide adjustment motor : 0.75x4 KWxP,
Air Pressure used : 5 kg/cm2.
