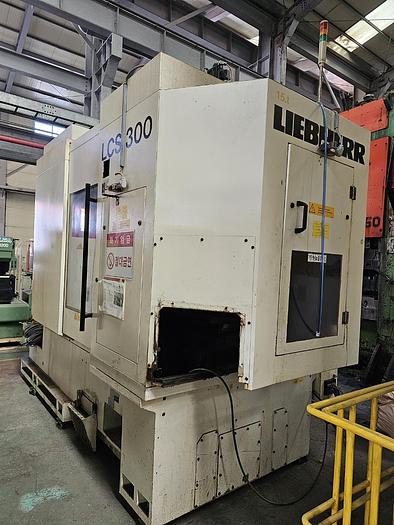

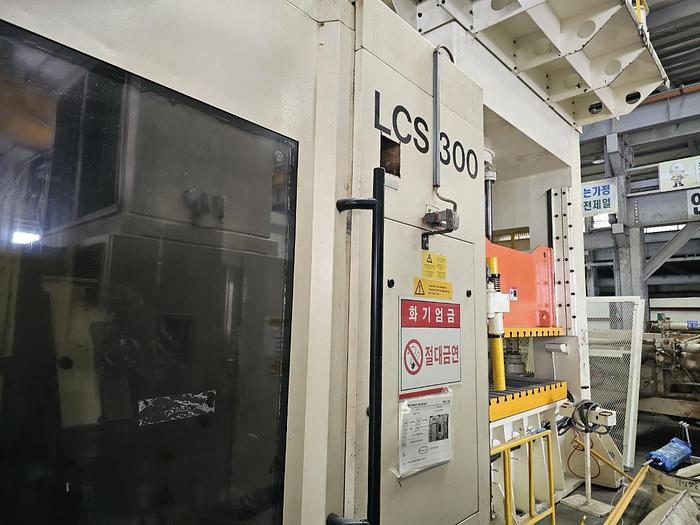

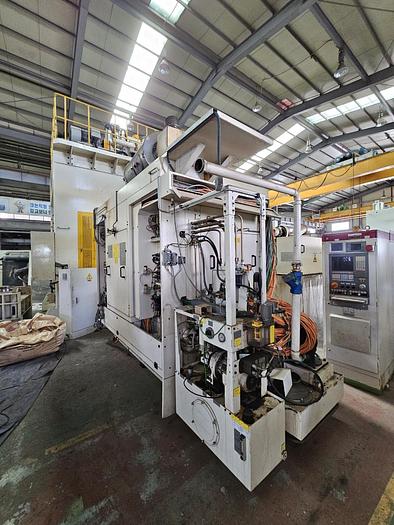

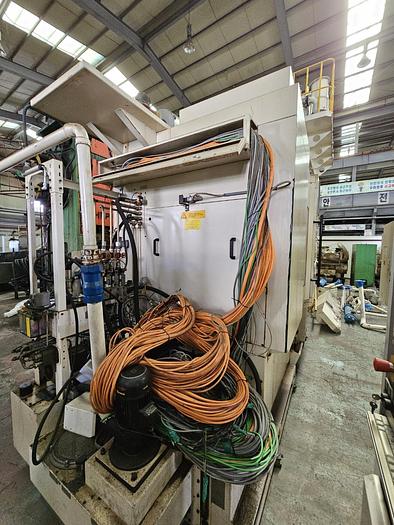

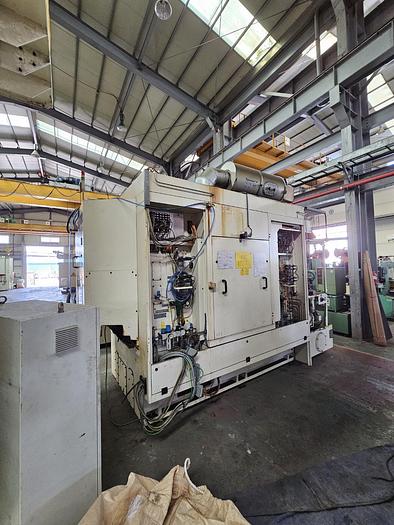

Gear Grinder Liebherr LCS300

Workpiece dia. : 300 mm,

Table Speed : 2000 rpm,

Axial travel (max) : 600/1000 mm,

Axial travel speed : 10000 mm/min,

Radial travel speed : 8000 mm/min,

Grinding head swivel angle : +-35 (+-45) deg.,

Module (Max. generating grinding) : 8 mm,

Module (Max. profile grinding) : 14 mm,

Grinding spindle speed : 12000 rpm,

CBN toll dia. (max. generating grinding) : 170 mm,

CBN toll dia. (max. profile grinding) : 220 mm,

Alumina tool dia. (max. generating grinding) : 320 mm,

Alumina tool dia. (max. profile grinding) : 320 mm,

Tool length (max.) : 230 mm,

Tangential travel (max.) : 320 mm,

Spindle drive power : 35 kW,

Machine weight with tailstock : 16 tons,

Total connected load : 35 kVA.
