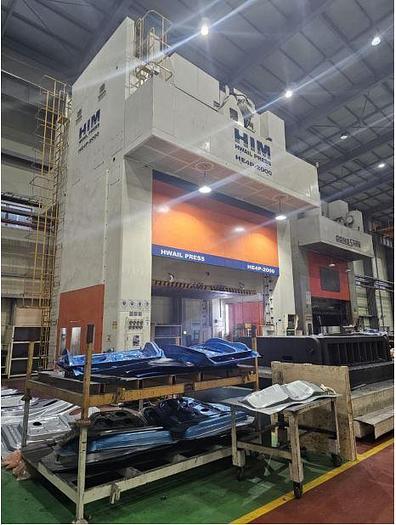

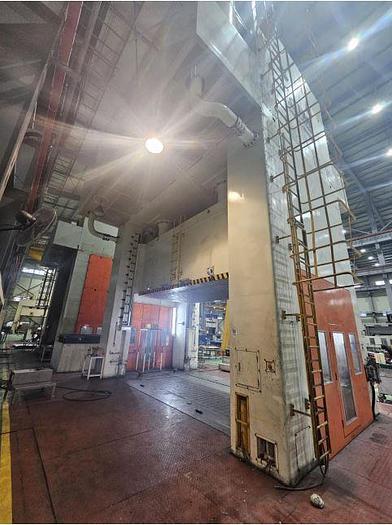

Press Sheet Stamping Mechanical Him Hwail HE4P-2000
Sold

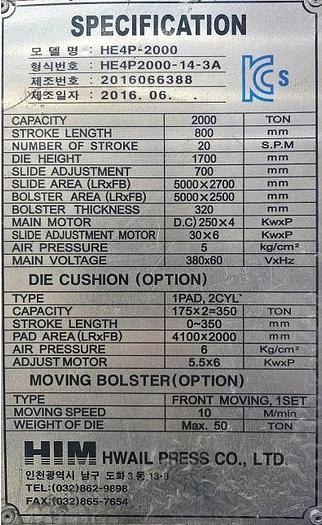

Specifications
| Manufacturer | Him Hwail |
| Model | HE4P-2000 |
| Year | 2016 |
| Condition | Used |
| Stock Number | MA2625 |
| Capacity tons | 2000 |
| Item condition | Good condition |
Description
Capacity : 2000 tons,
Stroke : 800 mm,
No. of stroke per min. : 20,
Die height : 1700 mm,
Slide adjustment : 700 mm,
Slide area (LR x FB) : 5000 x 2700 mm,

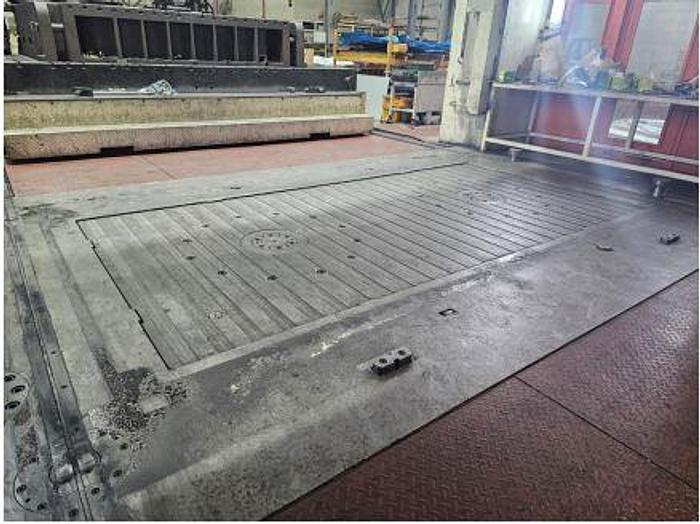

Bolster area (LR x FB) : 5000 x 2500 mm,
Bolster thickness : 320 mm,
Main motor : D.C 250 x 4 KwxP,
Slide adjustment motor : 30 x 6 KwxP,
Air pressure : 5 kg/cm2,
Main voltage : 380 x 60 V x Hz,
Die Cushion :
Capacity : 350 tons (175x2),
Stroke : 0-350 mm,
Pad area (LR x FB) : 4100 x 2000 mm,
Air pressure : 6 kg/cm2,
Adjust motor : 5.5 x 6 KwxP,

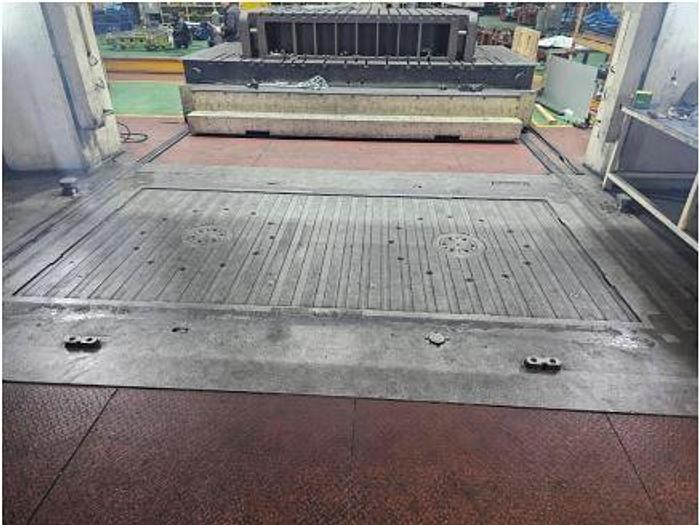

Moving Bolster :
Moving speed : 10 M/min,
Weight of die : Max. 50 tons.
