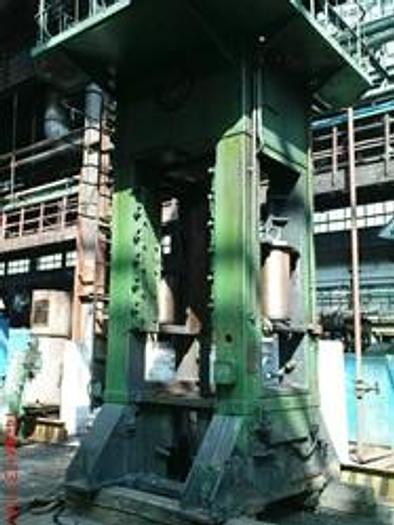

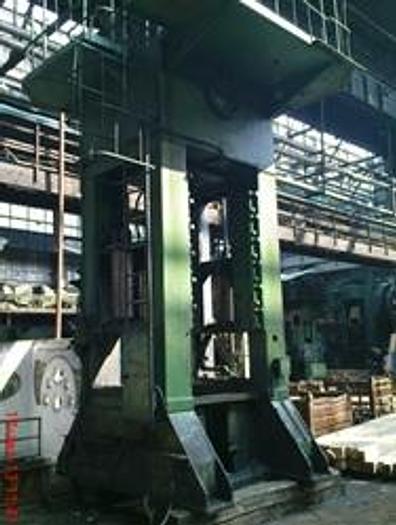

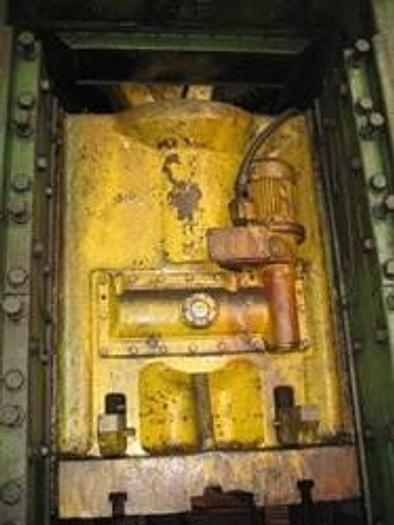

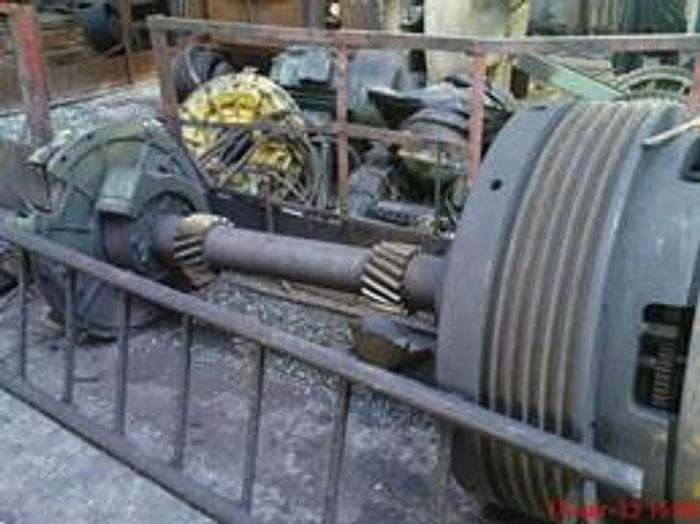

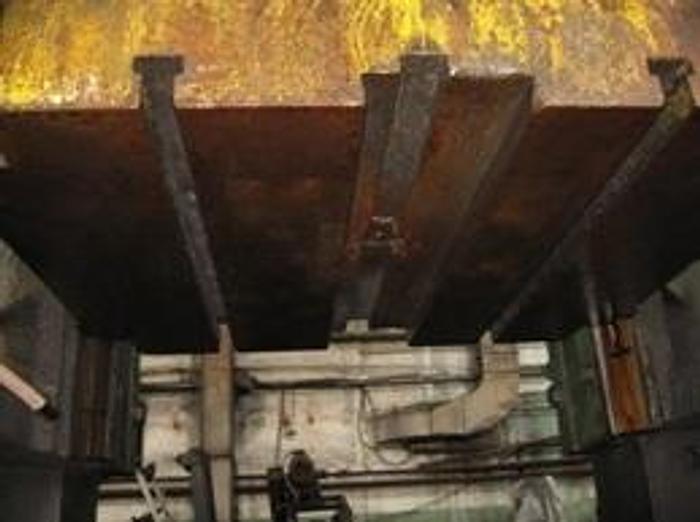

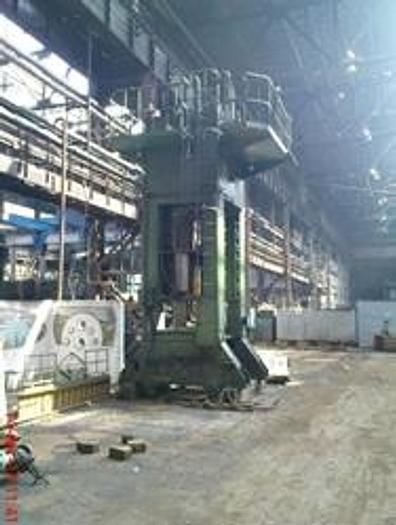

630 tons Press Trimming K9538 Voronezh

Capacity : 630 tons,

Ram stroke : 400 mm,

Slider strokes per minutes : 20 spm,

Shut height : 570 mm,

Bolster plate to ram adjustment stroke : 180 mm,

Bed Dimension : 1250 x 1250 mm,

Bed Opening Dimension : 800 x 800 mm,

Ram Dimension : 1000 x 1000 mm,

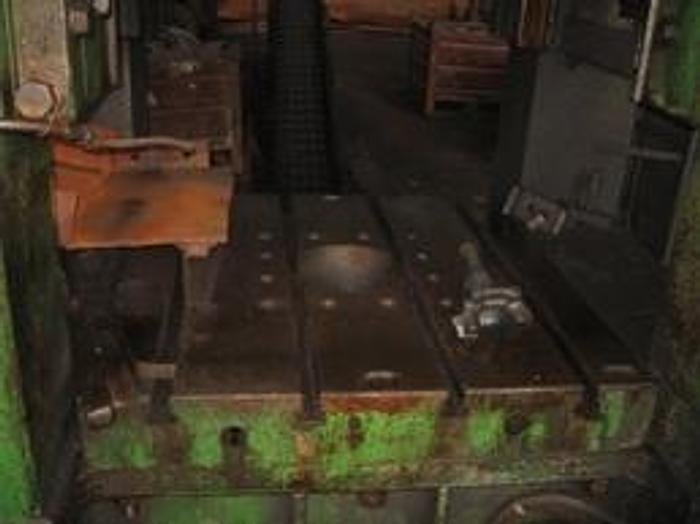

Bolster plate thickness : 180 mm,

Main drive motor power : 61 KW,

Floor space : 3600 x 3470 mm,

Height above floor level : 6190 mm,

Stroke path till its position where it develops nominal capacity : 9,5 mm,

Window size : 750 x 400 mm,

Ram load : 2 ton,

Voltage : 340 V,

Machine dimensions : 3650 x 3680 x 6370 mm

Machine weight : 49.8 tons.
