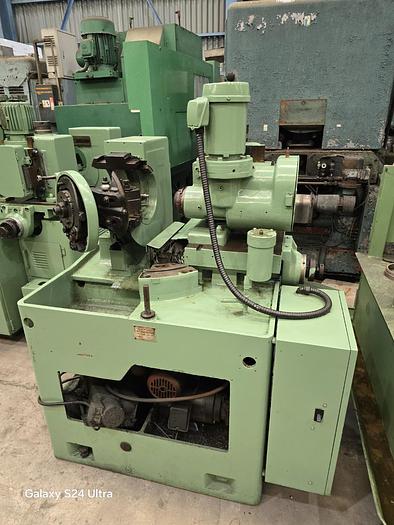

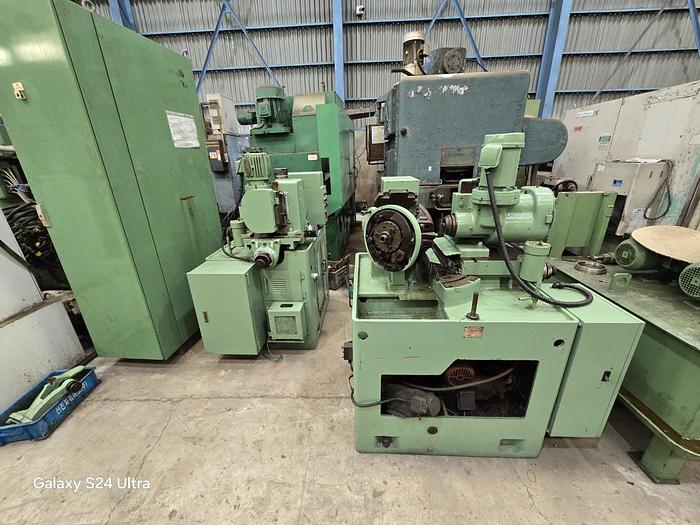

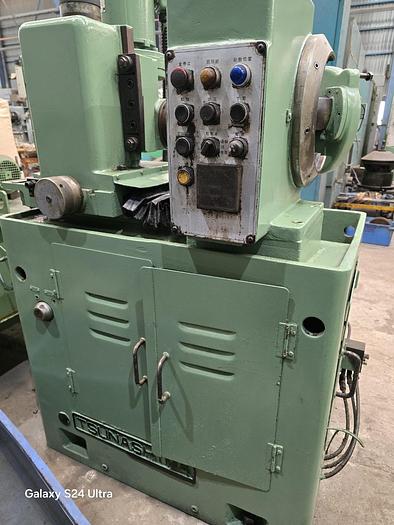

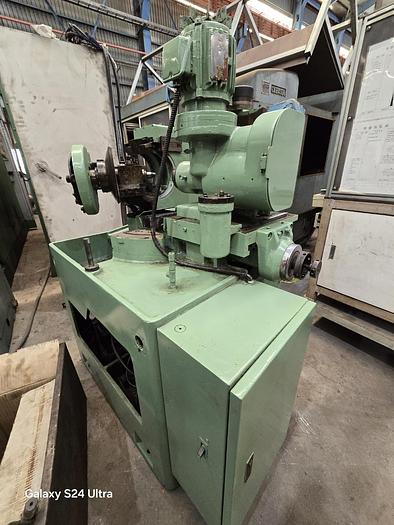

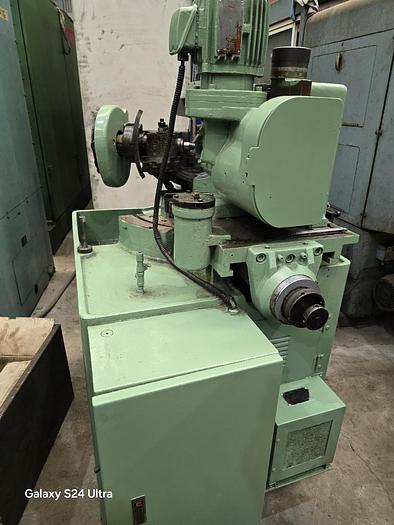

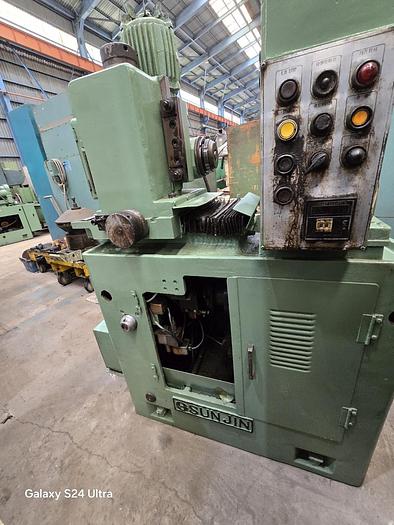

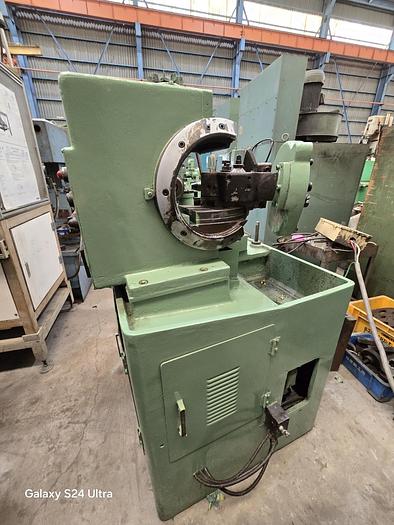

Gear Generator Spiral Bevel Gleason 102 SBG-10B

Maximum cone distance : 70 mm,

Maximum face width : 25 mm,

Max. generating pitch : 3 module,

Max. generating diameter (gear ratio 1:4) : 140 mm,

Max. generating diameter (gear ratio 1:1) : 100 mm,

Max. number of generating teeth ( gear ratio 1:4) : 72,

Max. number of generating teeth ( gear ratio 1:1) : 12,

Work mounting hole : B&S No.9,

Motor (for feed drive) : 400 W4P,

Motor (for cutter revolution) : 750W4P,

Motor (for hydraulic unit) : 750W4P,

Motor (for cutting oil) : 100W,

Weight (including attachments) : 1300 kg (1.3 ton).

Qty No. : 6 set
