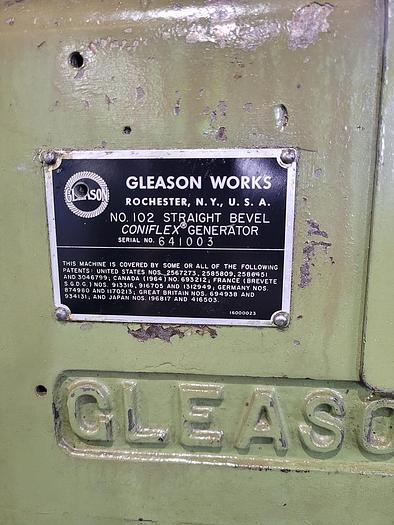

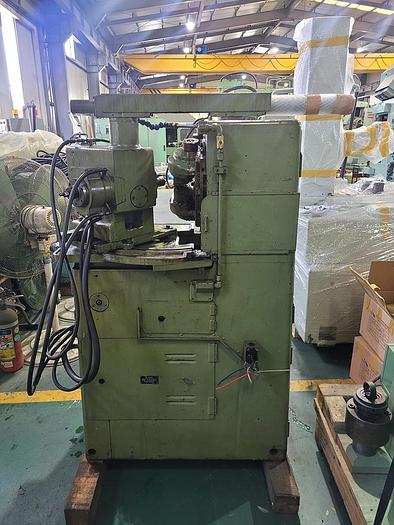

Gear Generator Straight Bevel Gleason 102

Available for cutting Straight Bevel Gears

Max. Pitch dia : 114 mm,

Max. Cone distance : 57 mm,

Max. Face-Width : 11 mm,

Work Head Angle 0 to 90 Degs,

Coarsest Diamteral Pitch (Mod) 16 DP/(1.59 Mod),

Diameter Taper Hole in Work-Spindle,

At Large End of Taper : 38 mm,

Work Spindle Taper : 12.7 mm,

Depth of Taper : 76.2 mm,

Max. Distance spdl Nose to Machine Center : 127 mm,

Min. Distance spdl Nose to Machine Center : 31.75 mm,

Index Rang 10 to 120,

Pressure Angle 20 Degrees,

Cutter Speed 63-559 FPM Feed per Second (Per Tooth) : 72 to 24,

Main Drive motor : 75 HP / 1800 RPM,

Overall Machine Length : 1003 mm,

Overall Machine Width : 673 mm,

Overall Machine Height : 1524 mm,

Approx Mach Net Weight : 1.7 tons.

Qty No. : 2.
