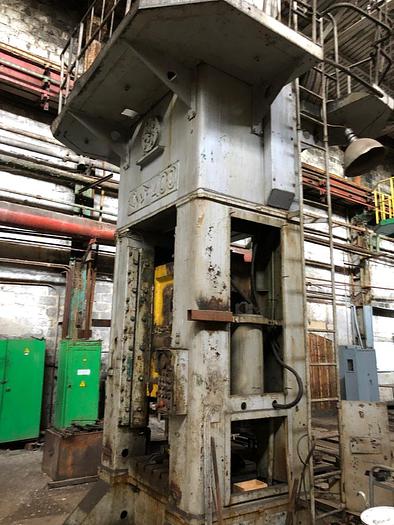

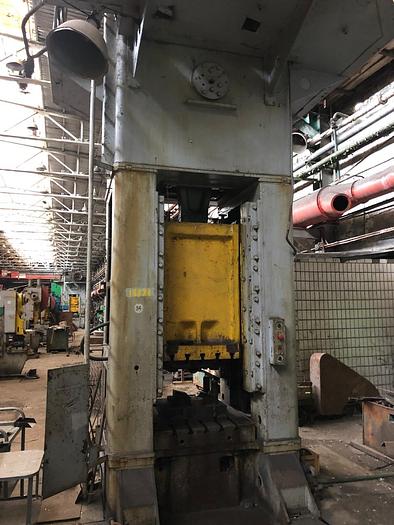

400 tons Press Trimming TMP Voronezh Russia KB2536

Single-crank press

Capacity : 400 tons,

Ram stroke : 250 mm,

Slider strokes per minute : 25,

Shut height : 510 mm,

Bolster plate to ram adjustment stroke : 160 mm,

Table overall dimensions :

- from front to rear : 1000 mm,

- from left to right : 1000 mm,

Slider overall dimensions : 800 x 800 mm,

Bolster plate thickness : 160 mm,

Press overall dimensions :

- length 3470 mm,

- width 3140 mm,

- height 5940 mm,

Total power of electric motors :40 kW,

Weight : 31.4 tons.
