4 tons Manipulator Dango & Dienenthal A15.1
Sold
Specifications
Manufacturer | Dango & Dienenthal |
Model | A15.1 |
Condition | Used |
Stock Number | MA2605 |
Item condition | Good working condition, Disassembled |
Capacity tons | 4 |
Description
Capacity : 4 tons,

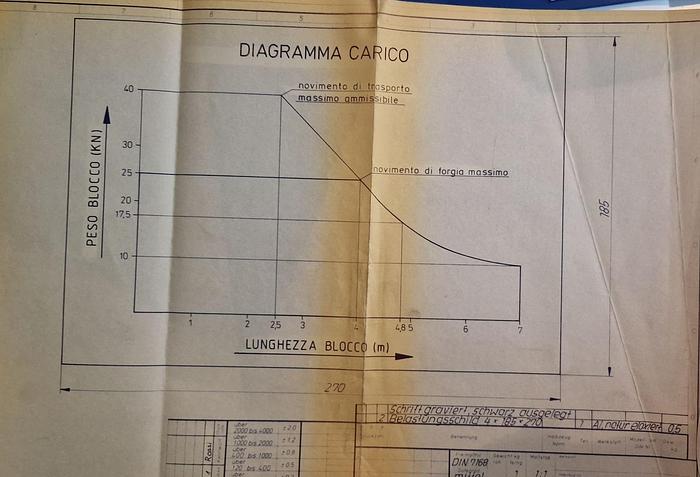

Capacity : 4000 Kg (diagram),
opening tongs : MAX 550 mm (round) 510 mm (square),
MIN 140 mm,
torque moment tongs : 500 kpm,
tour tongs : 30 Upm,
revolution diam. of the tongs totally opening : 1000 mm,
min. distance on the floor of the tong : 700 mm,
parallel stroke of the tong : 600 mm,
inclination of the tong up : 23°,
inclination of the tong down : 23°,
Continuously variable speed of translation till 90 m/min,

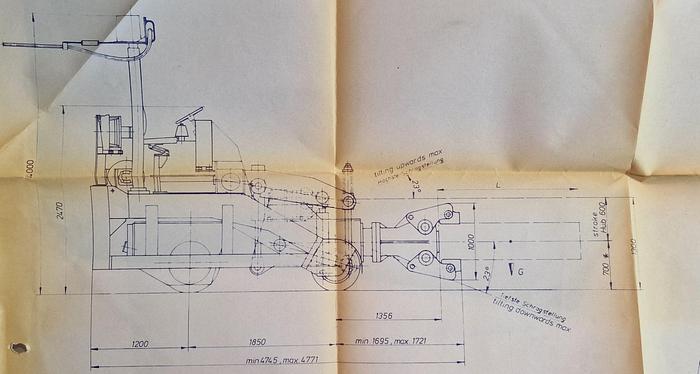

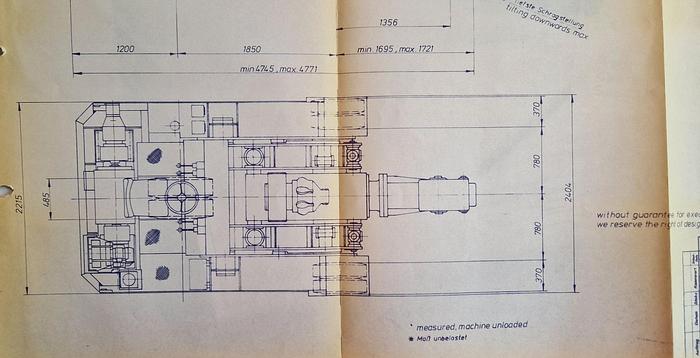

Dimension : 4745 mm x 2215 mm 4000 mm,
Weight : 15.8 tons,
loading capacity each wheel (anterior) : 5600 kg with ingot,
loading capacity each wheel (posterior) : 4800 kg with ingot,

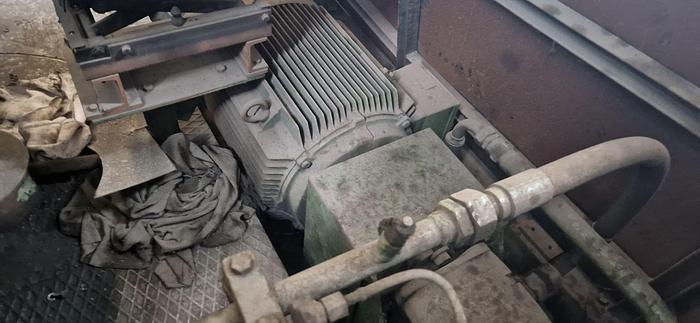

Electrical motor for hy pump : 45 Kw (rpm 1.450).

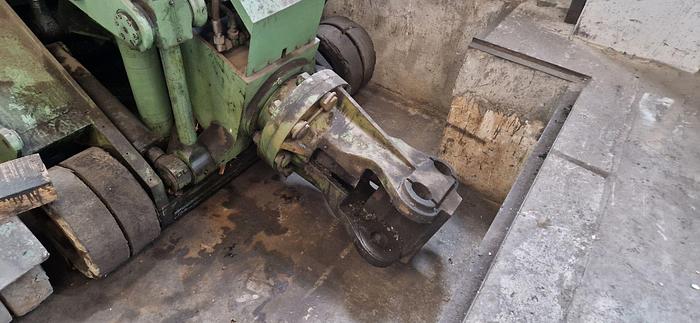

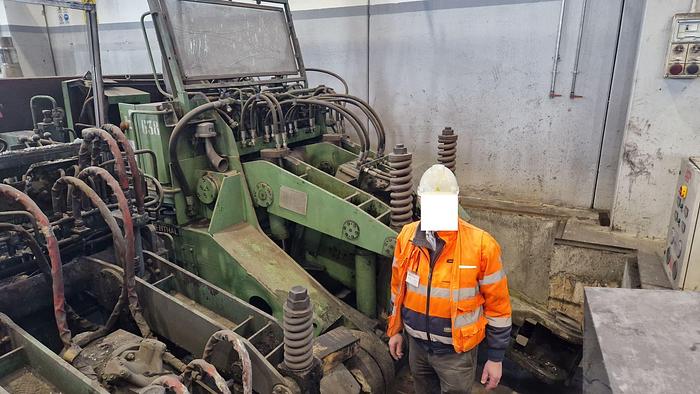

The machine is in working condition but is without tongs
(n.1 connective arm installed brand new)
