Press Knuckle Joint Coining Hwail HKLP1000
![Used Press Knuckle Joint Coining Hwail HKLP1000](https://i.machineryhost.com/4e0d67e54ad6626e957d15b08ae128a6/4e49e4492c8c41e64c819b232c292084/large-used-press-knuckle-joint-coining-hwail-hklp-1000.jpg)

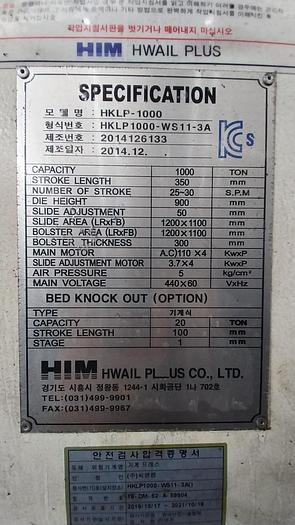

Specifications
Manufacturer | Him Hwail |
Model | HKLP1000 |
Year | 2014 |
Condition | Used |
Stock Number | MA2599 |
Item condition | Good condition |
Capacity tons | 1000 |
Description
Capacity : 1000 tons,
Stroke : 350 mm,
Stroke per minutes : 25-30,
Die height : 900 mm
Slide adjustment : 50 mm,
Slide area (LR x FB) : 1200 x 1100 mm,
Bolster area (LR x FB) : 1200 x 1100 mm,
Bolster thickness : 300 mm,
Main motor : 110 x 4 Kwxp,
Slide adjustment motor : 3.7 x4 Kwxp,
Air pressure : 5 kg/cm2,
Main voltage : 440 x 60 VxHz,
Bed knock out
Capacity : 20 tons,
Stroke : 100 mm,
Stage : 1 mm.
