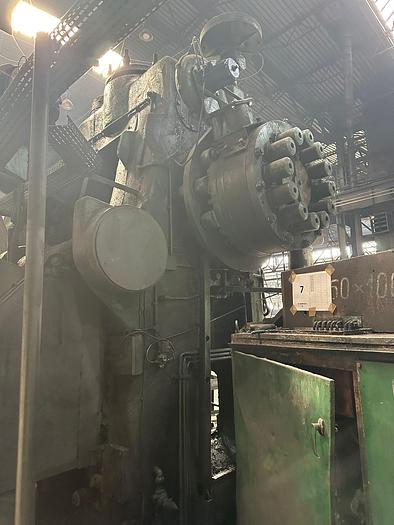

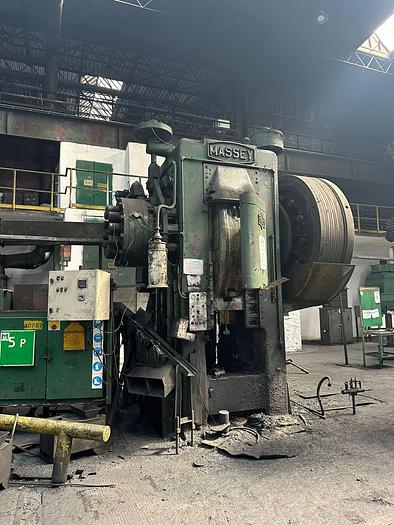

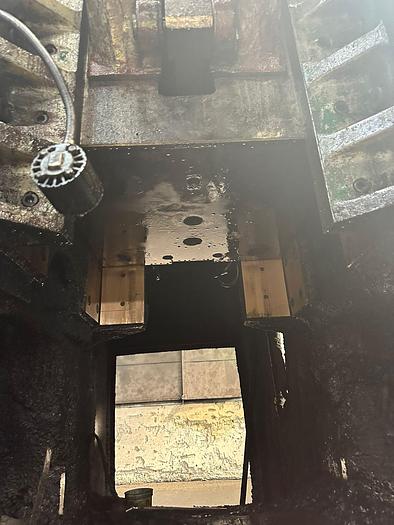

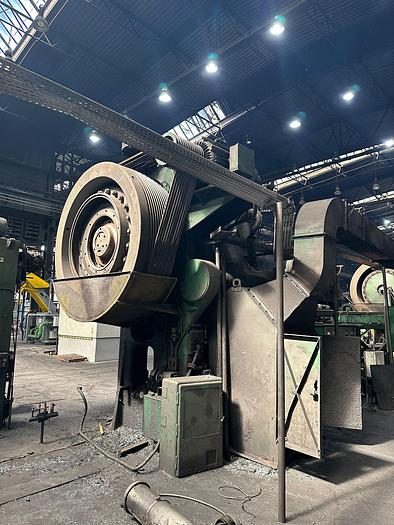

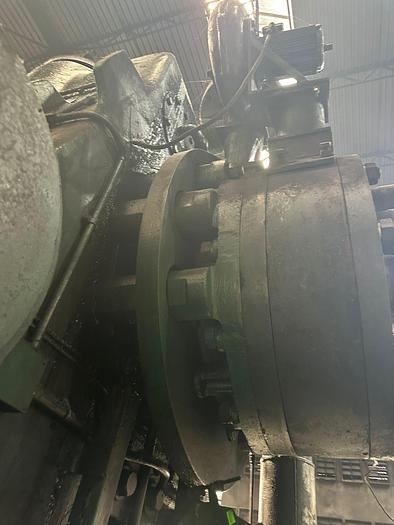

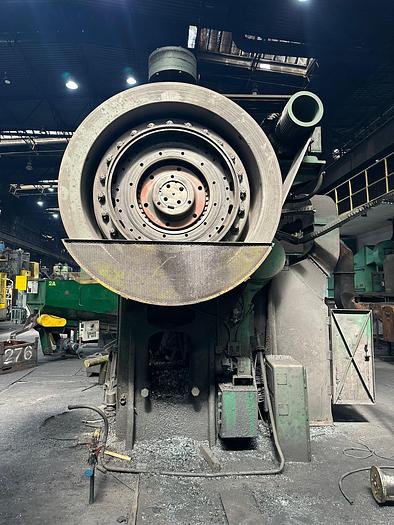

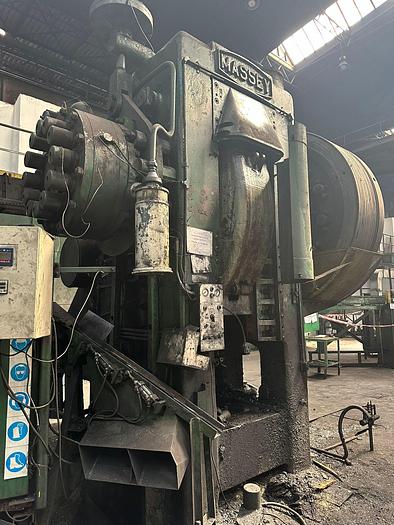

1000 tons Press Hot Forging Massey
Specifications
Manufacturer | Massey |
Condition | Used |
Stock Number | MA2585 |
Item condition | Good working condition |
Capacity tons | 1000 |
Description
Capacity : 1000 tons,
Stroke : 254 mm,
Stroke per min. : 95,
Journal dia. : 368 mm,
Shaft diameter at eccentric : 622 mm,
Ram width (L to R) : 762 mm,
Depth (F to B) : 762 mm,
Between column (L to R) : 915 mm,
Table to Floor : 710 mm,
Ram to table (bottom of stroke) : 622 mm,
Ram to Table (top of stroke) : 876 mm,
Side opening in columns depth (F to B) : 510 mm,
Height : 600 mm,
Table width (L to R) : 900 mm,
Depth (F to B) Wedge : 686 mm,
Table adjustment : 13 mm,
Motor rating (Continuous) : 50 kW,
Motor speed at full load : 560 rpm,
Supply system : 380 V, (+- 20V) 3ph, 50Hz,
Total Height : 5030 mm,
Above floor : 4725 mm,
Max. Width (L to R) : 3900 mm,
Depth (F to B) : 3050 mm,
Floor space required : 3900 x 3000 mm,
Approx. weight : 65 tons,
Drive system
Including preload assembly and foundation girders.
Qty : 2 Nos.
