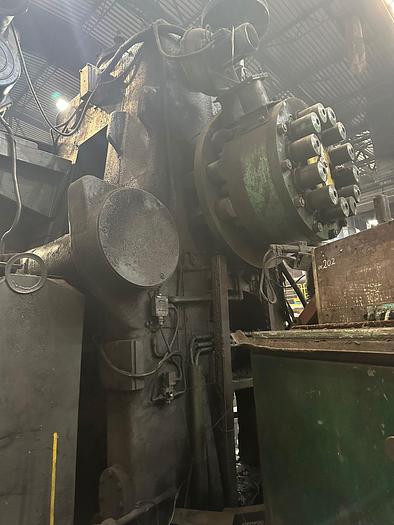

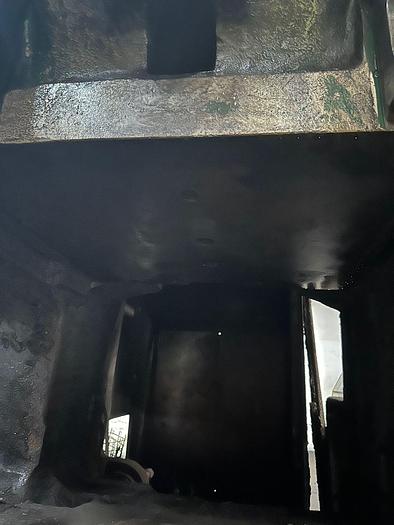

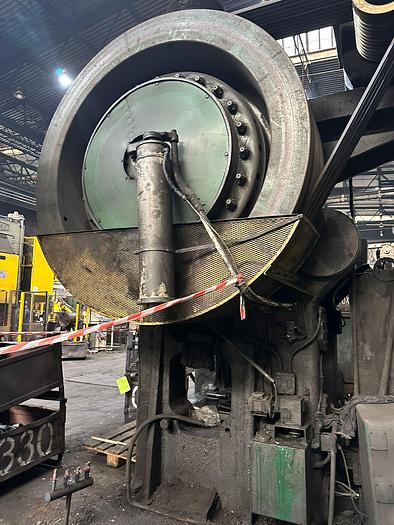

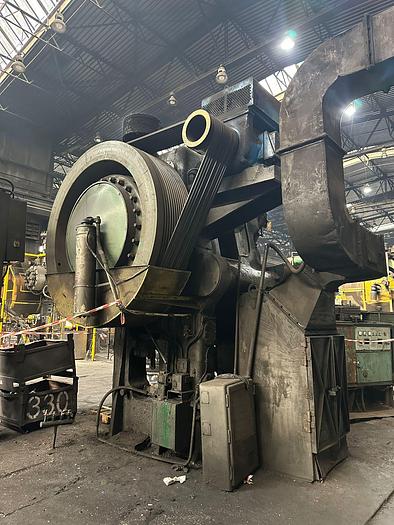

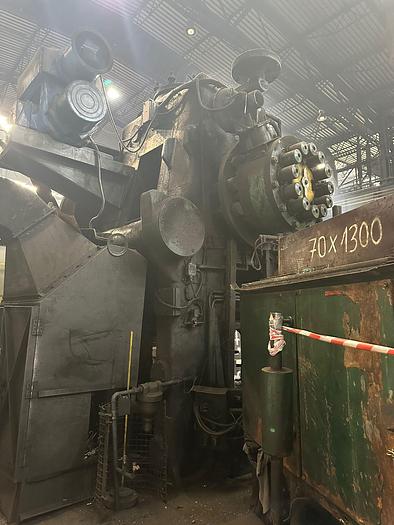

1300 tons Press Hot Forging Massey

Capacity : 1300 tons,

Stroke : 254 mm,

Stroke per min. : 90,

Journal dia. : 406 mm,

Shaft diameter at eccentric : 660 mm,

Ram width (L to R) : 838 mm,

Depth (F to B) : 787 mm,

Between column (L to R) : 980 mm,

Table to Floor : 710 mm,

Ram to table (bottom of stroke) : 622 mm,

Ram to Table (top of stroke) : 876 mm,

Side opening in columns depth (F to B) : 610 mm,

Height : 600 mm,

Table width (L to R) : 950 mm,

Depth (F to B) Wedge : 686 mm,

Table adjustment : 13 mm,

Motor rating (Continuous) : 50 kW,

Motor speed at full load : 560 rpm,

Supply system : 380 V, (+- 20V) 3ph, 50Hz,

Total Height : 5270 mm,

Above floor : 4735 mm,

Max. Width (L to R) : 3850 mm,

Depth (F to B) : 3330 mm,

Floor space required : 3800 x 3300 mm,

Approx. weight : 75 tons,

Drive system - Vee belts grooved flywheel and motor pulley

Including preload assembly and foundation girders.

Clutch - Air operated multi-friction plate type. Mounted on eccentric shaft.
