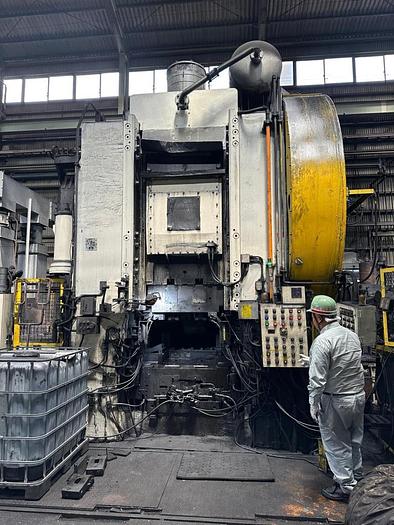

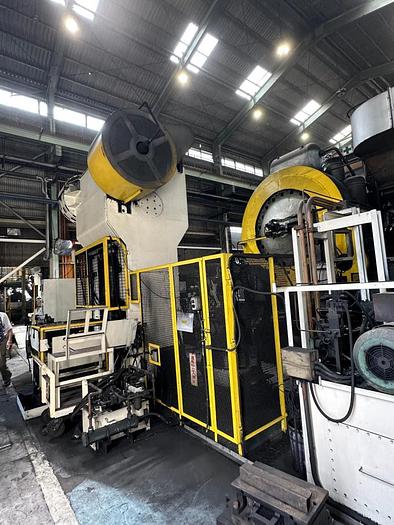

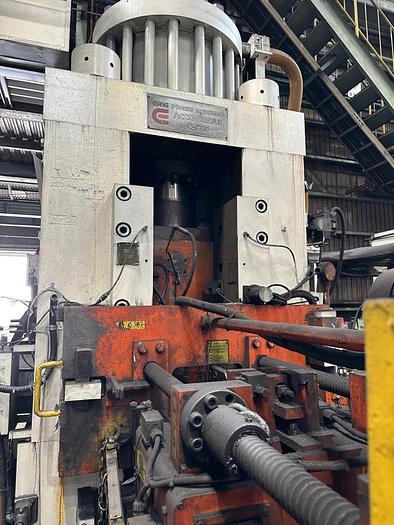

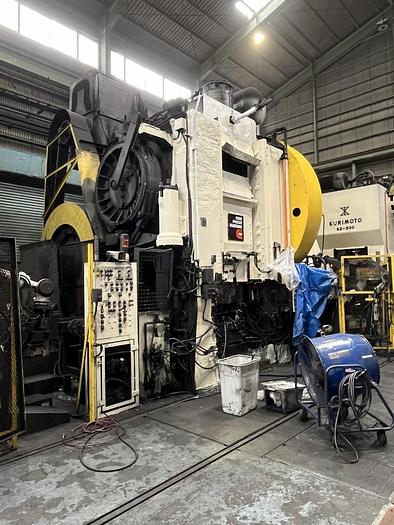

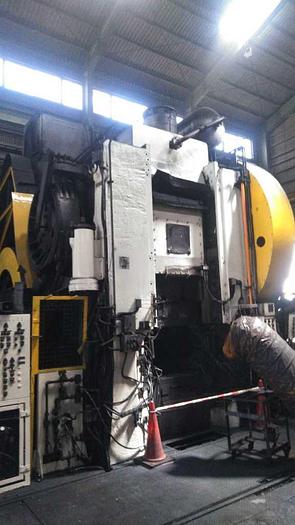

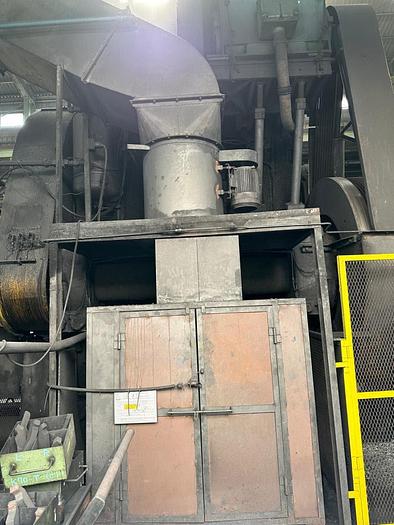

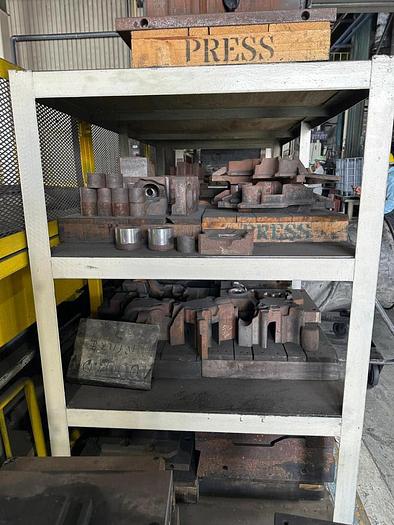

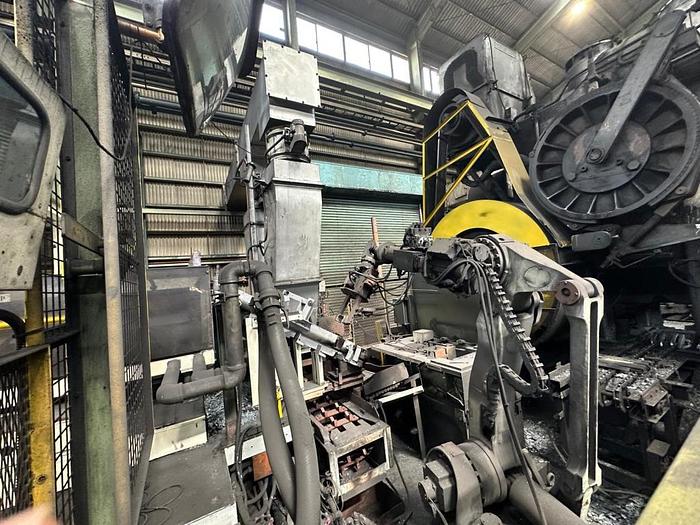

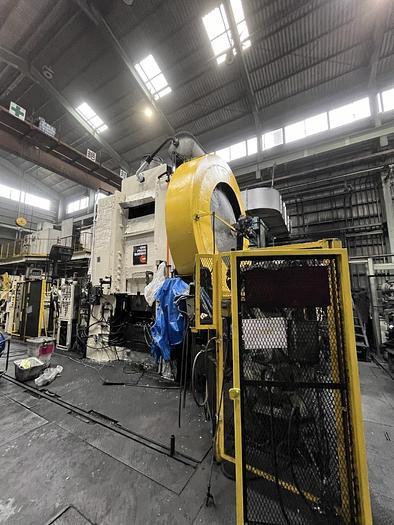

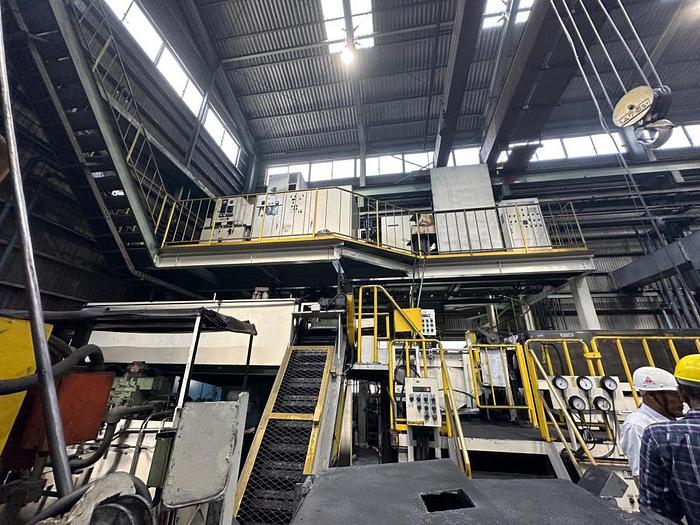

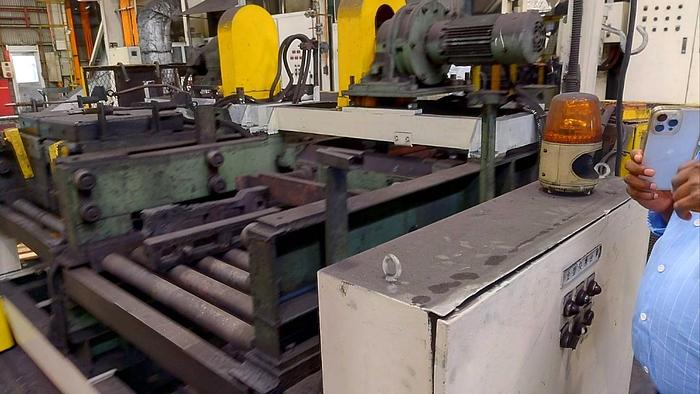

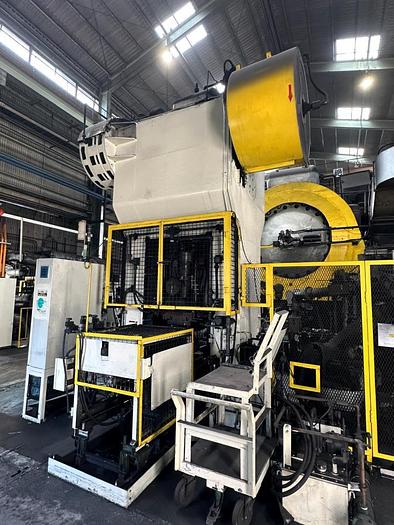

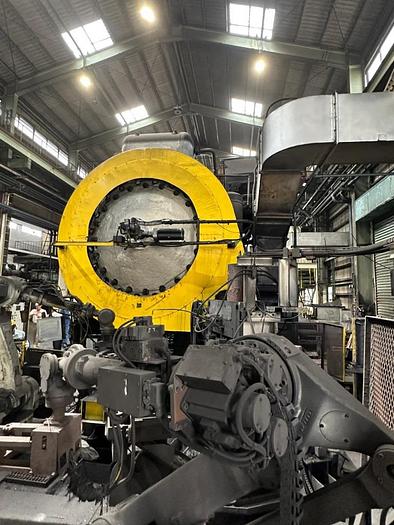

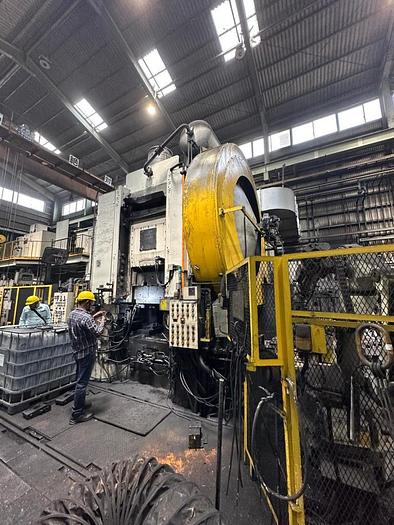

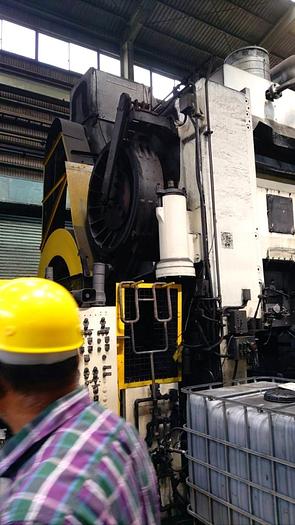

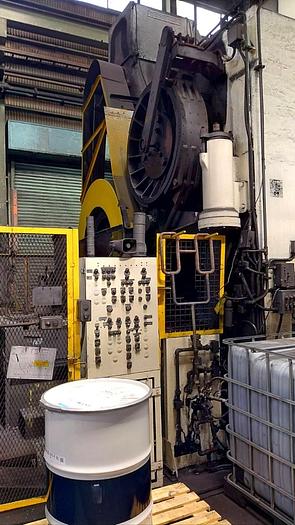

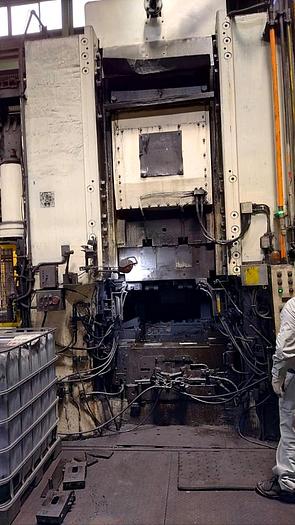

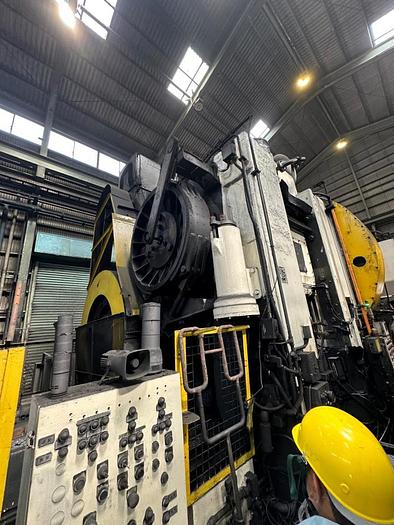

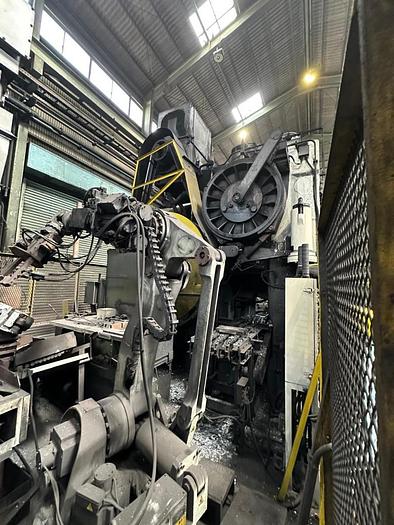

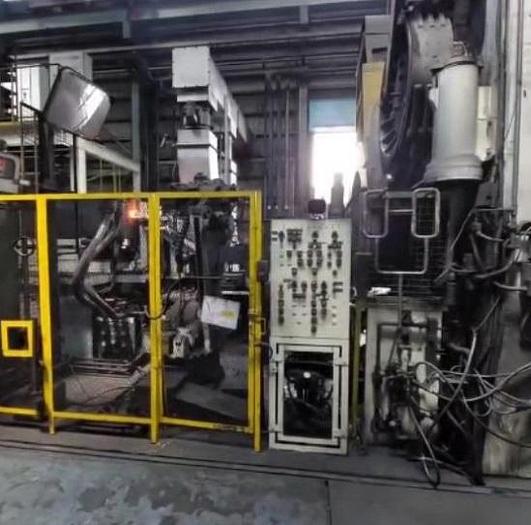

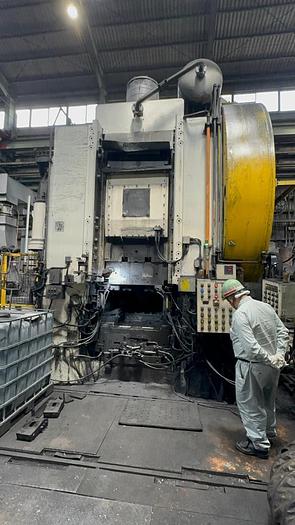

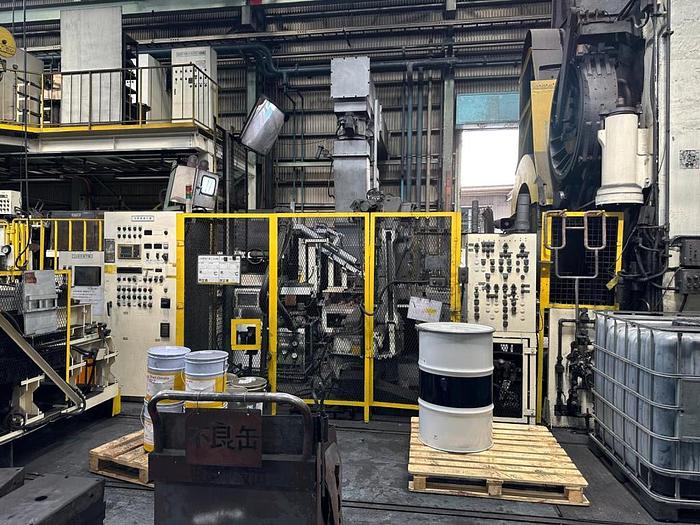

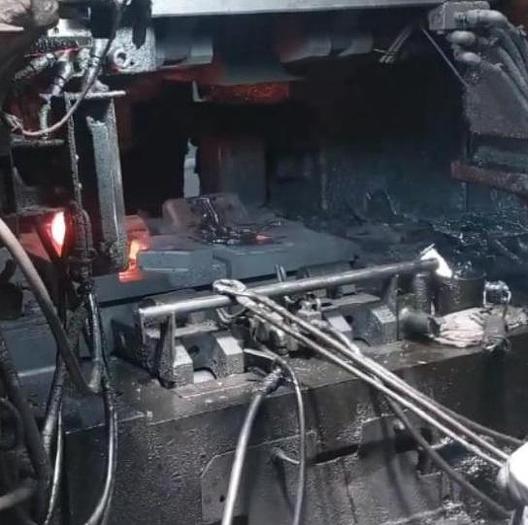

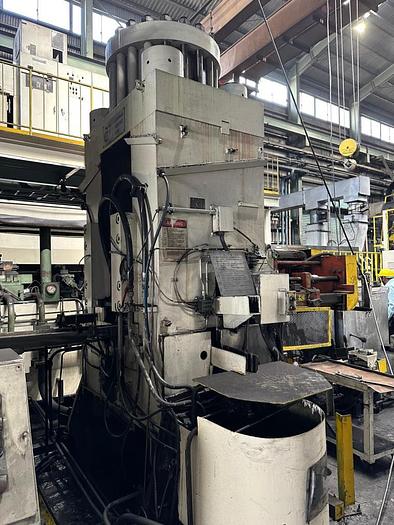

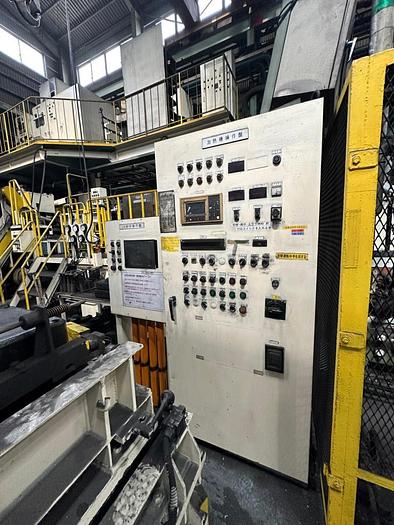

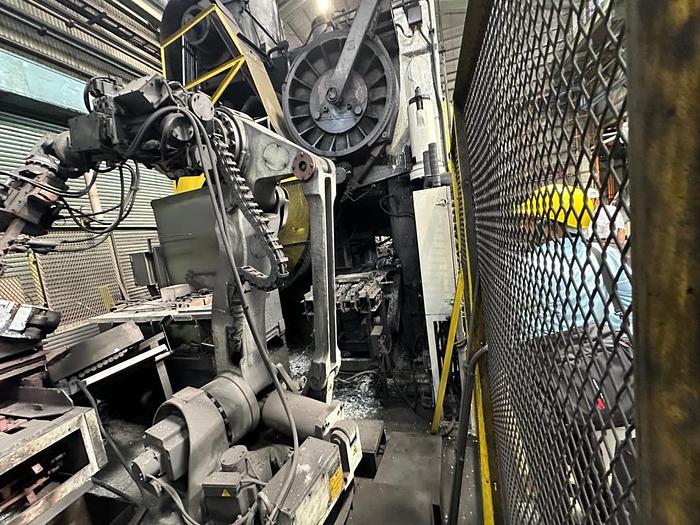

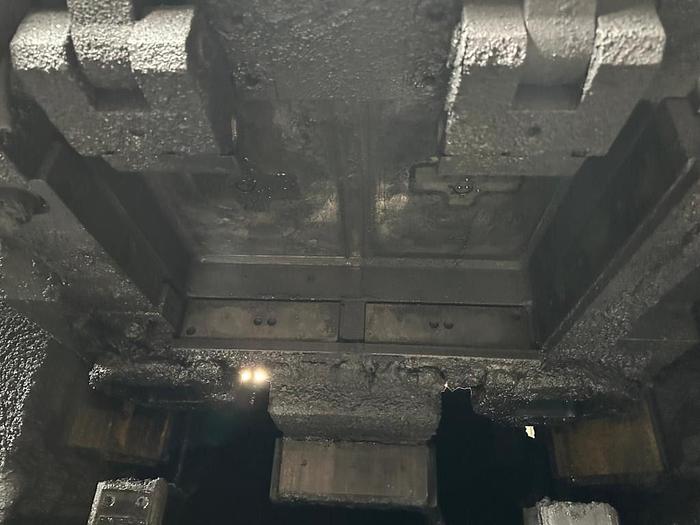

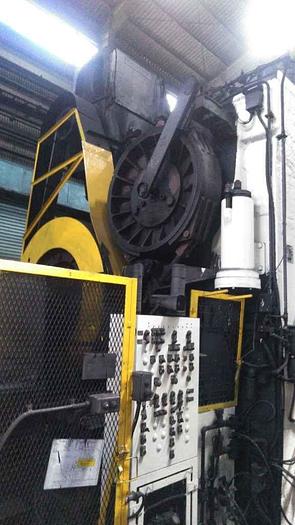

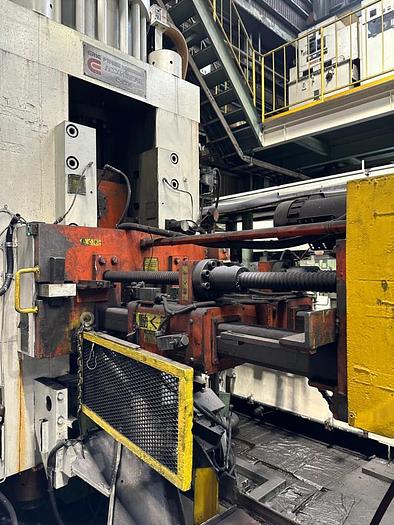

4000 tons Press Hot Forging Erie

Capacity : 4000 tons,

Stroke : 400 mm,

Stroke per minutes : 45,

Main shaft dia. at journals : 685 mm,

Main shaft dia. at eccentric : 1035 mm,

width of eccentric bearing : 812 mm,

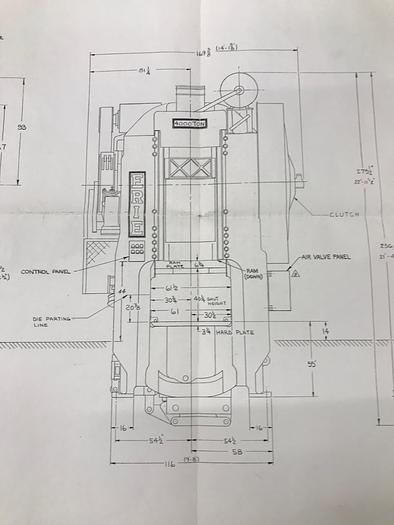

Shut height with top knockout plate : 984 mm,

Shut height without top knockout plate : 1111 mm,

Distance between columns : 1530 mm,

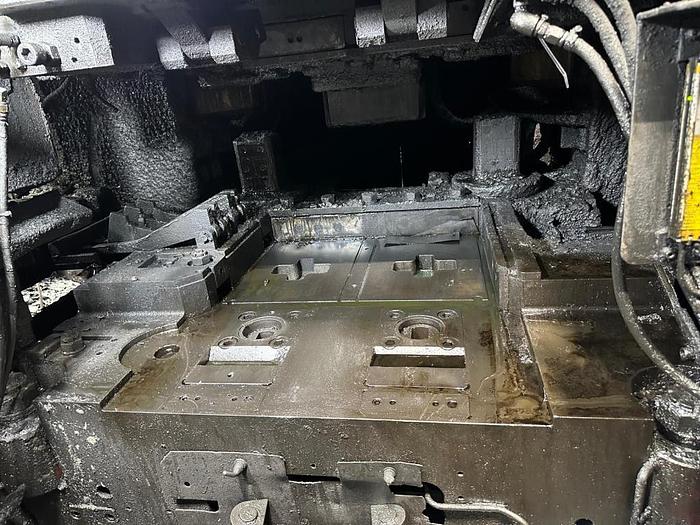

Die seat R-L x F-B : 1530 x 1625 mm,

Ram face R-L x F-B : 1422 x 1346 mm,

Upper knockout stroke : 13

Floor space R-L x F-B : 4267 x 4267 mm,

Height above floor : 4978 mm,

Distance below floor : 813 mm

Standard motor horsepower : 250 HP,

Approx. weigh : 230 tons.

Note -

Shut height is with wedge

Adjusted 1/4" Up & Stroke down.
