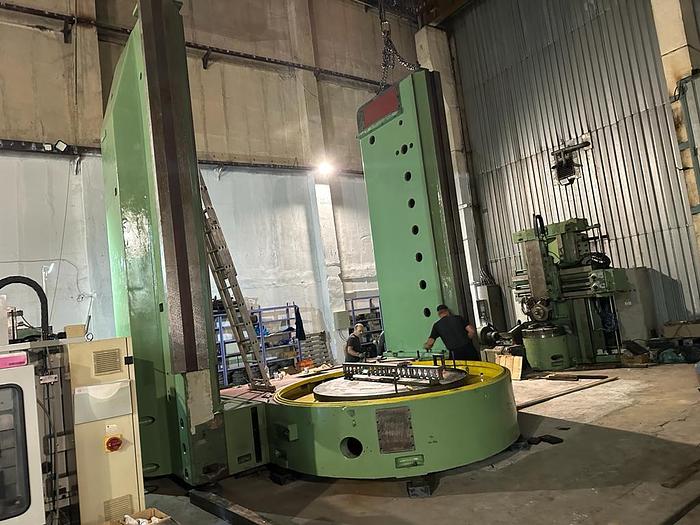

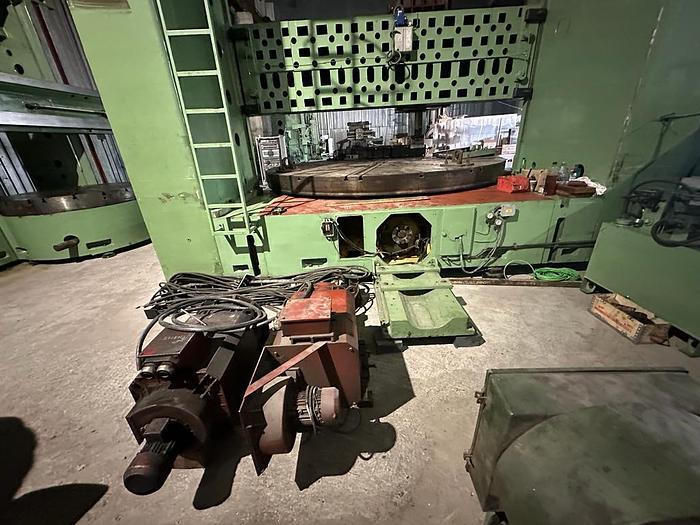

Lathe Vertical Turning CNC Titan SC43

Face plat dia : 4000 mm,

Max. swing : 4300 mm,

Max. swing height : 3300 mm,

Max. loading admitted : 18 tons,

Faceplate speed range : 1-92 RPM,

Feeds range 0.05-5 mm/rot,

Carriages rapid feeds : 2500 mm/min,

Main motor power 60 kW,

Machine weight : 63 tons.

The machine has following features:

- General revision of the machine;

- Regrinded guideways and plating of the counter guideways with Biplast/Turcite;

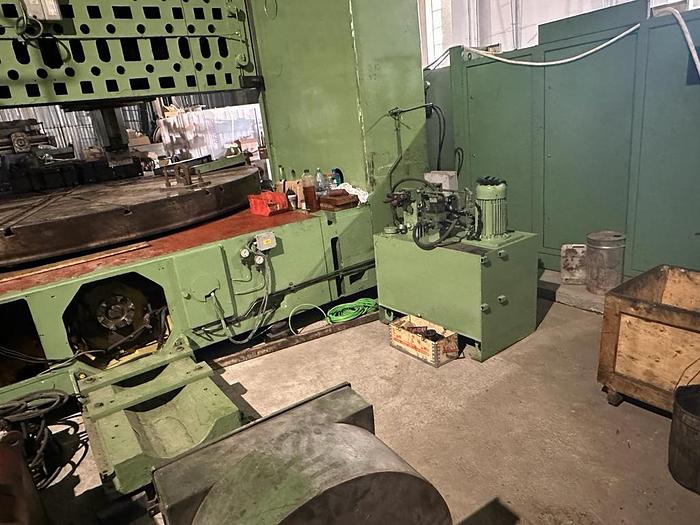

- the hydraulic unit with components made in EU

- the electrical equipment with parts made by Schneider , Shrack, Siemens

- main motor 60KW DC Siemens with Siemens driver

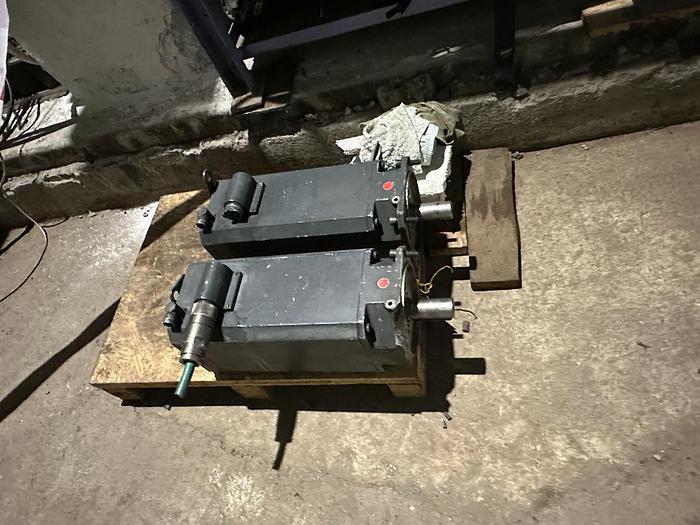

- the feeds drives motors – Siemens 20 Nm. - AC brushless

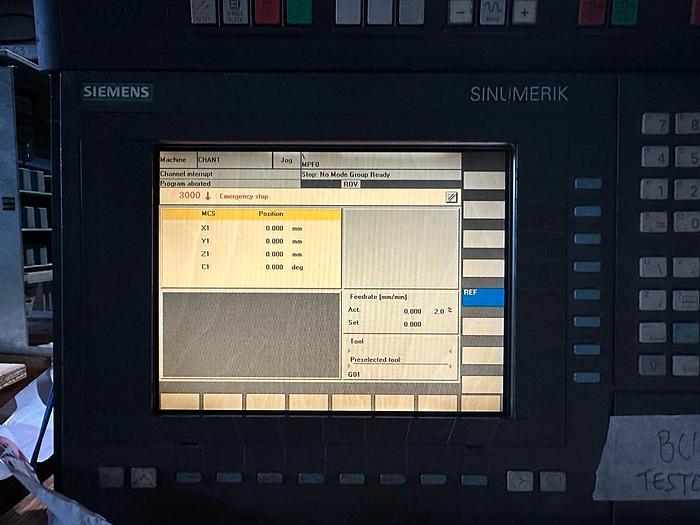

- the CNC controller – Siemens 840D

- new painting

The machine is equipped with one vertical turning head controlled by CNC.
