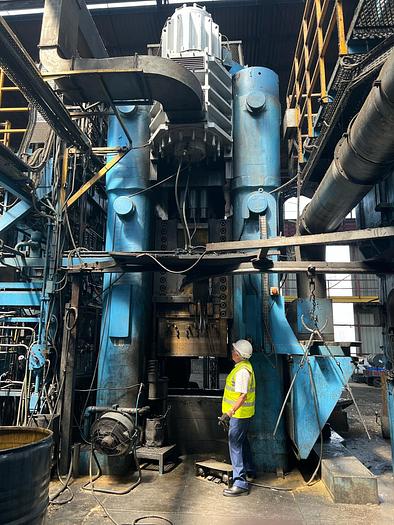

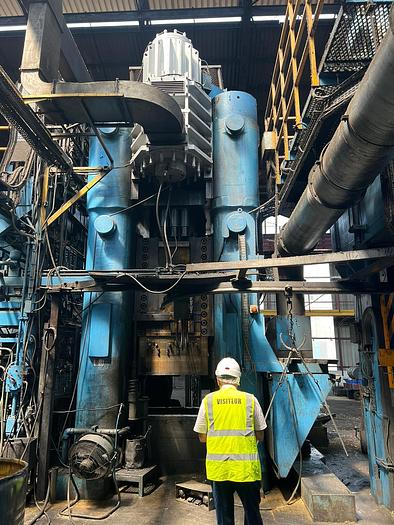

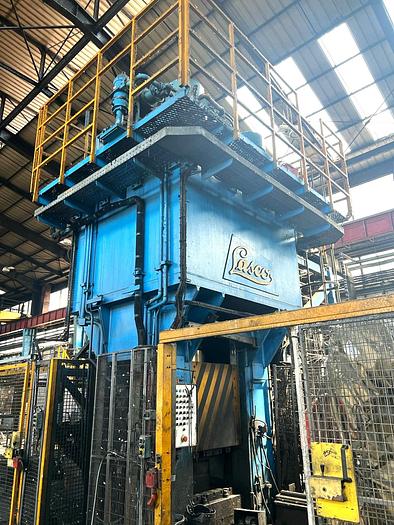

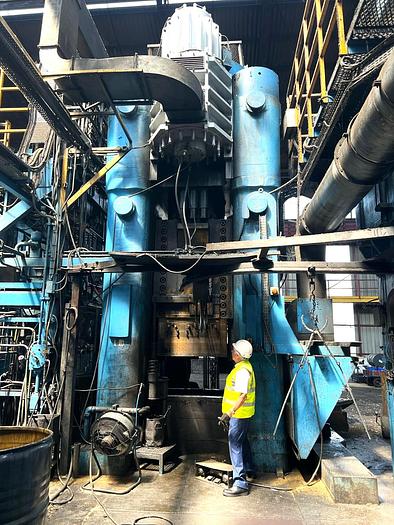

2500 tons Direct Drive Screw Press Lasco SPR2500

Capacity : 2500 tons,

Nominal press force : 25 MN,

Permanently permissible press force : 40 MN,

Impact blow force : 50 MN,

Gross energy SPR SERIES : 500 kj,

Ram stroke : 650 mm,

Stroke per minutes : 20,

Stroke to achieve the maximum forming energy : 550 mm,

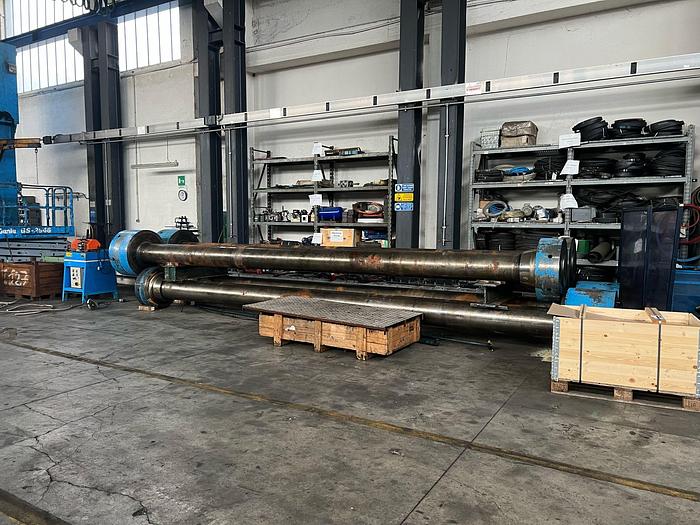

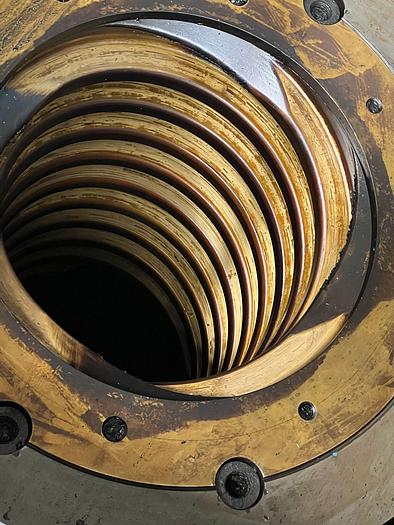

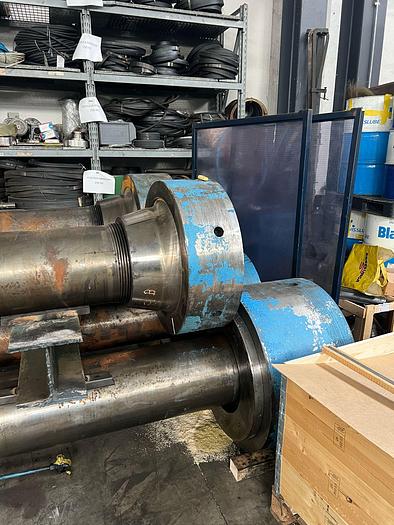

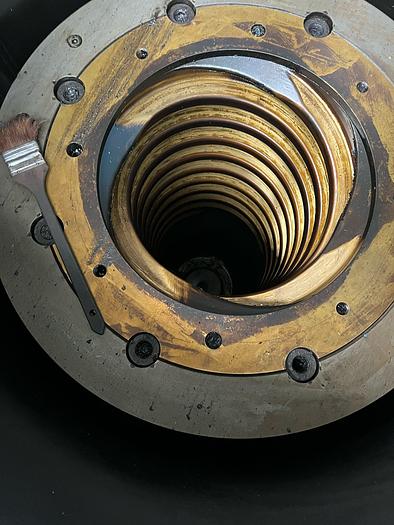

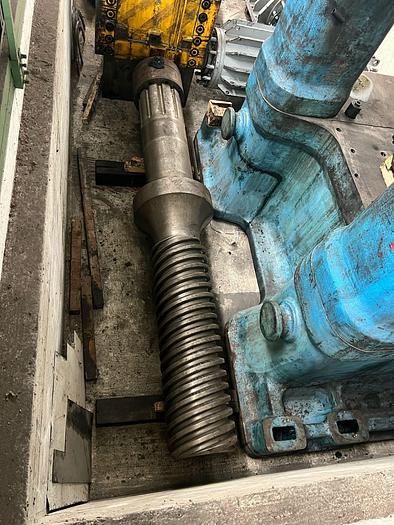

Screw diameter : 530 mm,

Ram width / ram depth : 1250/1400 mm,

Ma. distance press table /ram : 2000 mm,

Daylight between guides : 1500 mm,

Width between lateral windows : 800 mm,

Total height : 10 m,

Press total weight : 200 tons.

1. Control system & Motor Drive . GERMAN – GERMAN
2. Are the motors Servo Driven with cooling system? NO
3. Are pinions integral part of Rotor? CHECK DURING YOUR VISIT

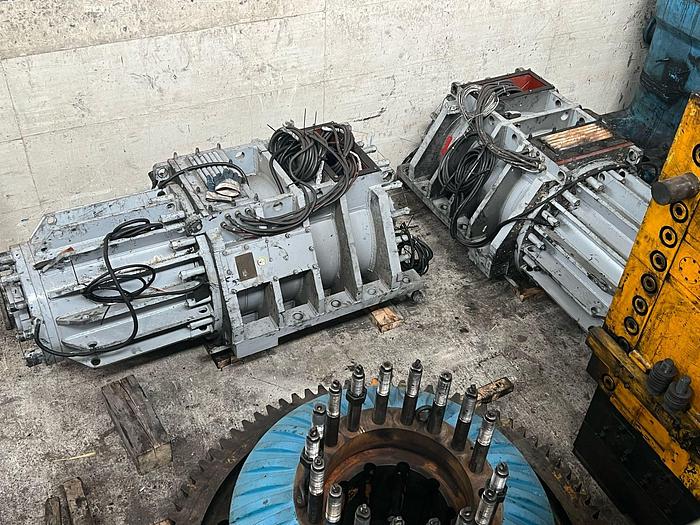

4. Main motor Output. 400 KW X 2
5. Is the Break mechanism regenerative type ? NO
6. Is slipping clutch in flywheel system available? YES

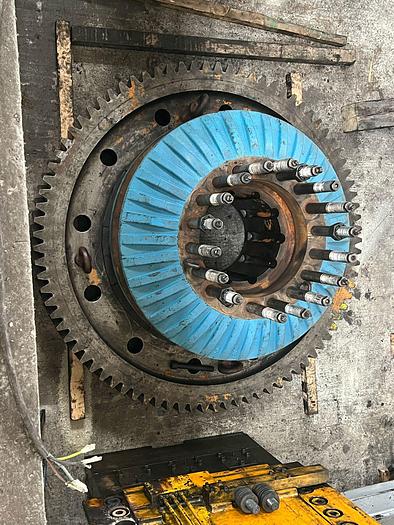

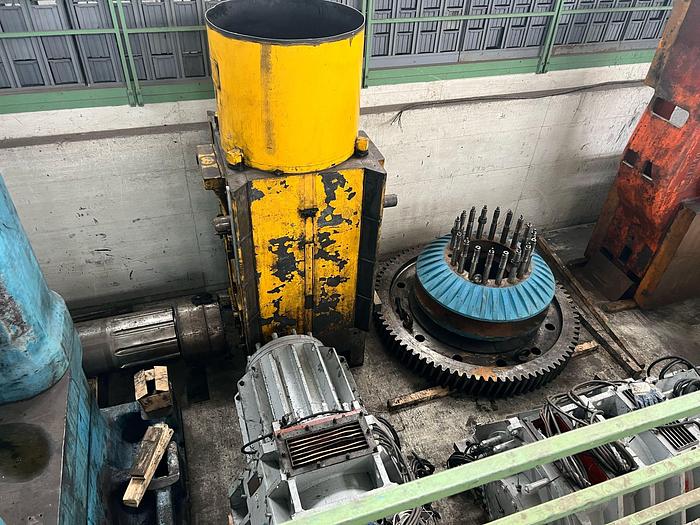

7. Brief about backlash elimination process between pinion & Main gear. NO CLEAR
8. Is feedback system through rotary encoder? NO
9. Ejector force & stroke length. 63 TN/10 TN – 250 MM/50MM
10. Crane Capacity & Height from floor to hook required for Ram & Screw Service. 20 TN / AROUND 10 MT
11.  Presetting of stroke program. YES
12. Is the Blow energy programmable for each single stroke between 5% & 100 %. YES
13. Control of peripheral equipment, for example die lubrication. YES
