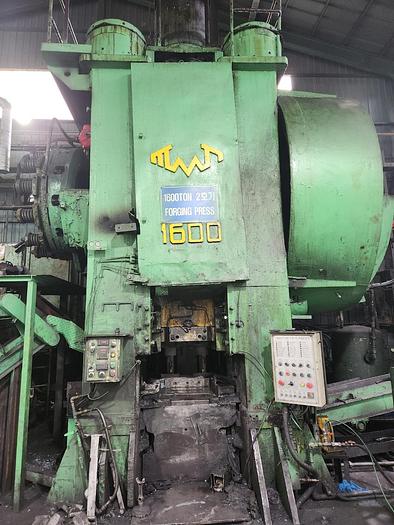

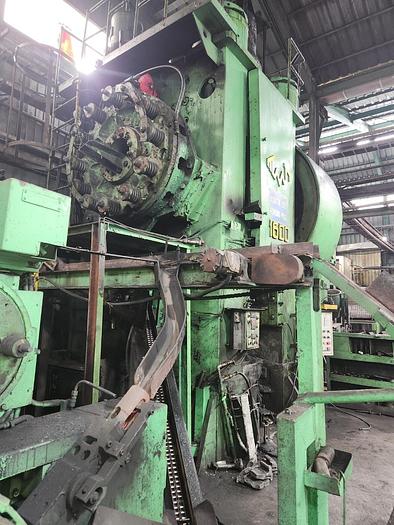

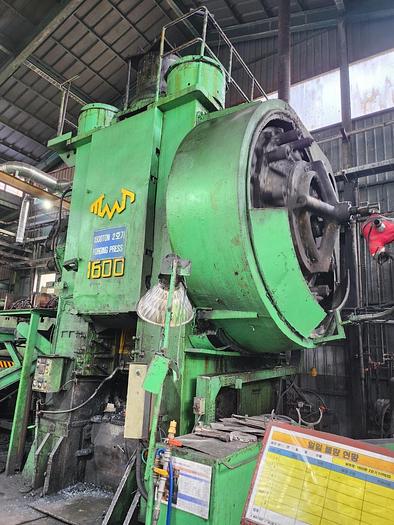

1600 tons Press Hot Forging Voronezh KB8042

Price

Contact us for price

orCall +919920651051

Specifications

ManufacturerTMP Voronezh Russia
ModelKB8042
Year1988
ConditionRefurbished
Stock NumberMA2563
Item conditionDismantled, Fully overhauled
Capacity tons1600

Description

Capacity : 1600 tons,

Stroke : 300 mm,

Stroke Per Min: 85

Shut height : 660 mm,

Ram adjustment : 10 mm,

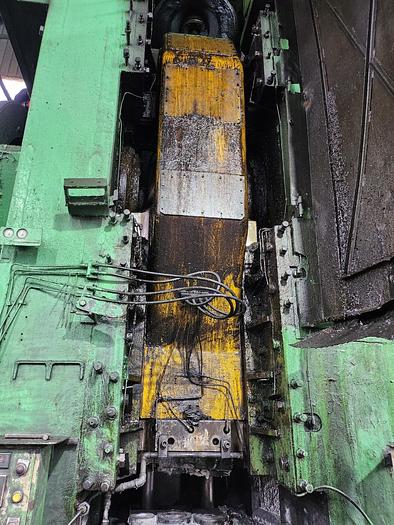

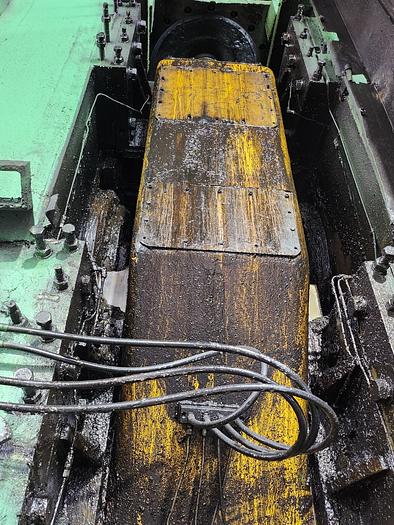

Ram dimensions : 860 x 910 mm,

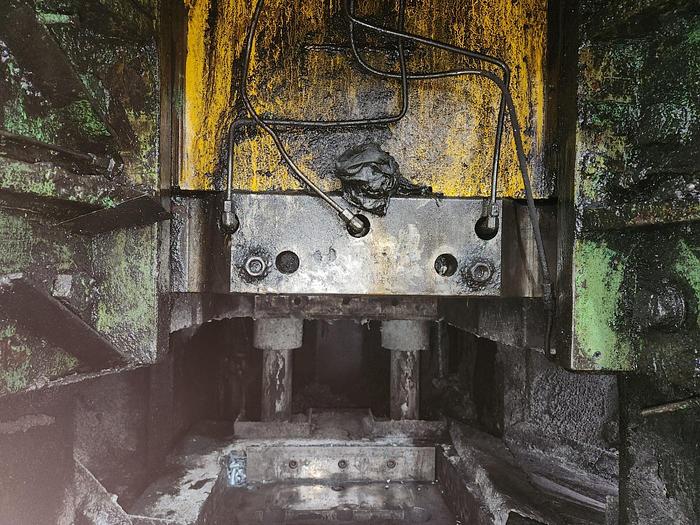

Bed dimensions : 1050 x 1200 mm,

Main drive motor power : 90 kW,

Dimensions of press : 4850 x 3515 x 5570 mm,

Press weight : 120 tons.

Modified upper part Ram adjustment by Motor, stroke 8 mm.

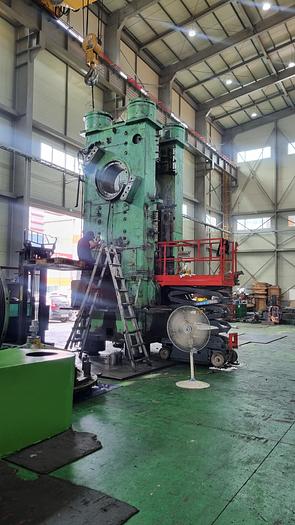

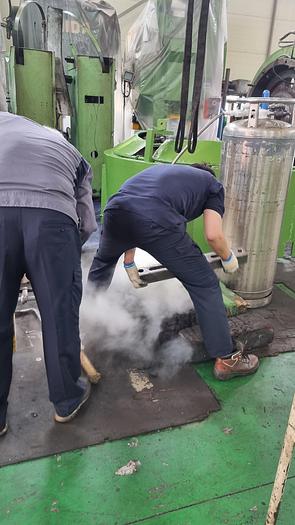

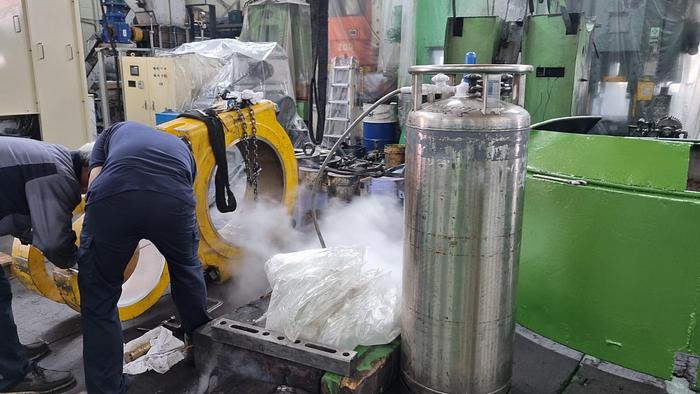

Forging Press - Details of Repairing :

Press, Separation/Eliminate/Moval : 1 set

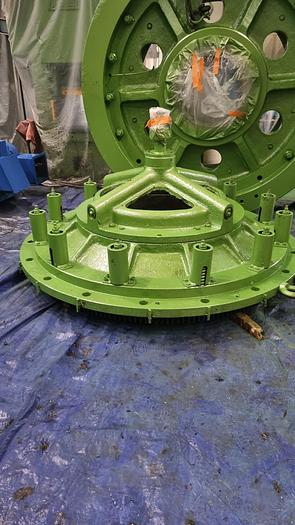

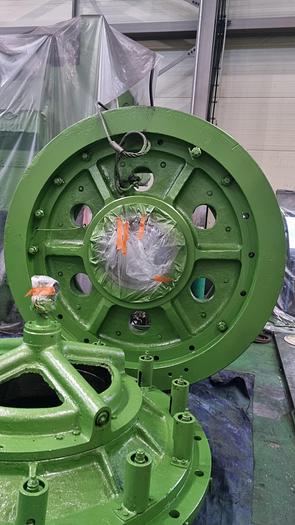

Clutch Disk, Brand New Replaced : 1 set

Clutch Lining, Brand New Replaced : 1 set

Break Disk, Brand New Replaced : 1 set

Break Lining, Brand New Replaced : 1 set

Lower KO Main Shaft Bush, Brand New Replaced : 1 set

Lower KO Hydraulic Cylinder, Brand New Replaced : 1 set

Con. Rod Upper & Lower, Metal, Brand New Replaced : 1 set

Con. Rod Pit man Bush, Brand New Replaced : 1set

V-Balt, Brand New Replaced : 1 set

Slide Ram Guide, Machining : 1 set

Brake, Clutch, Cylinder Packing, Brand New Replaced : 1 set

Oil pipe, Brand New Replaced : 1 set

Grease Pump Unit, Brand New Replaced : 1 set

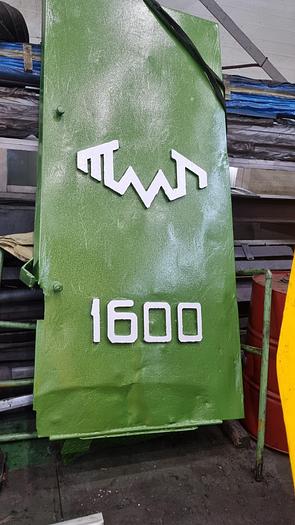

Press Painting : 1 set


1) Completed Repaired Bolster (Quick Die Changer-Hydraulic Type-1 set and used Bolster - 1 set)

2) Completed Repaired Main Motor - 1 ea and Used & repainted Main Motor.

3) Replaced Hydraulic Oil Line with new one.

4) Replaced Grease Pump & Motor with new one

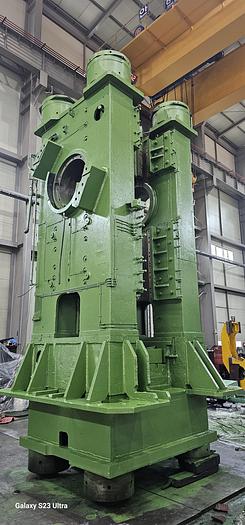

5) Slides of Main Frame & Ram shall be machined after receiving ordering

6) The surface of Bed Plate shall be machined for PARALLELISM
