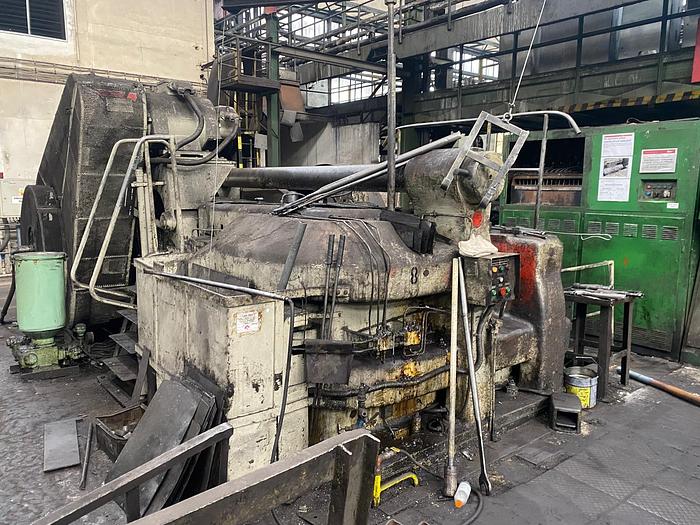

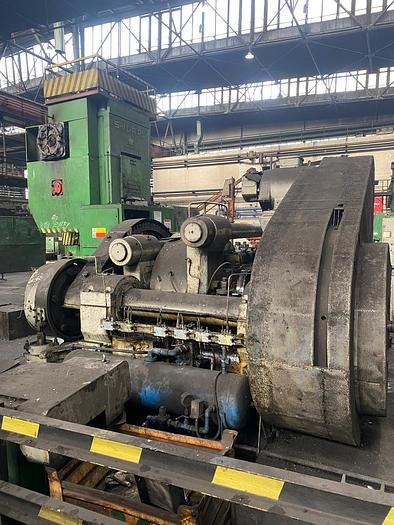

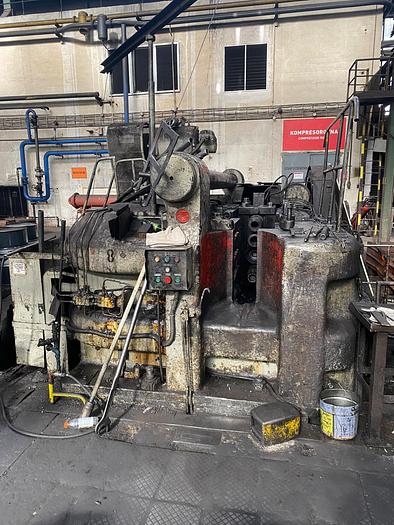

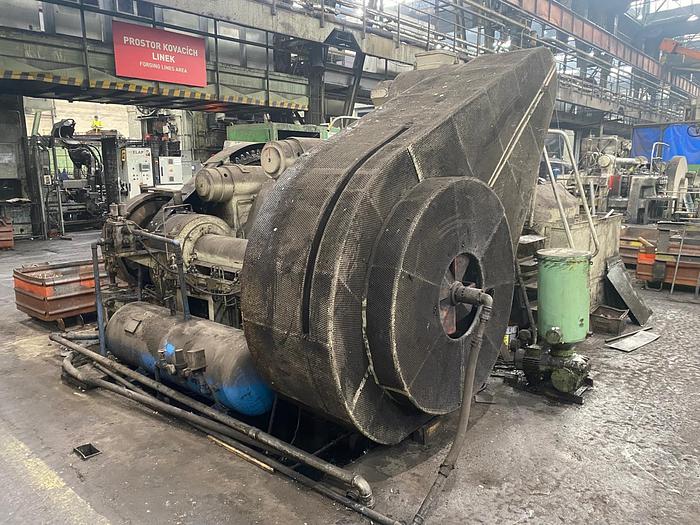

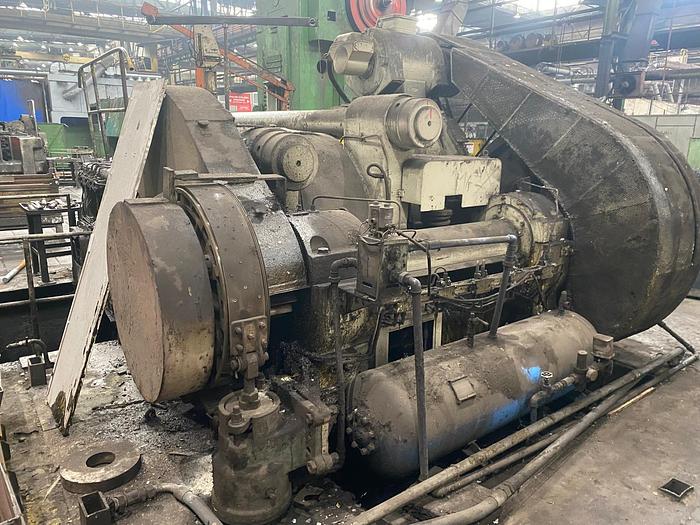

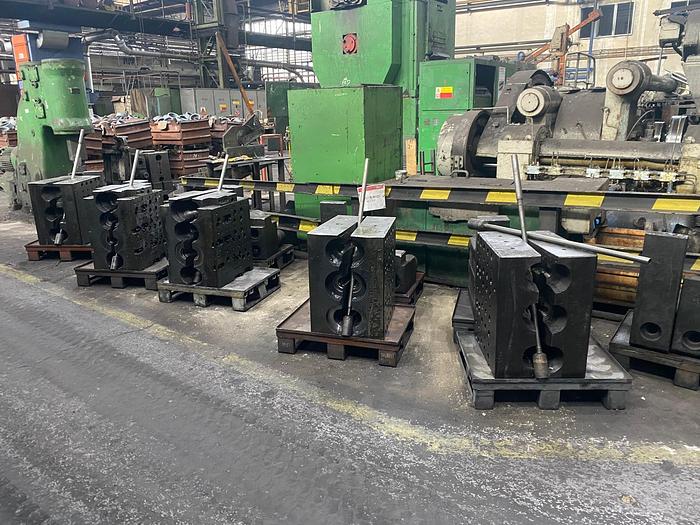

4 inch Upsetter Smeral LKH800

4"

Capacity : 800 tons,

Rated pressure of upsetting ram at end of its stroke : 8 MN,

Max. pressure of clamping ram generated for final die clamping : 8 MN,

Max. bar stock dia. : 100 mm,

No. of upsetting ram strokes : 35 min-1,

Total stroke of upsetting ram : 380 mm,

Working stroke of upsetting ram (with clamped dies) : 250 mm,

Stroke of clamping ram : 159 mm,

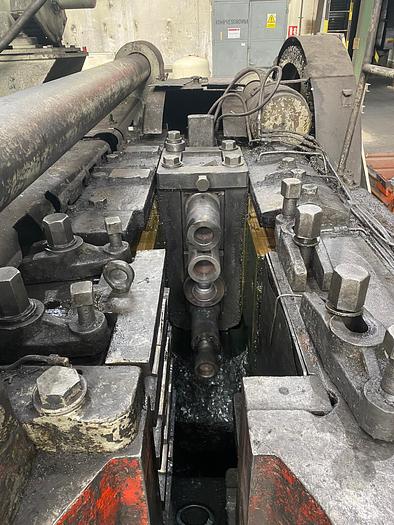

Die block dimensions :

-Front to back : 550 mm,

-Left to right (one half) : 210 mm,

-Height : 660 mm,

Output of main drive motor : 40 kW,

Sucked air consumption : 80 P.one clutch eng. cdm,

Press dimensions :

-Left to right : 3600 mm,

-Front to back : 5350 mm,

-Height above floor : 2340 mm,

-Total height : 3060 mm,

Press total weight : 83.1 tons.

Qty - 2 Nos.
