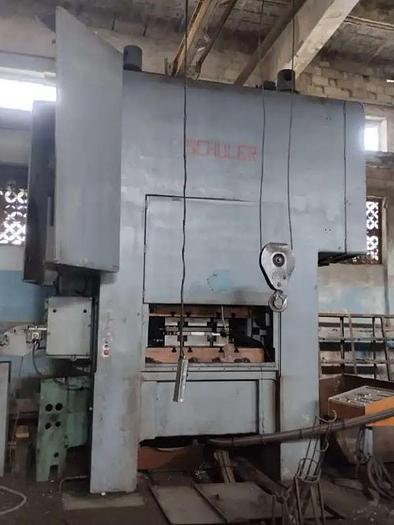

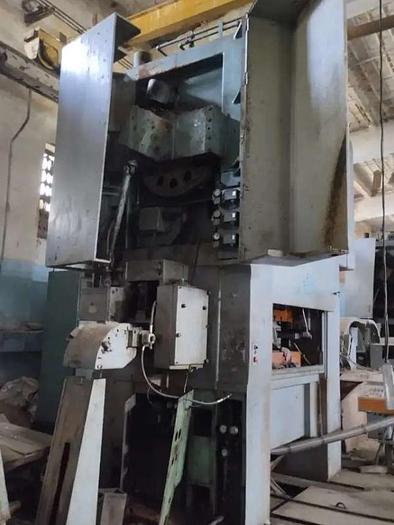

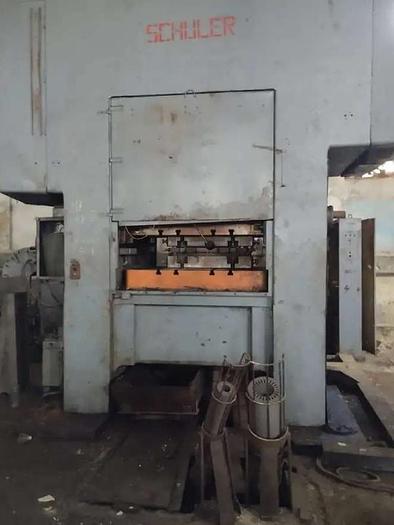

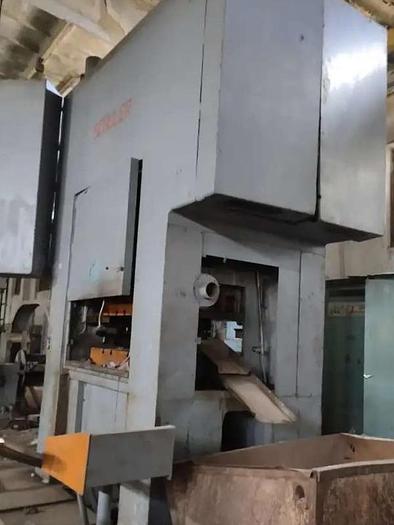

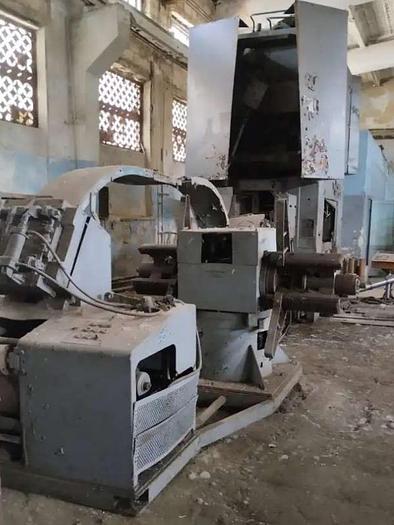

200 tons Press High Speed Blanking Schuler German

Price

Contact us for price

orCall +919920651051

Specifications

ManufacturerSchuler German
ModelA2-200-250
Year1989
ConditionUsed
Stock NumberMA2559
Item conditionGood working condition
Capacity tons200

Description

Automatic lines with high-speed presses 3 pcs

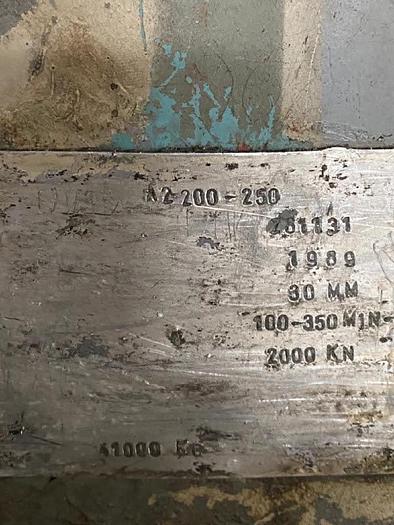

Specifications Press Schuler A2-200-250

Capacity : 200 tons,

Table size : 1350 x 1100 mm,

Slider size : 1250 x 900 mm,

Slider stroke : 30 mm,

Number of strokes per minute : 100-350 per minute,

Slider stroke : 4,

Distance between columns : 1450 mm,

Distance between slider and table : 400 mm,

Table thickness : 180 mm,

Table slots : 1160 x 360 mm,

Cushion stroke : 4 mm,

Cushion load capacity : 20 tons,

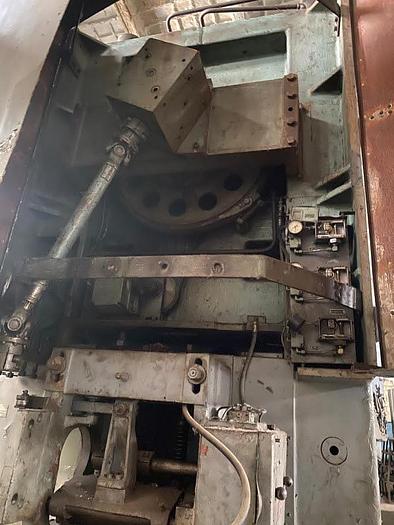

Main drive : 30 kW,

Press weight : 41 tons.

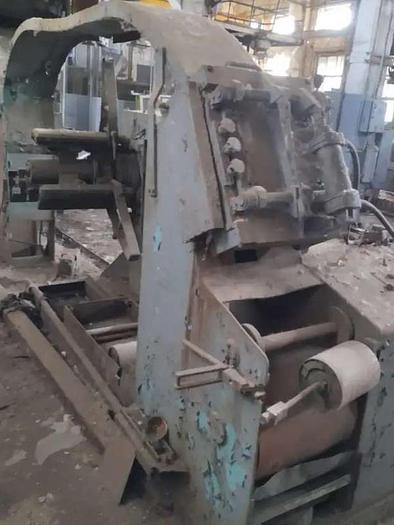

Feeding and straightening device:

Max. strip width : 360 mm,

Max. inner diameter of the coil strip : 1200 mm,

Strip inner diameter : 500…610 mm,

Max. strip thickness : 0.5 mm,

Stroke of top rolls,: 6 mm,

Max. roll weight,: 3 tons,

Roll unwinding speed : 0.1…60 m/min.,

Motor : 3 kW,

Weight : 2.2 tons.


Equipped with:

A2 HR 360-2 unwinder,

Feeder W8-250,

Shearing unit AS 3 250,

Stacking device SV 4.


Quantity - 3 pcs
