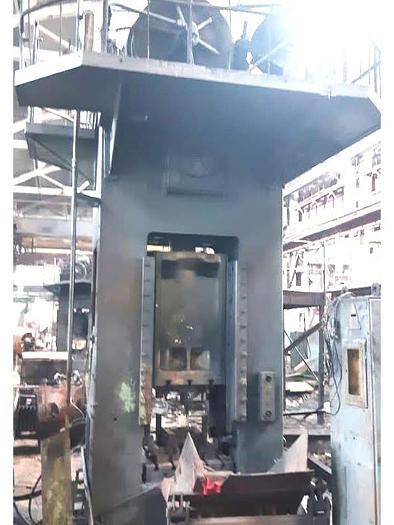

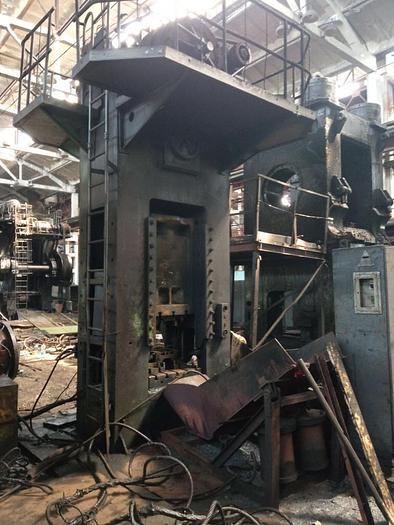

250 tons Press Trimming TMP Voronezh Russia KB9534

Capacity : 250 tons,

Ram stroke : 280 mm,

Ram continuous stroke number in minute : 32,

Shut height : 390 mm,

Adjustment of distance between table and slider : 140 mm,

Max. distance between table and slider : 560 mm,

Ram size : 650 x 670 mm,

Table size : 850 x 850 mm,

Aperture in table : 500 x 500 mm,

Bolster thickness : 140 mm,

Main motor : 28 kW,

Dimensions :

Length : 3260 mm,

Width : 2970 mm,

Height : 5180 mm,

Machine weight : 23.3 tons.
