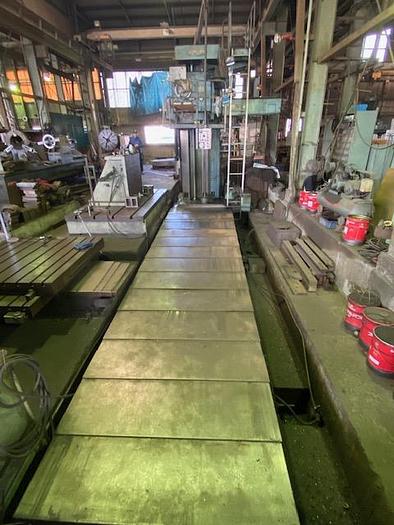

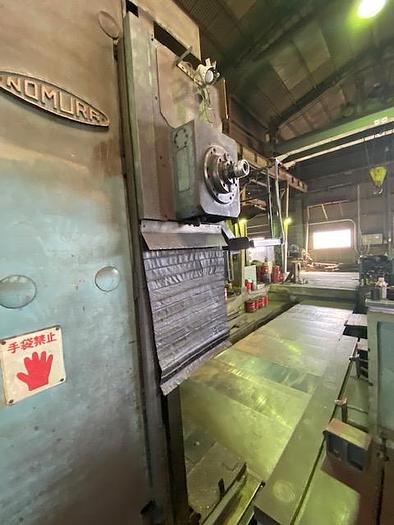

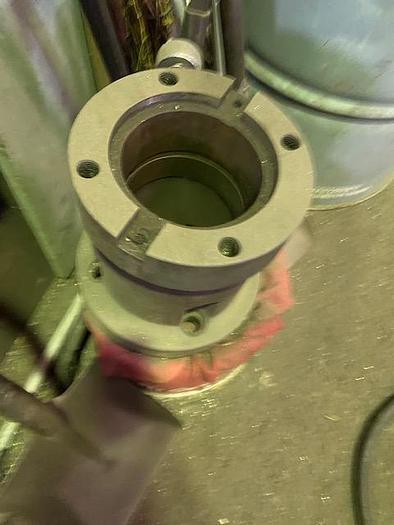

Borer Horizontal Floor Type Nomura JFB-130Q

Main Shaft Diameter : 130 mm,

Taper Hole Diameter : 215 mm,

Quill Diameter : 320 mm,

Main Spindle Vertical Travel : 700 mm,

Quill Vertical Travel : 300 mm,

Spindle & Quill Max Vertical Travel : 1000 mm,

Range of Spindle Speed & Stages : 8 - 800 rpm (18 stages),

Range of Spindle Quill Feeds

Low Speed Range : 0.7 - 35 mm/min,

High Speed Range : 35 - 1750 mm/min,

Rapid Feed of Boring Spindle & Quill : 1750 mm/min,

Range of Headstock and Column Feeds : 0.7 - 1750 mm/min,

Low Speed Range : 0.7 - 35 mm/min,

High Speed Range : 35 - 1750 mm/min,

Rapid Feed of Headstock & Column : 3000 mm/min,

Headstock Vertical Travel : 2000 mm,

Column Horizontal Travel : 4000 mm,

Spindle maximum Torque : 250 Kg-m,

Machine Dimensions : 4000 x 7400 x 5900 mm,

Machine Weight : 22 tons,

Power : 200/220V,

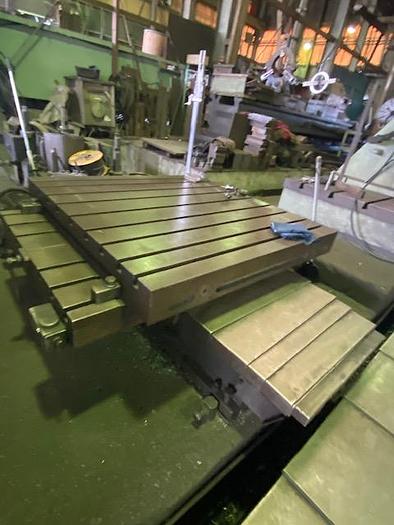

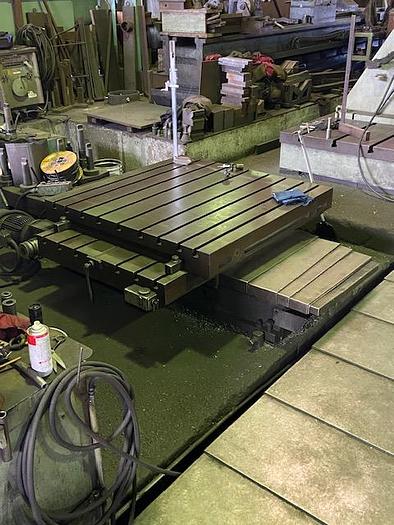

Rotary Table

Working Surface : 2000 x 2000 mm,

Table Travel along the bed : 1200 mm,

Transversal Feed Rate : 2.8-8-22.4 mm/min,

Transversal Rapid Traverse Rate : 1245 mm/min,

Table Load Capacity : 20 tons.
