Rolling Mill Chinese

Model : smx140

Incoming material requirements :

Material : aluminum and aluminum alloy

Material strength : ab = 6 - 25kgf / cm2,

Ingot  thickness : 206 - 400 mm,

Ingot width : 600 - 1250 mm,

Ingot length : 2000 - 5500 mm,

Ingot bending : < 1 mm / 1000 mm,

Primary milling depth: 3 - 10 mm (each side),

Finished product specification : the maximum thickness is 300 mm, and the width and length are the same as those of ingot

Milling feed speed : 0. 5 - 0.75 m / min,

Rapid feed speed : 6m / min,

Maximum milling speed : 1500 m / min,

Surface roughness after milling : RA < 3.2 µ M,

Unevenness of Upper and lower surfaces after milling : < 0.2 mm / 1000 mm,

Maximum Production capacity : 4 pieces / hour,

Unit working mode : irreversible,

Cutter head structure : plate cutter head with diameter of 1.4 m,

Main motor power : 110 kW,

Spindle speed : 350 r / min,

Axial feed stroke of spindle (one side) : 100 mm,

Bed size : 16.3 m X 0.86 m X 0.88 m (Lx W x H),

Height from spindle center to ground : 1.15 M,

Distance from spindle center to worktable :  0.825 M,

Working Pressure of lubrication system : 0.2 MPa, maximum flow : 10L / min,

Manufacturer : Xi&apos:an aeroebgine (Group) Co., Ltd.

Main Technical Parameters :

Rolling material : aluminum and aluminum alloy : 1000, 3000, 5000, 6000, 8000 Series.

Incoming specification :

ingot thickness : 250-400 mm,

ingot width : 700-1250 mm,

ingot length : 4000 - 5000 mm,

Maximum ingot weight : 7000 kg,

Product specification :

Plate : hot rolled plate thickness : 6-20 mm,

width of hot rolled plate : 600 mm- 1380 mm,

Length of hot rolled plate : 500 mm - 2000 mm,

Height of hot rolled plate stack : up to 800 mm,

Weight of hot rolled plate stack : maximum 7 tons.

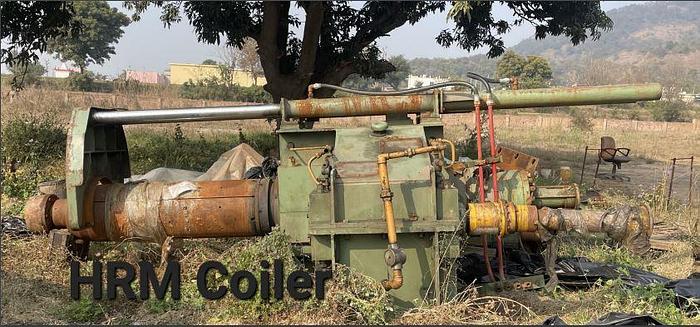

Coil : thickness : 6-12mm,

Width : 600-1380mm,

Inner diameter : dia 510 mm,

Outer diameter : dia 1500 mm (maximum),

Coil weight : maximum : 7000 kg,

Rolling speed : 0 / 40 / 120,

Maximum opening of rolling mill : 400mm,

Rolling force : maximum 12000 kn,

Main motor : z710-3p 1450 kw,

Power supply : AC380V, 50 Hz, three-phase, AC220V, 50 Hz, single phase

Manufacturer : Shaanxi calendering equipment factory.

Includes

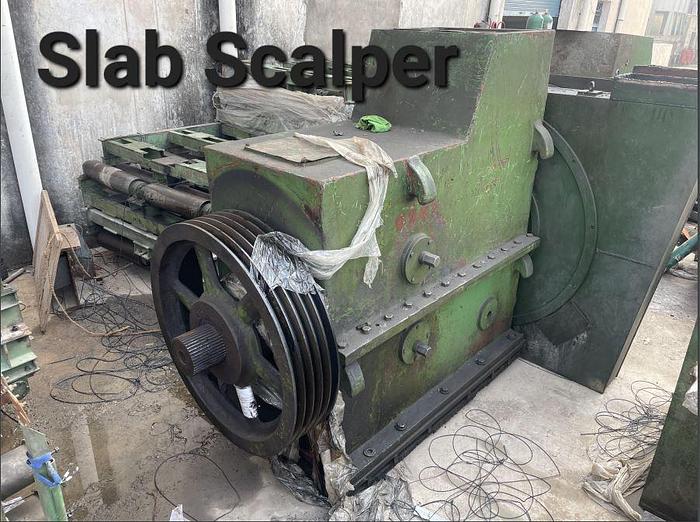

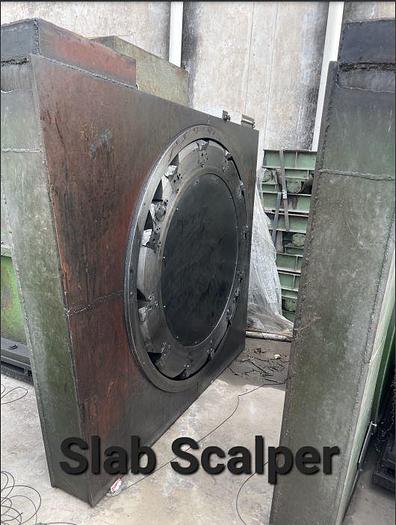

-Scalper (Double side milling machine)

-Bandsaw

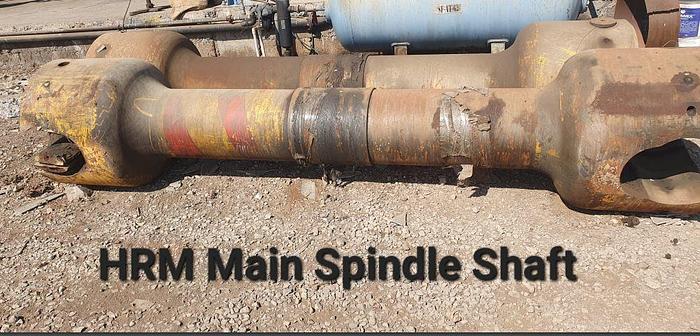

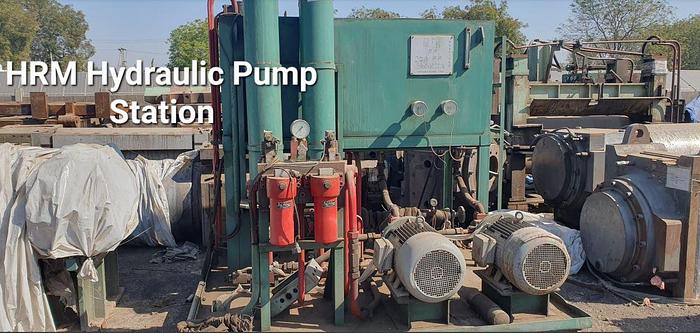

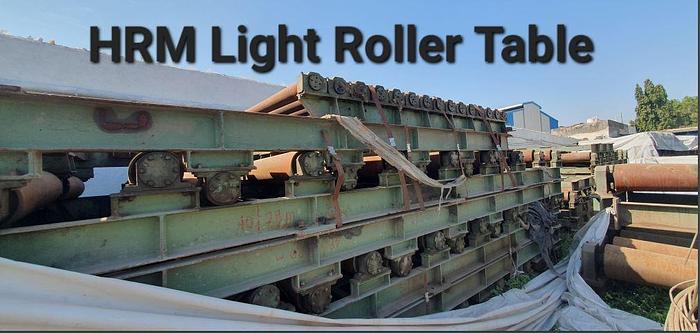

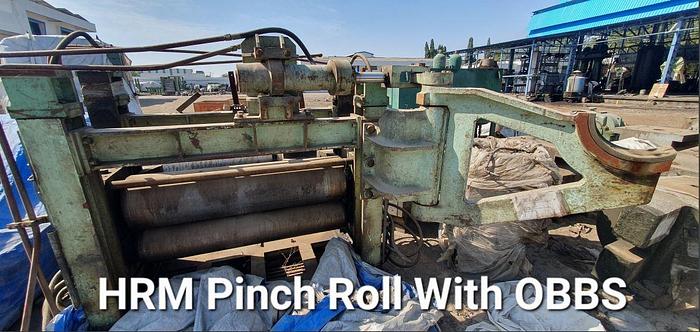

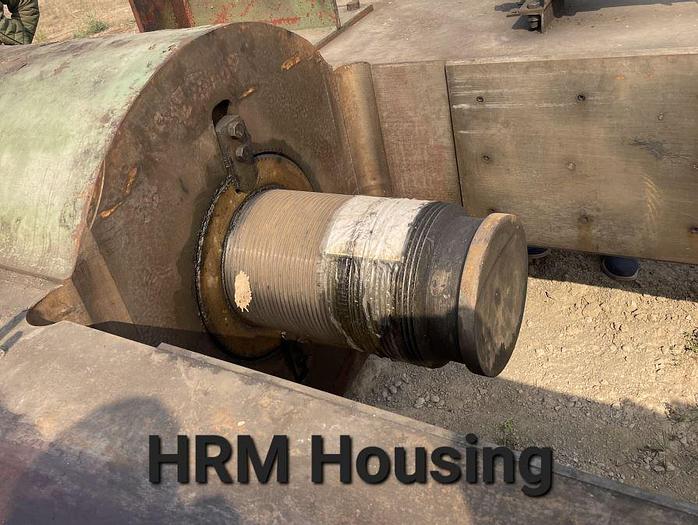

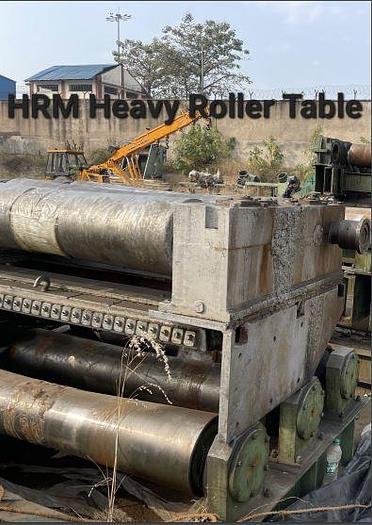

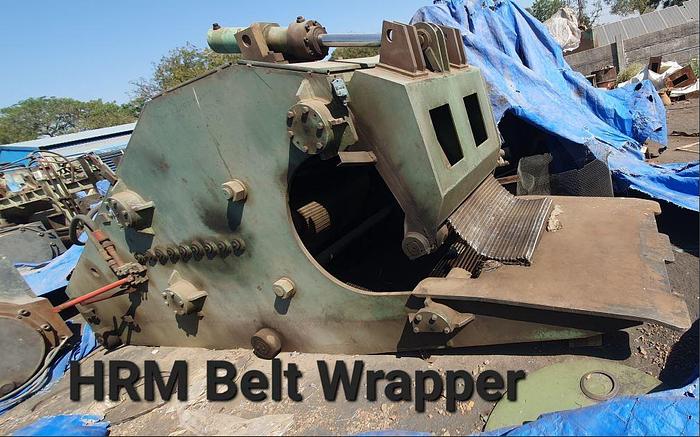

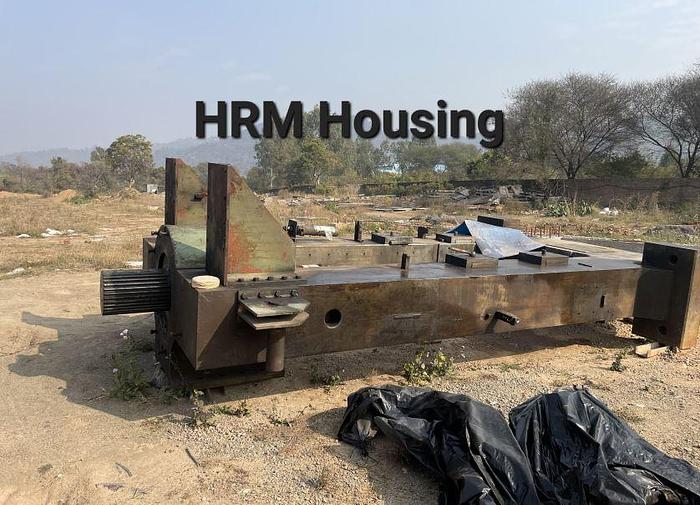

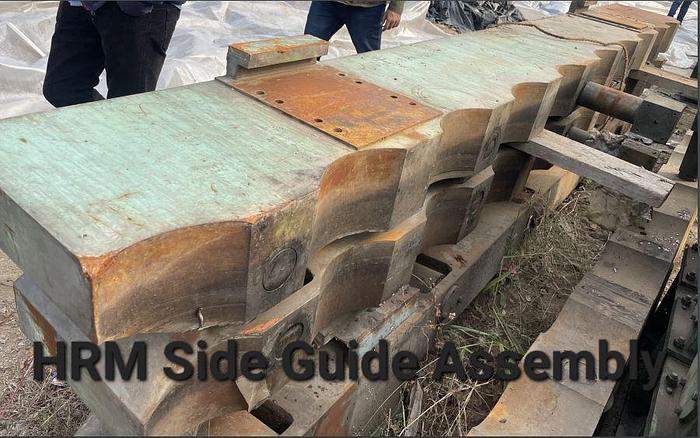

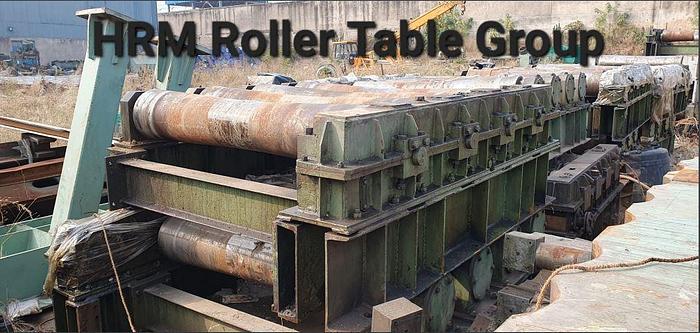

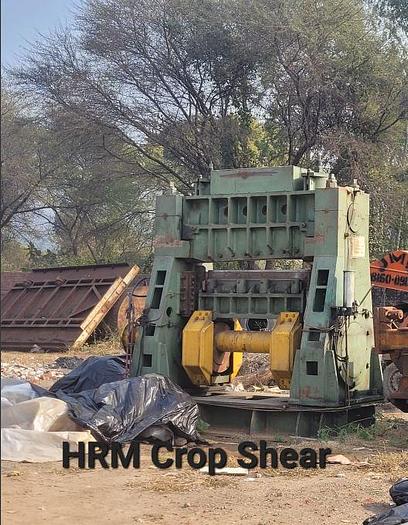

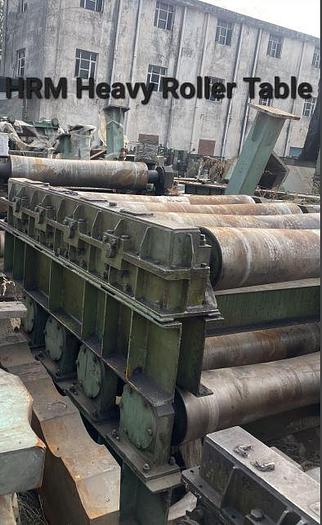

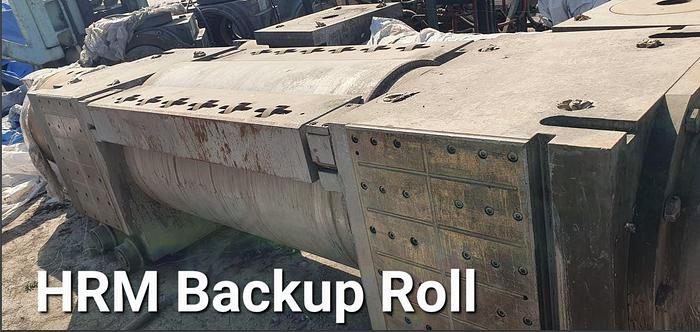

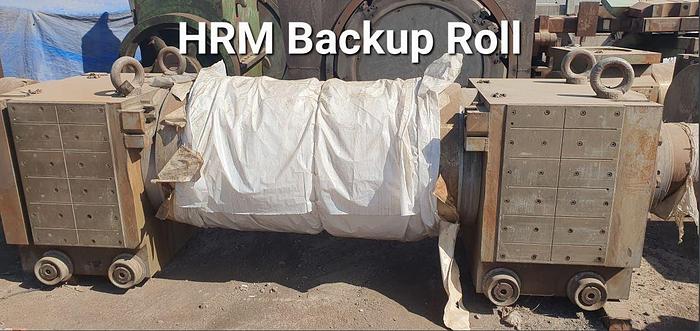

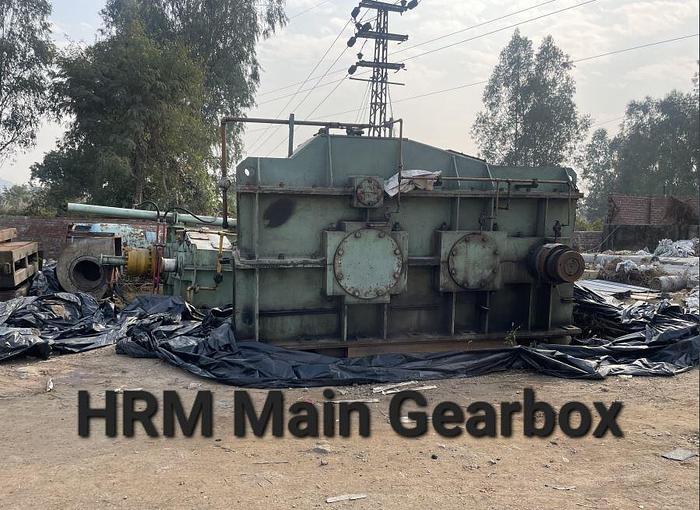

-HRM

Mill upgraded BY CNPT all drawings and electrical available.

Electric panels and main mill motor of HRM.

CMPT has modernized in 2010.

Full new electricals.
