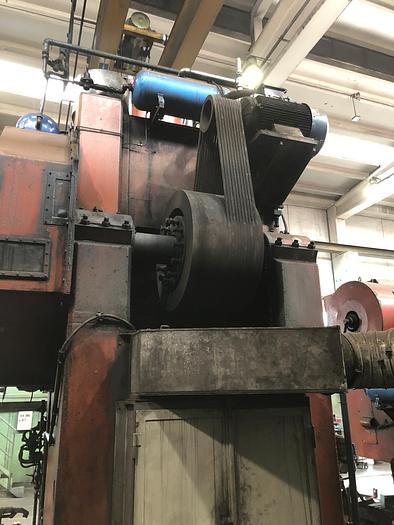

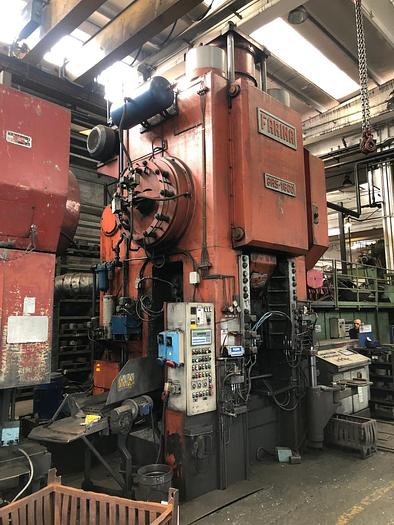

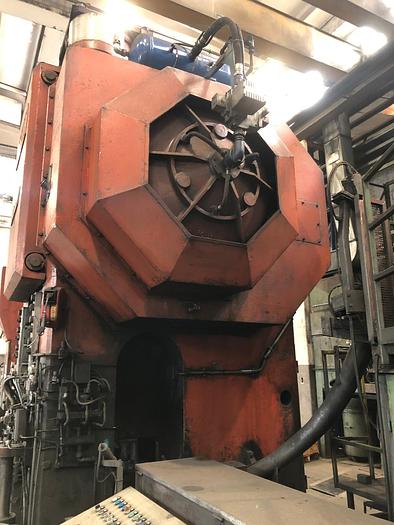

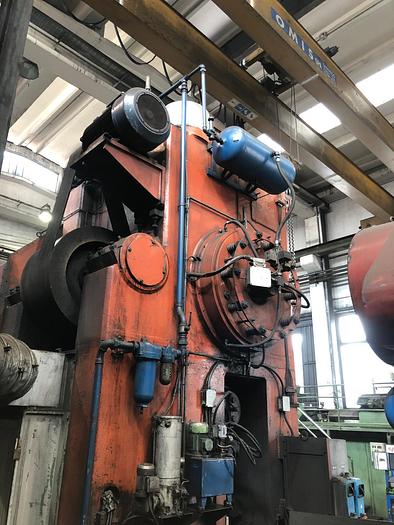

1600 tons Hot Forging Line Farina
Specifications
| Manufacturer | Farina |
| Condition | Used |
| Stock Number | MA2541 |
| Item condition | Good Condition |
| Capacity tons | 1600 |
Description
Capacity : 1600 tons,
Slide stroke : 250 mm,
Continuous stroke per minute : 82 n°,
Single stroke per minute : 18 n°,
Die space : 755 mm,
Die space adjustment : 18 mm,
Table dimensions :
L to r : 1000 mm,
F to b : 1200 mm,
Ram dimensions :
L to r : 850 mm,
F to b : 1100 mm,
Upper knockout :
Stroke max : 19 mm,
Pushers : 2 n°,
Lower knockout :
Stroke max : 80 mm,
Pushers : 3 n°,
Main motor Power : 75 Kw.
160 tons C-FRAME Trimming Press, Barnaul Russian Make
Capacity : 160 tons,
Adjustable slide stroke :
Maximum : 160 mm,
Minimum : 25 mm,
Continuous stroke per minute : 70 n°,
Single stroke per minute : 28 n°,
Die space : 480 mm,
Die space regulation : 120
Table dimensions :
L to r : 1000 mm,
F to b : 670 mm,
Hole dimensions in the table :
L to r : 480 mm,
F to b : 320 mm,
Slide dimensions :
L to r : 460 mm,
F to b : 580 mm,
Main motor power : 19 kw,
Overall dimensions :
L to r : 2340 mm,
F to b : 2100 mm,
Height above floor level : 3650 mm,
Press total weight : 14 tons

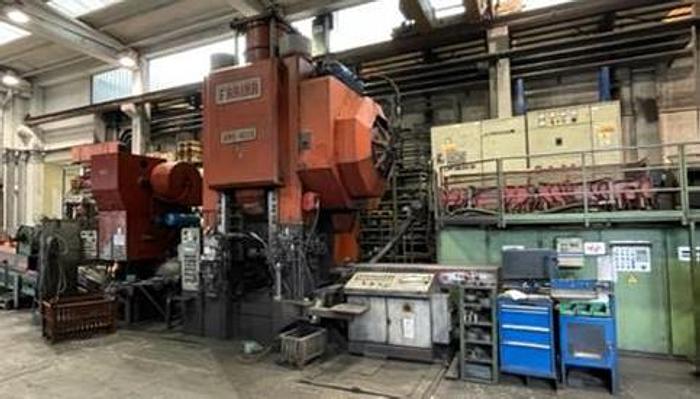

The 1600 tons farina press line is composed by:
1) Billet Loader
2) 1000 KW ELIND Induction Heater
3) Cartesian Robot Loader Farina
4) 1600 tos Forging Press Farina
5) Hydraulic Cassette Type Bolster
6) 160 tons Trimming Press Barnaul
